ISHIDA IGB-60 - Replacement of Main Board; IGB Series

Manual No. 085-3435-07 38/45 IGB/IGX Series (Overseas Specifications) Service Manual
5

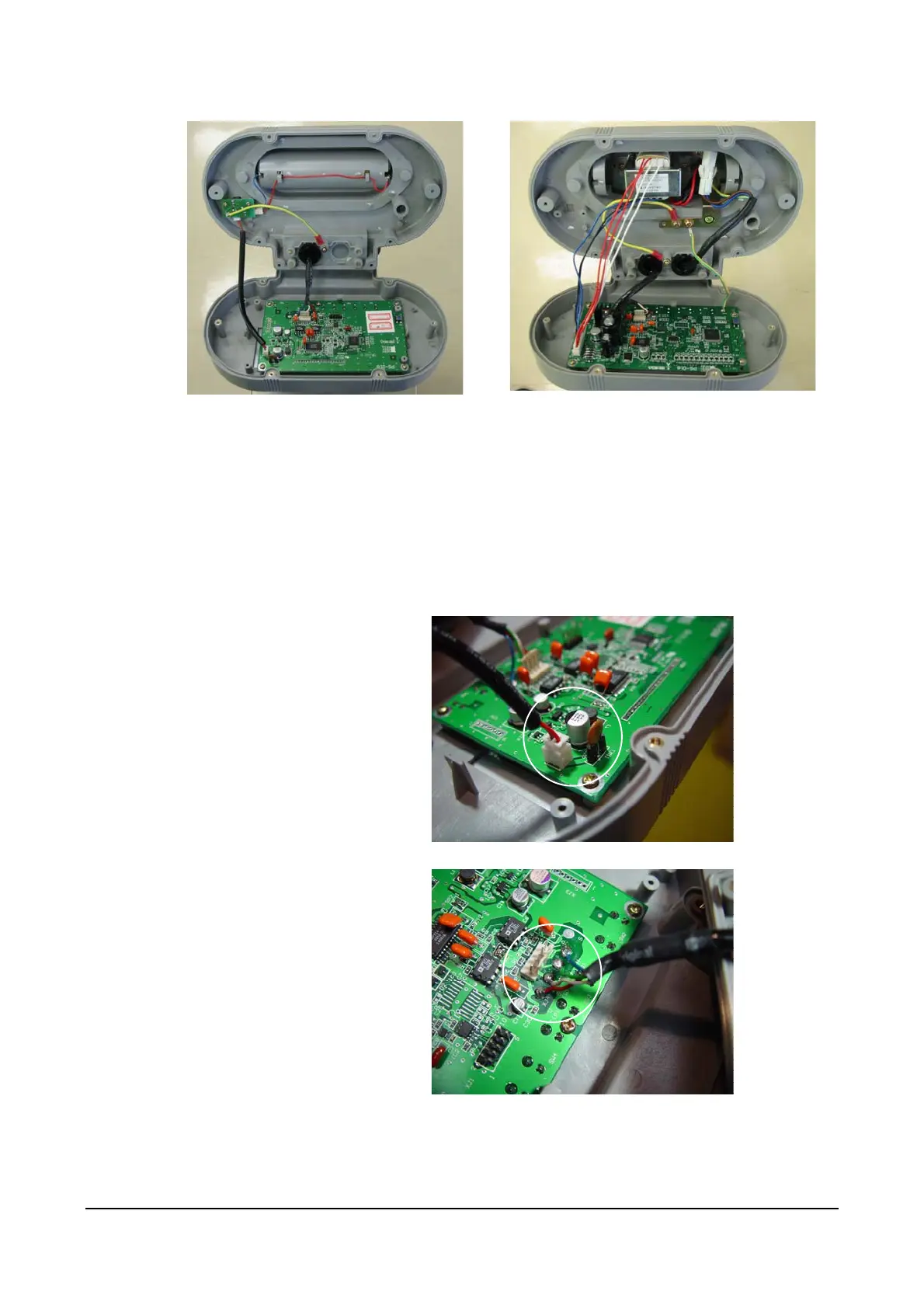

Open the front and rear cases.
IGB Series
IGX Series
Note: Reverse the procedure to re-assemble the display unit, then affix a new Void Seal
(Part No.: 040-9585-01 Size:
φ 21)
4.2 Replacement of Main Board
4.2.1 IGB Series
(1) The procedure for opening the Front and Rear Cases is described in the previous section.
(2) Main Board (PS-018)
Extract the cable from the XJ2
connector.
Desolder the four lead wires of the
Load Cell cable.
