Manual No. 085-3435-07 40/45 IGB/IGX Series (Overseas Specifications) Service Manual

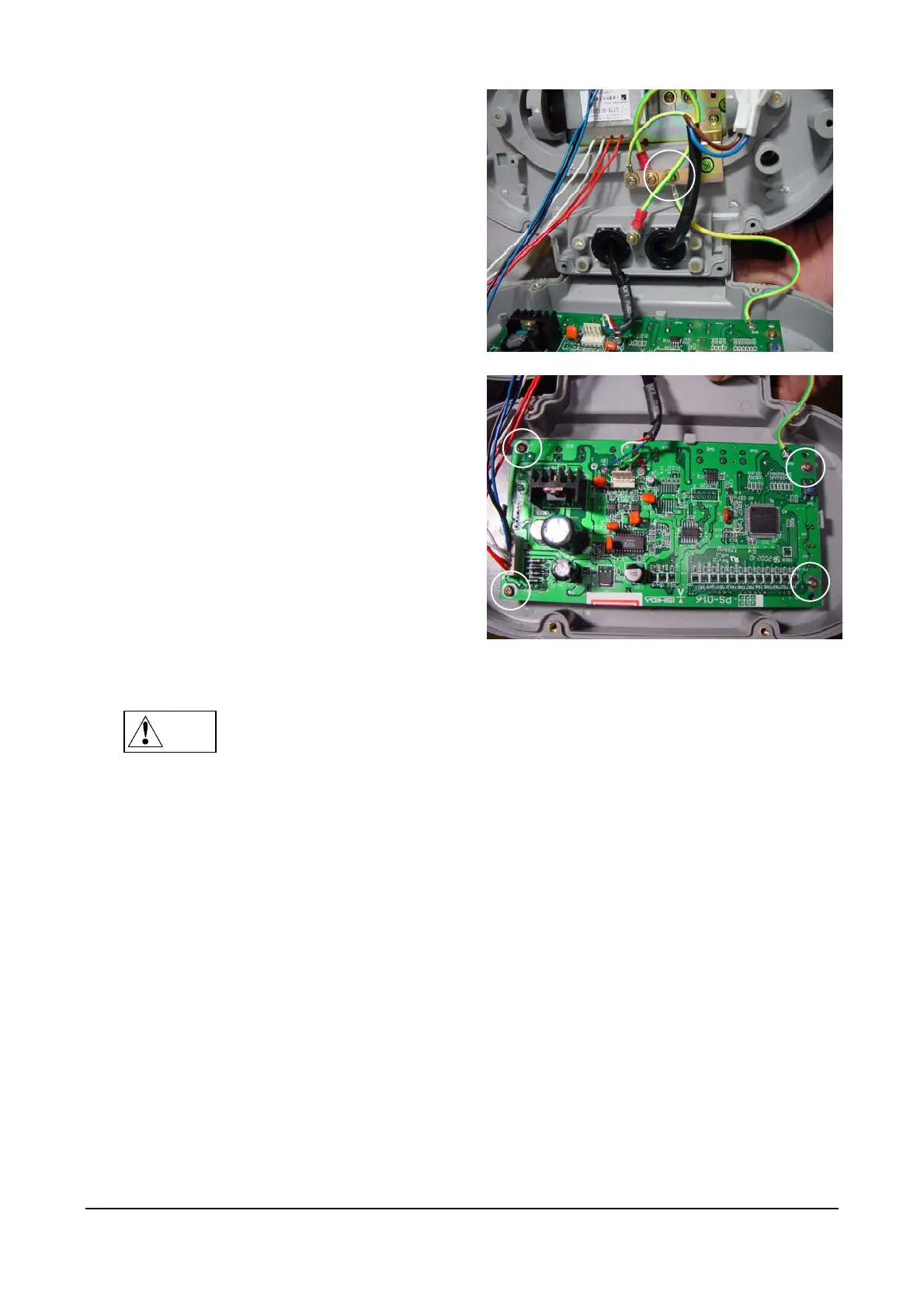

Remove the screw holding the grounding
cable to the rear case
Remove the four screws holding the main
board
Reverse this procedure to install a new main board.
Note
After installing a new main board, carry out RAM Clear in C3 mode, adjust the scale
and set the user operation setup and program modes.
To Next Page
