10.3. Dimensions
The meter can be factory-fitted with either a short or long terminal cover.

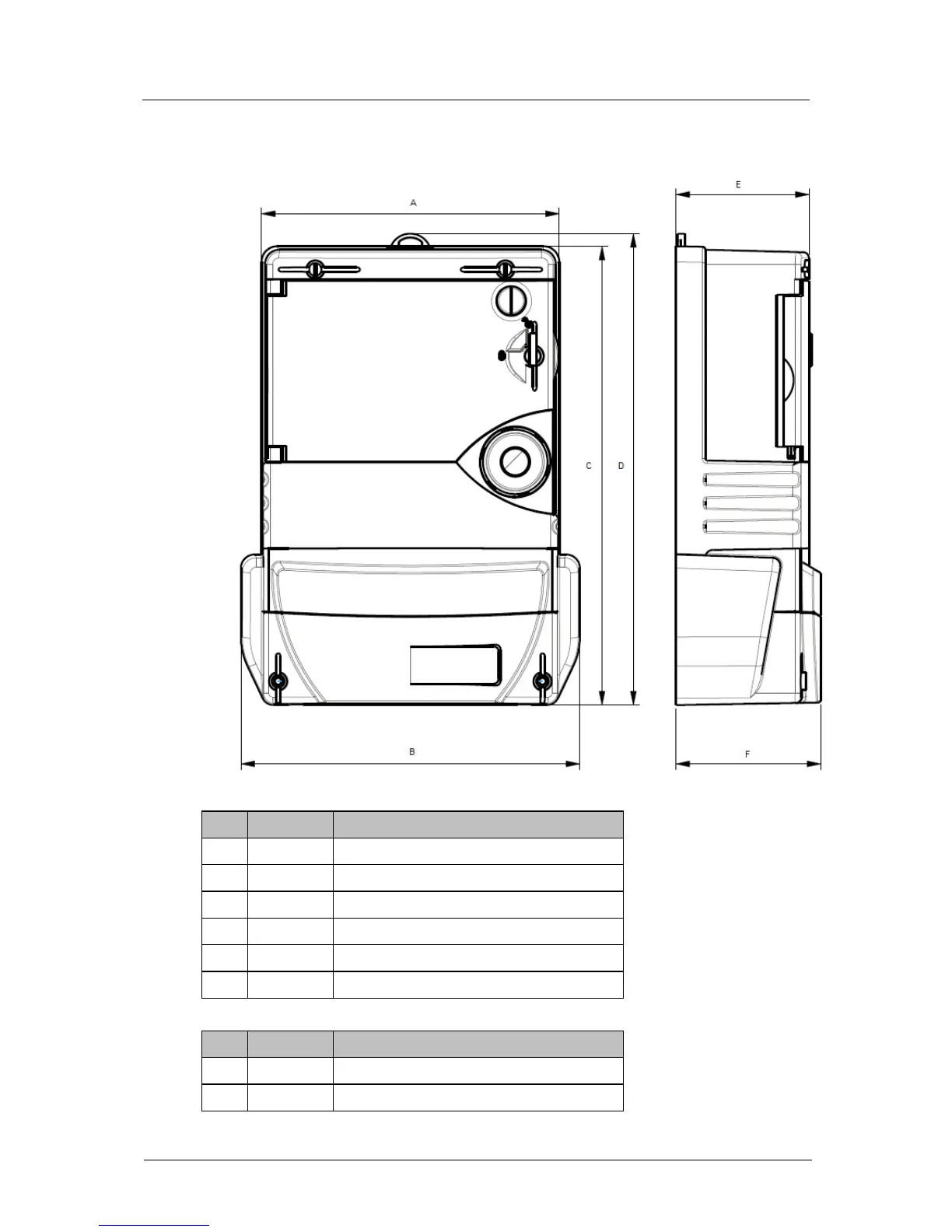

Meter dimensions - short terminal cover
Item
Dimension
Description
A
152
Meter body width
B
173
Terminal cover width
C
234
Meter length including terminal cover
D
241
Overall length, hanging bracket fully retracted
E
68
Meter body depth
F
74
Terminal cover depth
Meter dimensions - long terminal cover
Item
Dimension
Description
C
294
Meter length including terminal cover
D
301
Overall length, hanging bracket fully retracted
