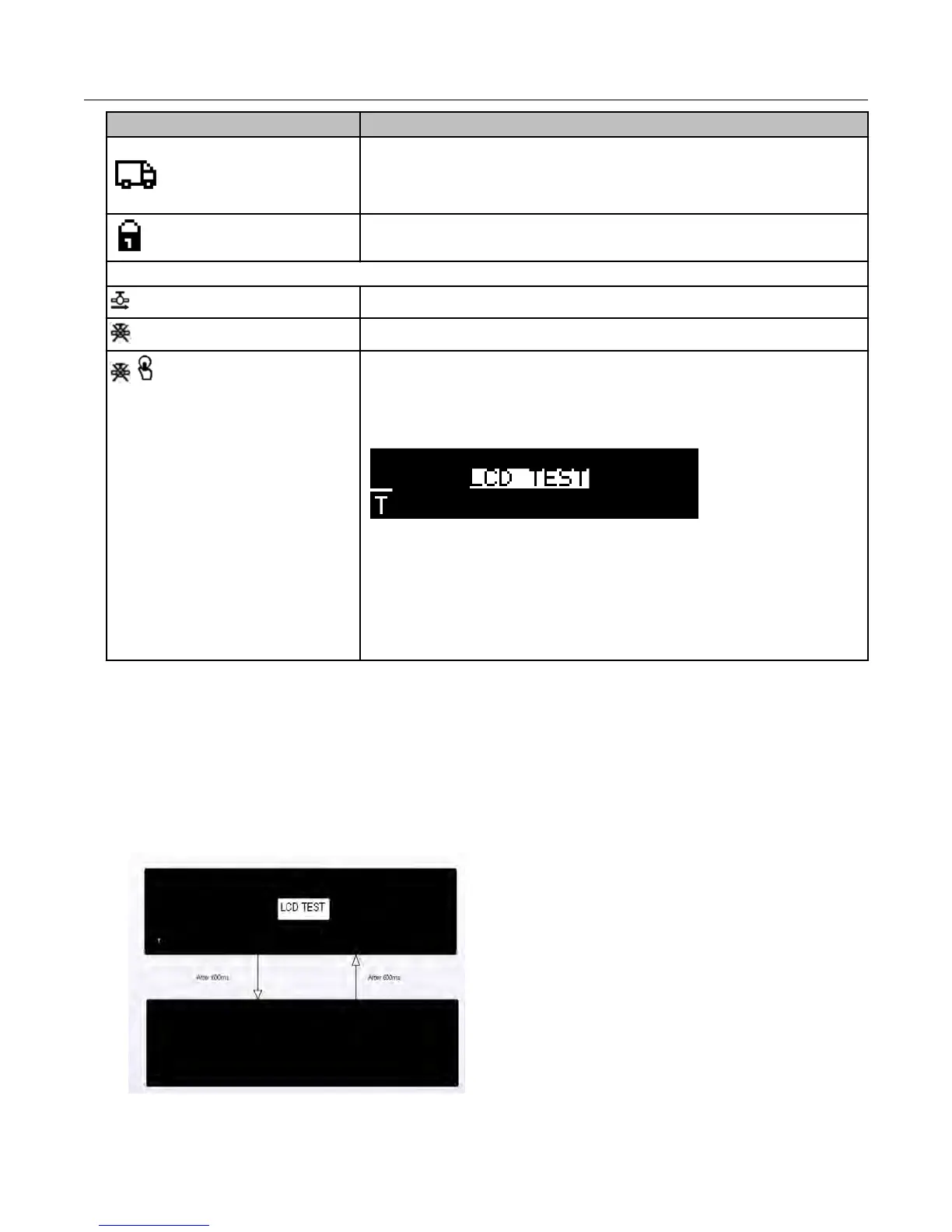

Display icon Icon definition
The meter is in Factory Ship Mode.
Note: The truck icon clears when the Intelis Gas Meter is moved
to an operational mode.
Closed padlock icon. The meter is sealed. The lock icon clears
when the meter is unsealed.
Shutoff valve status icons
The shutoff valve is open.
The shutoff valve is closed.
Shutoff valve is in armed state. The shutoff valve opening is
actuated by pressing the button for 2 seconds and releasing it.
Important:
If the Intelis Gas Meter LCD button is pressed too
long, the LCD Test screen appears.
A technician should ensure the installation premise is safe by
ensuring there is no flow downstream of the meter prior to
opening the valve. Prior to pressing the button to open the valve,
the technician must check the LCD to verify there are no alarms.
If any alarms are present, investigate and remediate them prior to
opening the valve.
Performing an LCD test
The Intelis Gas Meter LCD T
est is used to confirm the LCD display is functioning properly
and that there are no non-displaying pixels that could lead to misinterpretation of a value.
• Hold down the meter button longer than 4.8 seconds (long press).
The long press initiates the LCD test. After the long press, the display turns black for
600ms. After 600ms, the screen displays LCD TEST again.
Intelis Gas Meter LCD Operation
Intelis Gas Meter Installation Guide TDC-1782-002 20
Proprietary and Confidential
