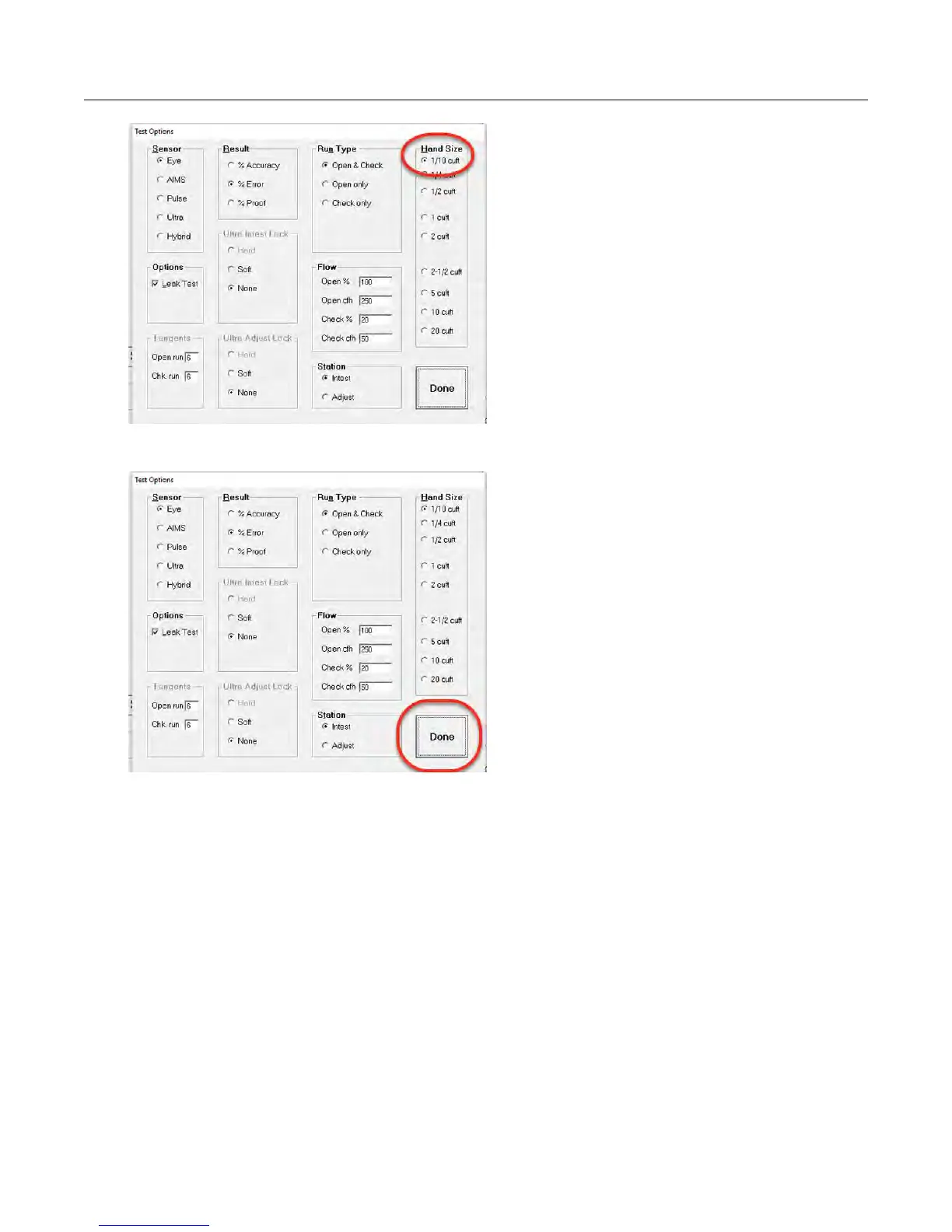

1
1.
Click
Done
to complete the
Meter Information
>
T
est Options
and close the window
.
Note
: All other settings (T
angents, Ultra Intest Lock, Ultra Adjust Lock and Station) on the
T
est Options window are not relevant for the Intelis meter
Pr
oving the Intelis Gas Meter
1.
Connect the EEI pulse prover cable (Itron part number CFG-7100-400) to the EEI prover
index eye connector
.
Proving the Intelis Gas Meter
Intelis Gas Meter Installation Guide TDC-1782-002
50
Proprietary and Confidential
53
55
