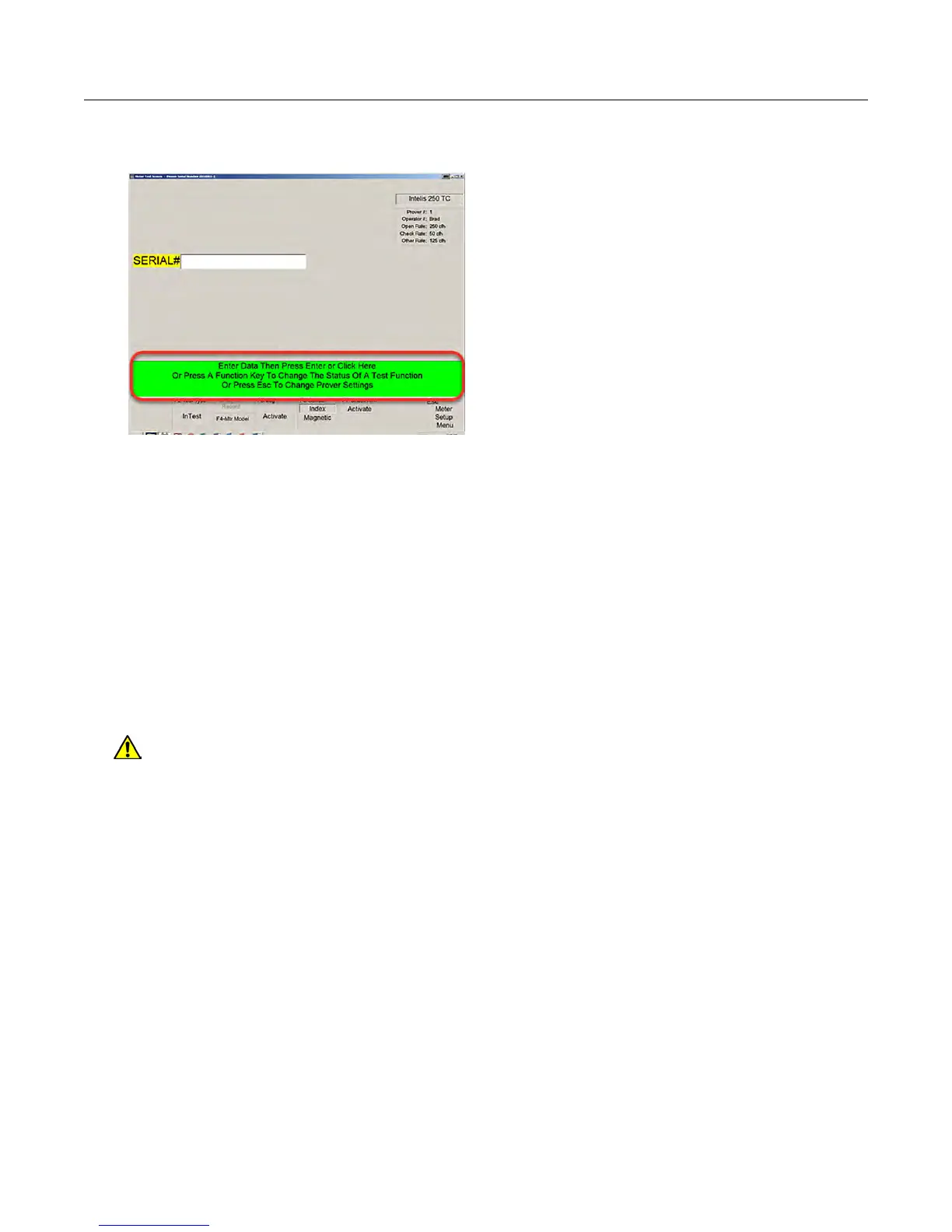

4. Press or click the green bar on the bottom of the screen to begin the Measurement
Systems proving test.
5. Verify the LED blinks (pulses) when the air begins to flow through the meter.
Pr
oving the Intelis Gas Meter using the Energy Economics
(EEI) proving system
This section provides the information to set up an Intelis Gas Meter using an EEI proving
system.
Note: Proving the Intelis Gas Meter requires Energy Economics prover software.
Temper meters unpackaged in the proving area for 24 hours prior to testing. If tempering is
not possible, complete steps 1-5 of Temper the meter by exercising the meter on page 44.
If the meters are tempered, continue to Setting up the EEI prover on page 46.
Warning: Follow your company’
s standard operating procedures regarding the use
of personal protection equipment (PPE). Adhere to guidelines issued by your
company in addition to those contained in this document when proving meters.
Adjust the proving table to accommodate the height of the Intelis Gas Meter. If necessary,
use the Intelis Gas Meter prover stand (Itron part number FIX-7100-001). Place the prover
stand on the prover table and set the meter on the stand.
Itron recommends these Intelis Gas Meter Test Mode parameter settings for the EEI proving
system:
• Test Mode pulse weight: 0.10 CF
• Test Mode pulse width: 150 ms
Temper the meter by exercising the meter
1. Log on to the EEI prover application.
Proving the Intelis Gas Meter
Intelis Gas Meter Installation Guide TDC-1782-002 44
Proprietary and Confidential
