Note: Proving the Intelis Gas Meter requires Measurement Systems prover software. See
the Measurement Systems prover documentation for version requirements.
Temper meters unpackaged and uncapped in the proving area for 24 hours prior to testing.
If tempering is not possible, complete steps 1-8 of Temper the meter by exercising the meter
on page 33. If the meters are tempered, continue to Setting up the Measurement Systems
prover on page 34.
Warning: Follow your company's standard operating procedures regarding the use
of personal protection equipment (PPE). Adhere to guidelines issued by your
company in addition to those contained in this document when proving meters.
Adjust the proving table to accommodate the height of the Intelis Gas Meter. If necessary,
use the Intelis Gas Meter prover stand (Itron part number FIX-7100-001). Place the prover
stand on the prover table and set the meter on the stand.
Note: The Measurement Systems application software on the Measurement Systems
proving system provides touch screen functionality. You may prove the Intelis Gas Meter
using the Measurement Systems Prover screen or a traditional mouse-click to complete the
steps.
Itron recommends these Intelis Gas Meter Test Mode parameter settings for the
Measurement Systems proving system:
• Test Mode pulse weight: 0.10 CF
• Test Mode pulse width: 150 ms
Temper the meter by exercising the meter

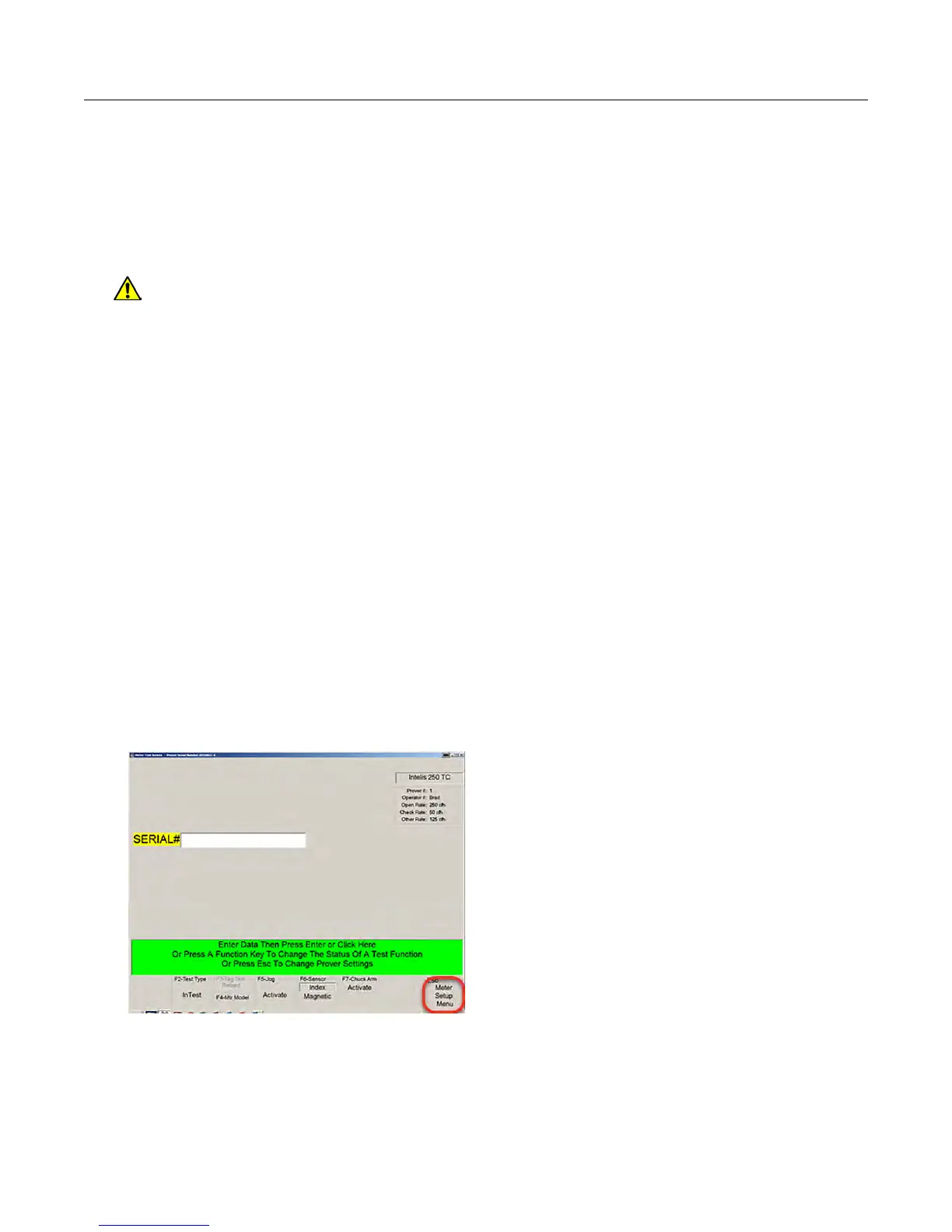

1. Open the Measurement Systems Proving System application software.
2. Select Meter Setup to exercise the meter.
3. Select the Global
tab > Operate Valves and View Sensor Readings.
Proving the Intelis Gas Meter
Intelis Gas Meter Installation Guide TDC-1782-002 33
Proprietary and Confidential
