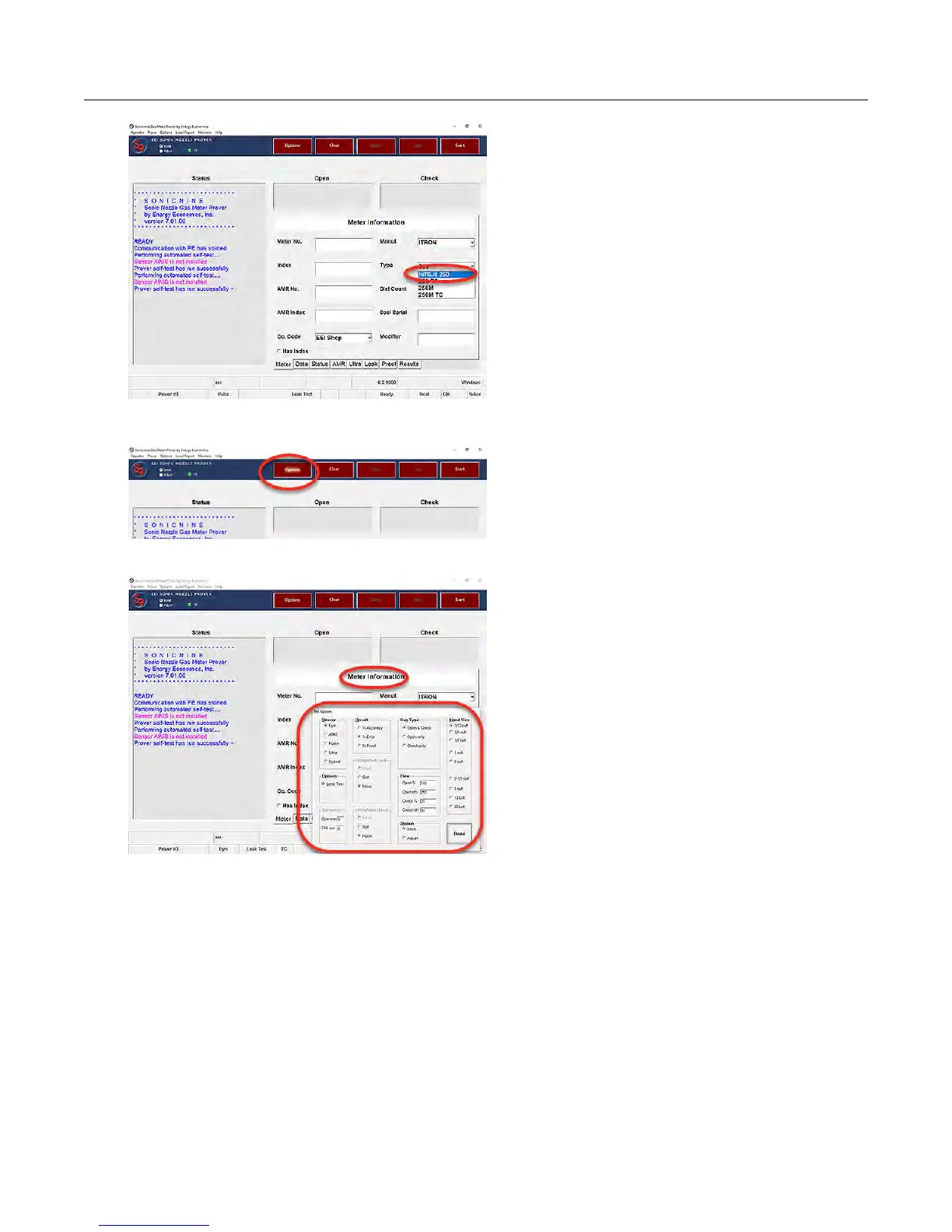

5.
Click the
Options
tab.
The
Meter Information
>
T
est Options
window opens.
6.
Select
Eye
for the T
est Options
Sensor
.
Proving the Intelis Gas Meter
Intelis Gas Meter Installation Guide TDC-1782-002
47
Proprietary and Confidential
50
52
