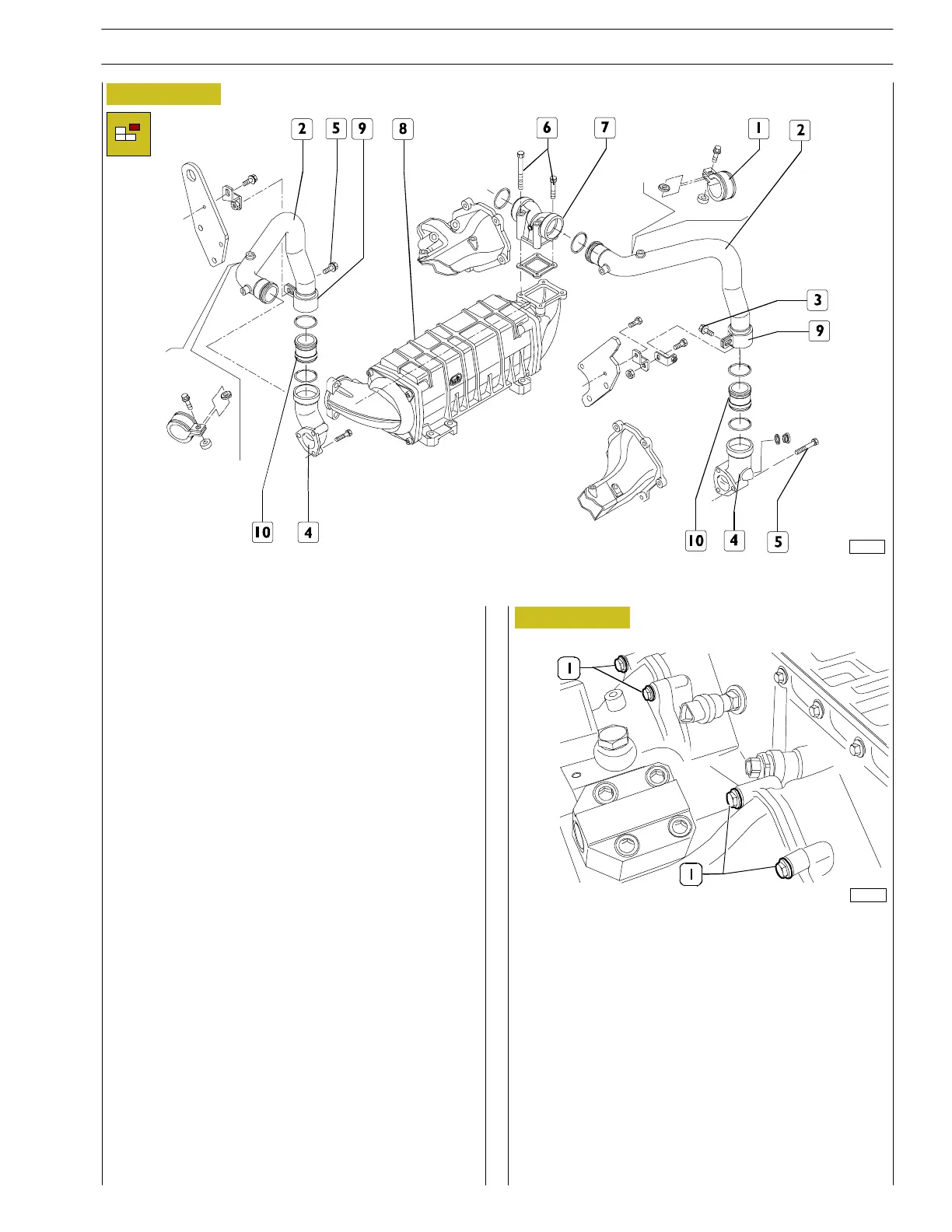

Figure 21
- Proceed as follows:
Undo the screws of the collars (1) securing the pipes (2)
to the intake ducts.
Undo bolts (3) secu ring fastenin g collars (9) that join
pipes (2) to fittings (4) on the engine blocks by means
of gaiters (10).
Undo the screws (5) fixing the couplings (4) on the main
bearings and at the top unscrew the screws (6) fixing the
three—way coupling (7) on the oil/water cooler (8) of the
engine oil.
Figure 22
- Unscrew the 10 screws (1) fastening the intercooler to
the air in take manifolds.
114242
82212
SECTION 3 - INDUSTRIAL APPLICATION
17
VECTOR 8 ENGINES
Print P2D32V001E Base - April 2006
