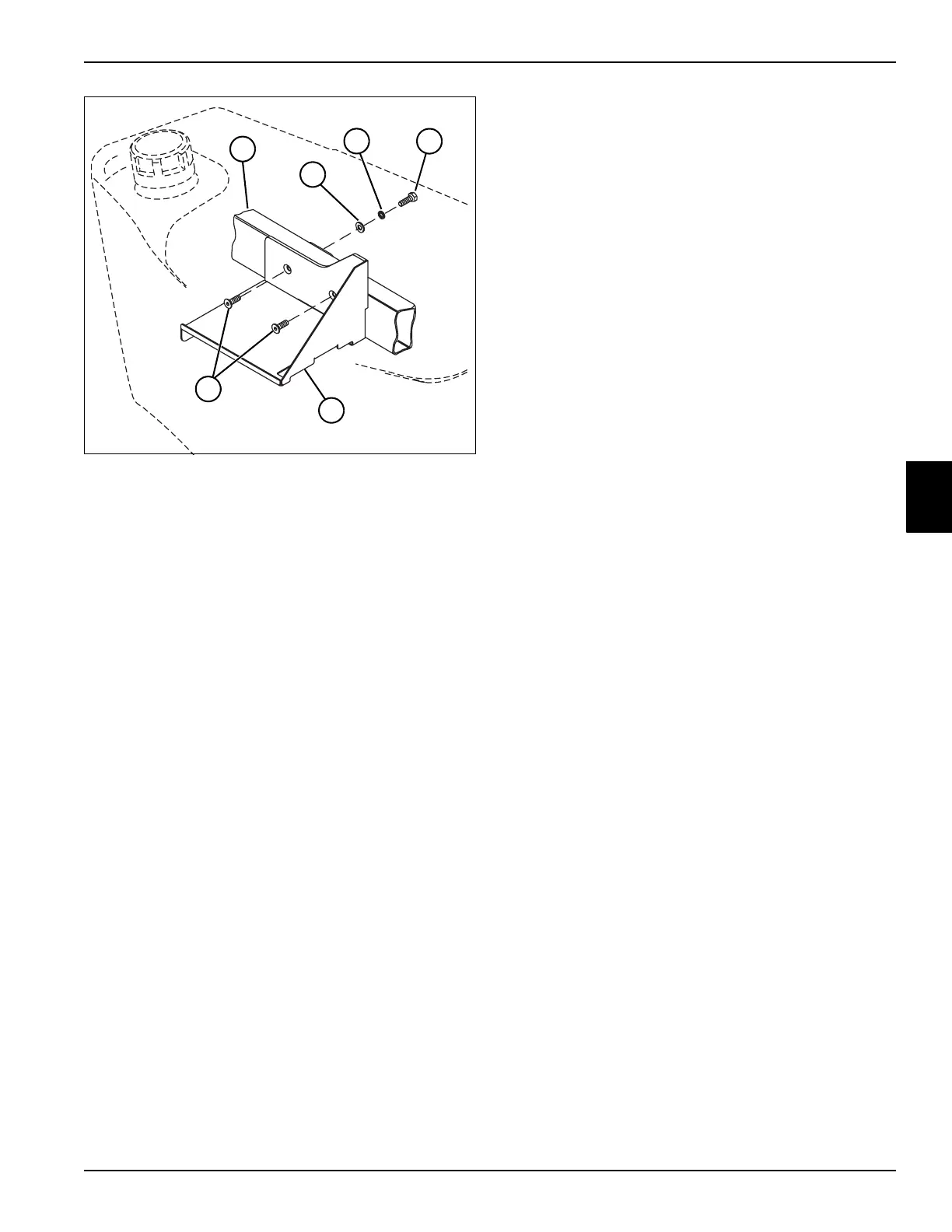

Figure 4-50
8. Support the battery tray (21).
9. Remove one screw (20), lock washer (19), and flat
washer (18) from the inside of the frame rail (17) and
battery tray (21).
10. Remove two countersunk, socket-head screws (22)
from the battery tray (21) and the outside of the
frame rail (17).
11. Remove the battery tray (21).
Installation Note
Install the battery tray and battery by reversing the order
of removal.
TN1059
21
22
20
19
18
17
