ELECTRICAL
4181384 First Edition 4-5
4

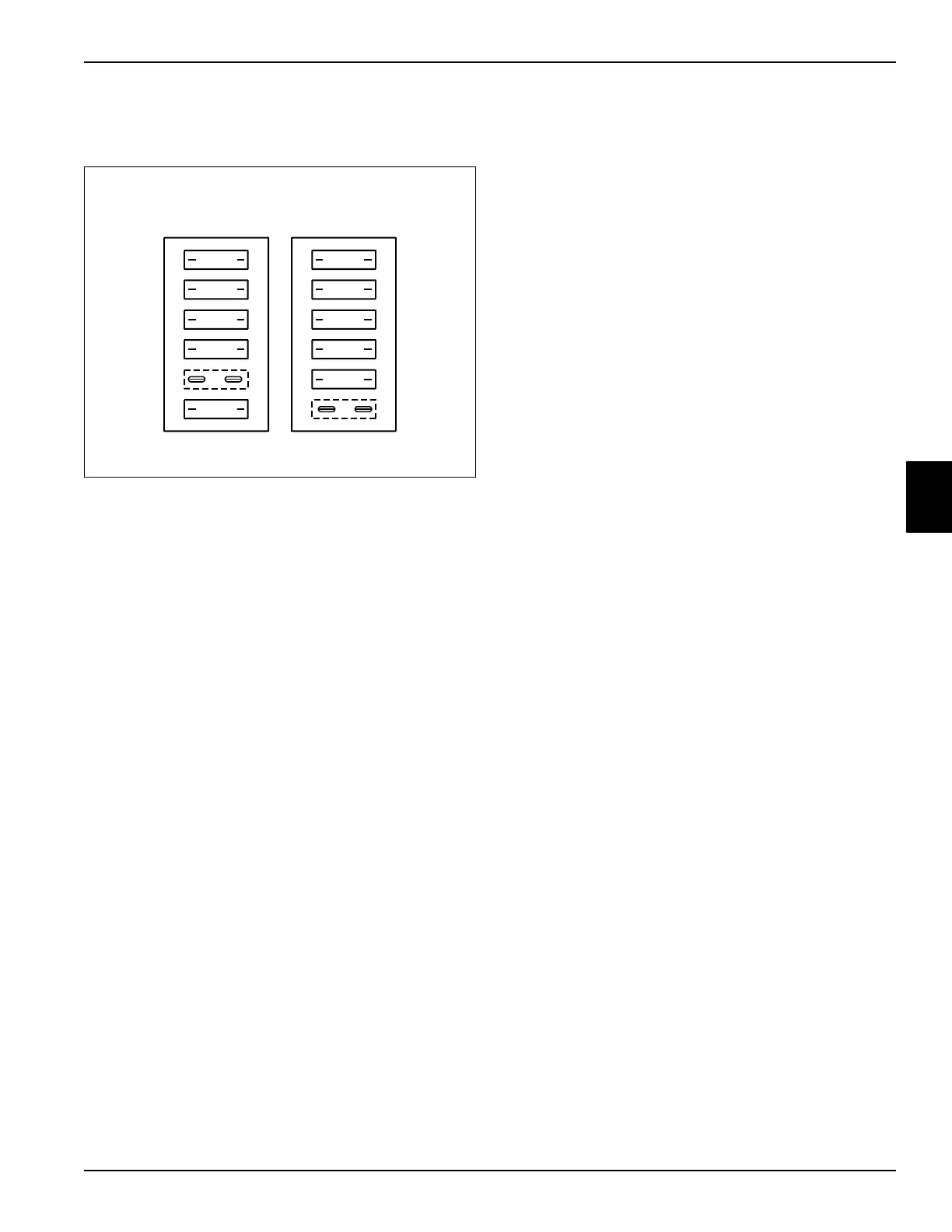

Fuse Identification
See Figure 4-1.
Figure 4-1
• F1— 5A Fuse, Accessory Socket 2
• F2—15A Fuse, Accessory Socket 1
• F3—10A Fuse, Work Lights
• F4—5A Fuse, Park Brake solenoid
• F5—2A Fuse, Multi-Function Gauge
• F6—15A Fuse, Start Circuit
• F7—7.5A Fuse, Alternator
• F8—5A Fuse, Mow Switch Light, Alternator Light,
Multi-Function Gauge and Setup Switch
• F9—5A Fuse, Engine Oil Pressure Light, Hydraulic
Filter Light
• F10—10A Fuse, Control Module
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
Fuse Box 1
Fuse Box 2
TN1149
