Jacobsen AR-3 - Component Location

7-4 4181384 First Edition
STEERING
7
Component Location

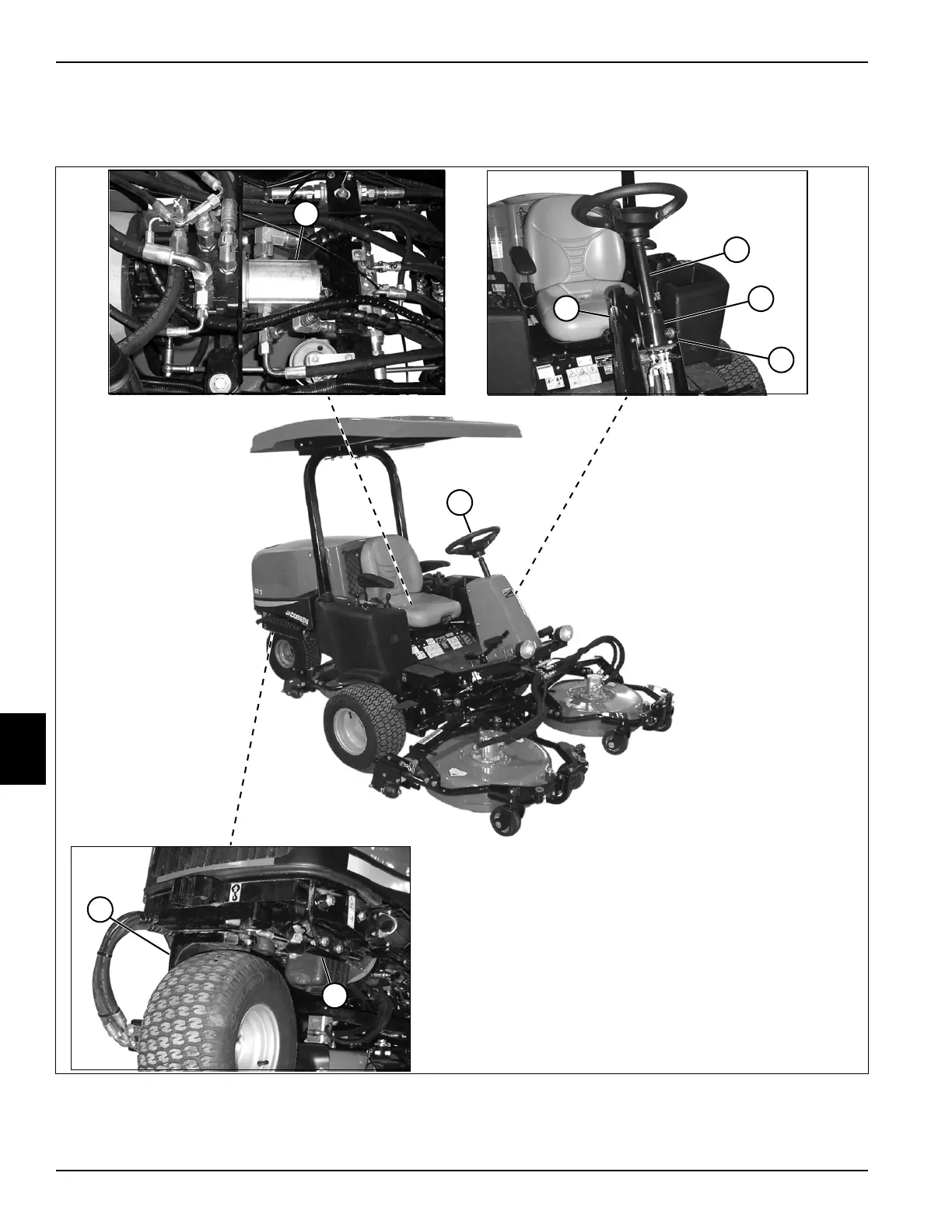

See Figure 7-1.
Figure 7-1
1 Steering Unit Pump
2 Steering Tower
3 Steering Column
4 Steering Valve
5 Tilt Bracket
6 Steering Wheel
7 Rear Wheel Support
8 Steering Cylinder
TN0991, TN1228, TN1229, TN1230
2
4
3
6
7
1
5
8
