4-80 4181384 First Edition
ELECTRICAL
4
Rocker Switches

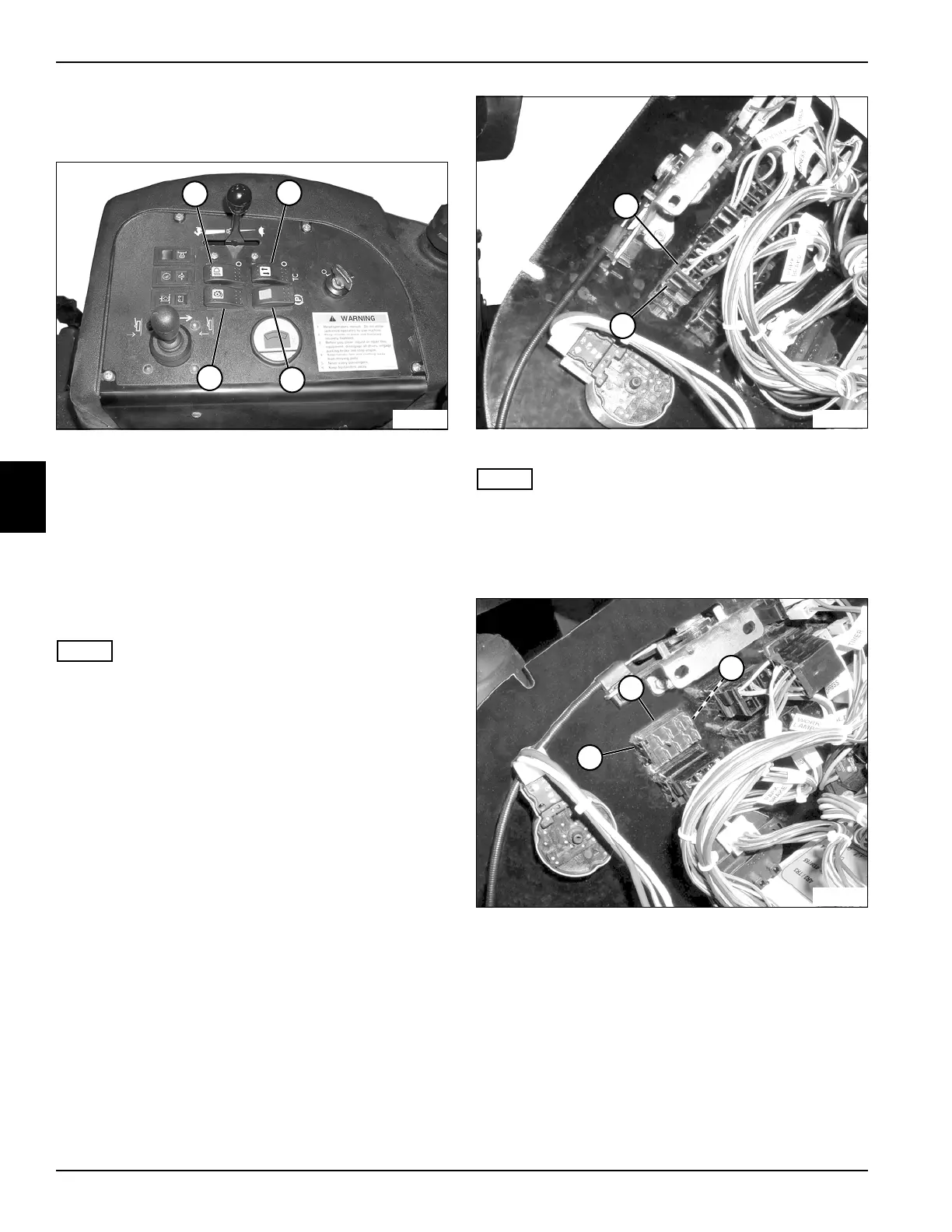

See Figure 4-68.
Figure 4-68
This procedure applies to the following switches:
• Work Light Switch (Optional) (1)
• Weight Transfer Switch (2)
• Park Brake Switch (3)
• Mow Switch (4)
Removal and Installation
See Figures 4-69 and 4-70.
NOTE
Weight transfer switch shown.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-7.)
2. Disconnect the battery negative (–) cables at the
battery.
3. Remove instrument panel. (See “Instrument Panel”
on page 4-76.)
Figure 4-69
NOTE
Label all wiring connectors before removing to ensure
correct installation.
4. Press in on the tab (2), and disconnect wiring
connector (1) from switch.
Figure 4-70
5. Press in on the tabs (3) on each side of the switch,
and push the switch (4) through the panel.
Installation Note
Install switches by reversing the order of removal.
TN1066
2
1
4
3
1
TN1085
2
TN1086
4
3
3
