HYDROSTATIC POWER TRAIN
4181384 First Edition 5-19
5
!
WARNING
3. Lift and support the machine so that the front and
rear wheels are off the ground.

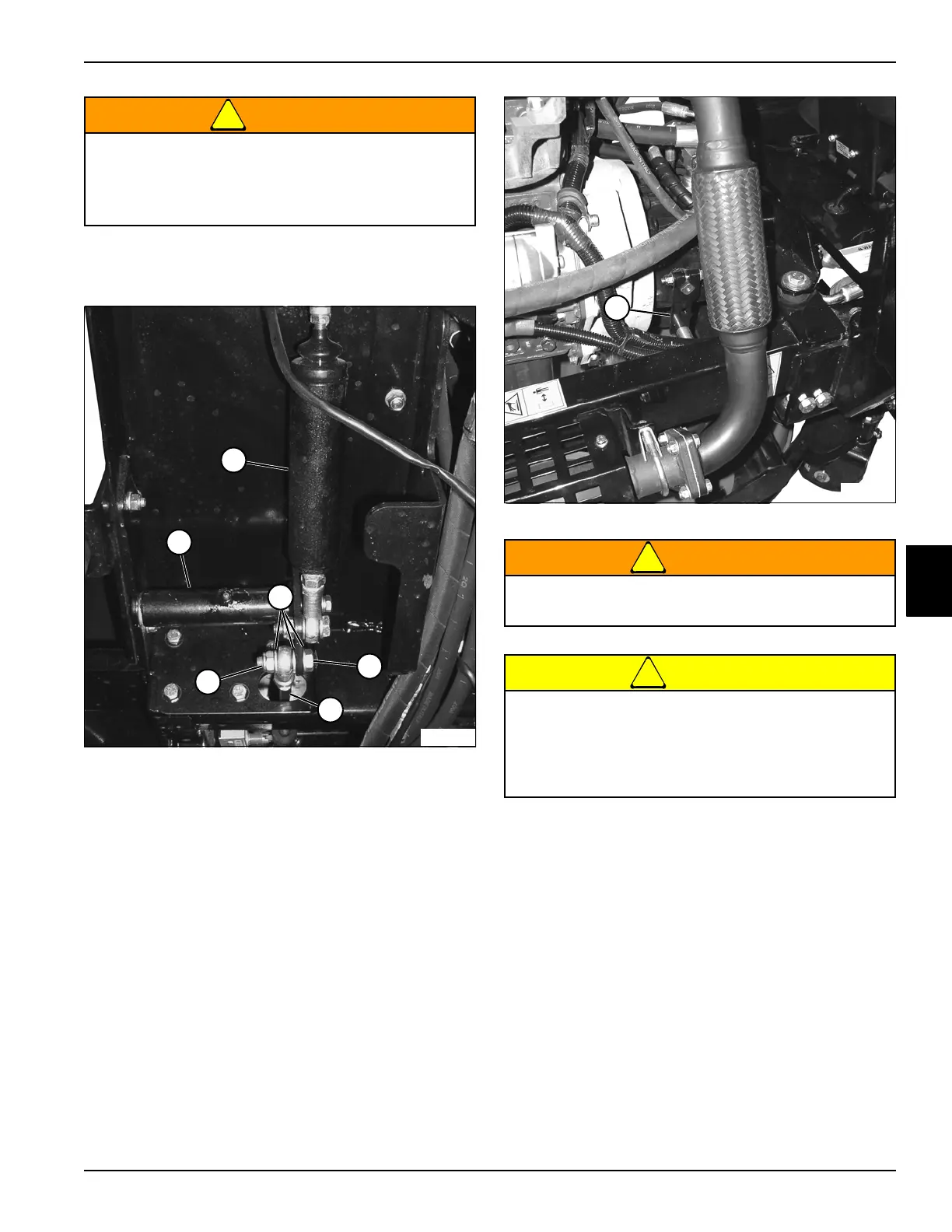

Figure 5-18
4. Remove lock nut (6), screw (4), and three flat
washers (3), and disconnect rod end (5) from pedal
weldment (2).
5. Allow the damper (1) to return the traction pedal to
the neutral position.
6. Start the engine. (Refer to “Safety, Operation, and
Maintenance Manual.”)
Figure 5-19
!
WARNING
!
CAUTION
7. Manually move the pump control lever (7) until the
wheels stop rotating.
8. Stop the engine.
Prevent personal injury. Use properly rated lifting
devices. Always be sure load is balanced before
lifting.
Support the machine properly using jack stands.
TN1248
6
4
3
5
2
1
Never operate the engine without proper
ventilation; exhaust fumes can be fatal if inhaled.
Engine component will become hot during
operation. Use caution when working near engine
components while performing service. Failure to
follow safety recommendations may result in
injury.
TN1246
7
