HYDROSTATIC POWER TRAIN
4181384 First Edition 5-37
5
Installation Notes
• Install the rear wheel hydraulic motor by reversing the
order of removal.

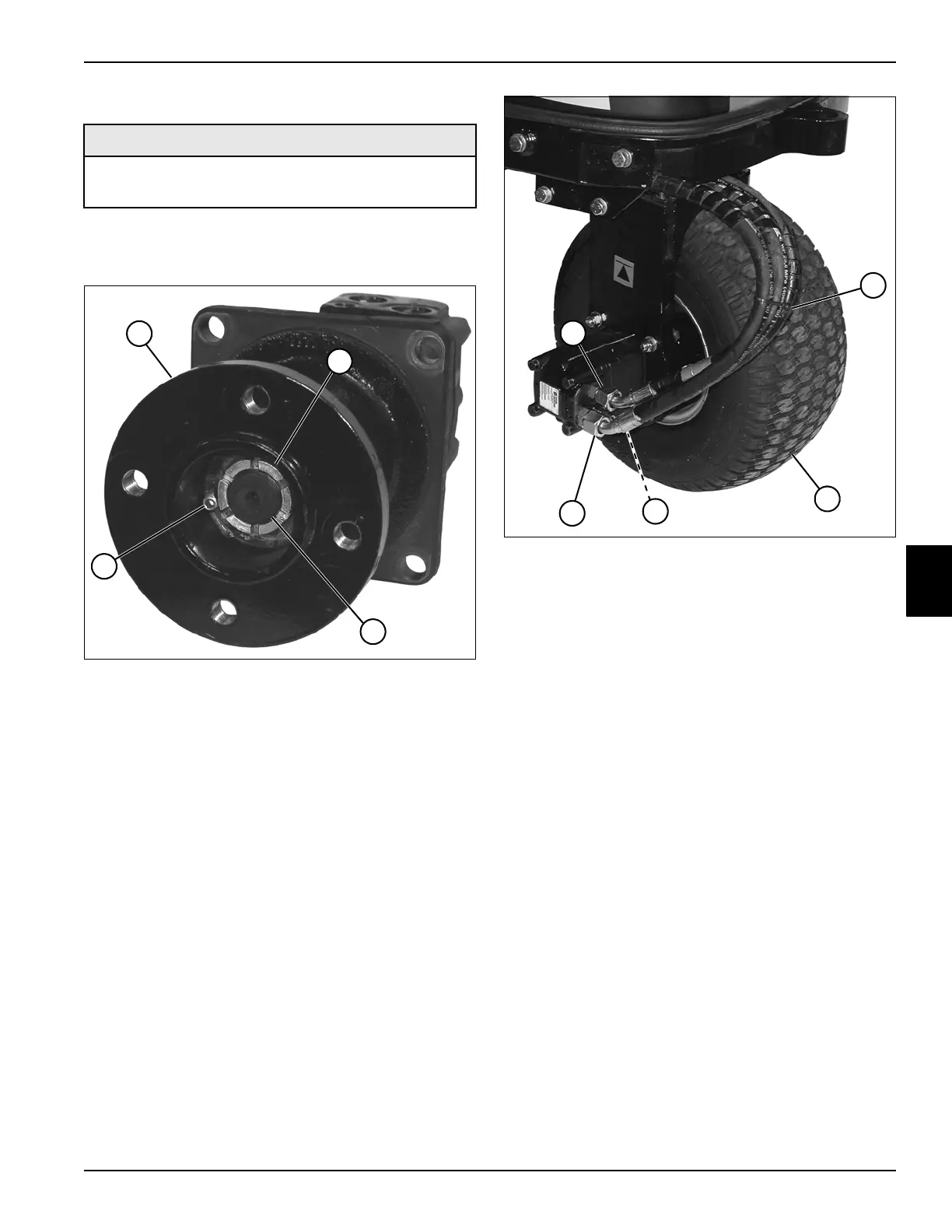

Figure 5-66
• Apply anti-seize compound to the motor shaft
threads. Be careful not to apply anti-seize compound
to the motor shaft (19).
• Tighten castle nut (18) to 148 ± 7 lb-ft
(200 ± 10 N·m). Position the nut so the flats are not
covering set screw (20) hole.
• Apply Locite
®
242
(Blue) Thread Sealant to set screw
threads (20) before installing set screw.
Figure 5-67
• Before tightening the hose connections (23, 24, and
25) position hoses to allow clearance between hoses
and rear wheel (22).
• Tie hoses together using a cable tie (21).
• Check hydraulic oil level. Add oil as needed. (Refer to
“Safety, Operation, and Maintenance Manual” for the
correct oil specifications.)
Required Materials
Anti-Seize Compound
Loctite
®
242
(Blue) Thread Sealant
TN1221
17
20
18
19
TN1303
22
21
23
24
25
