Jacobsen AR-3 User Manual

ACCESSORIES AND MISCELLANEOUS REPAIR
4181384 First Edition 9-5
9

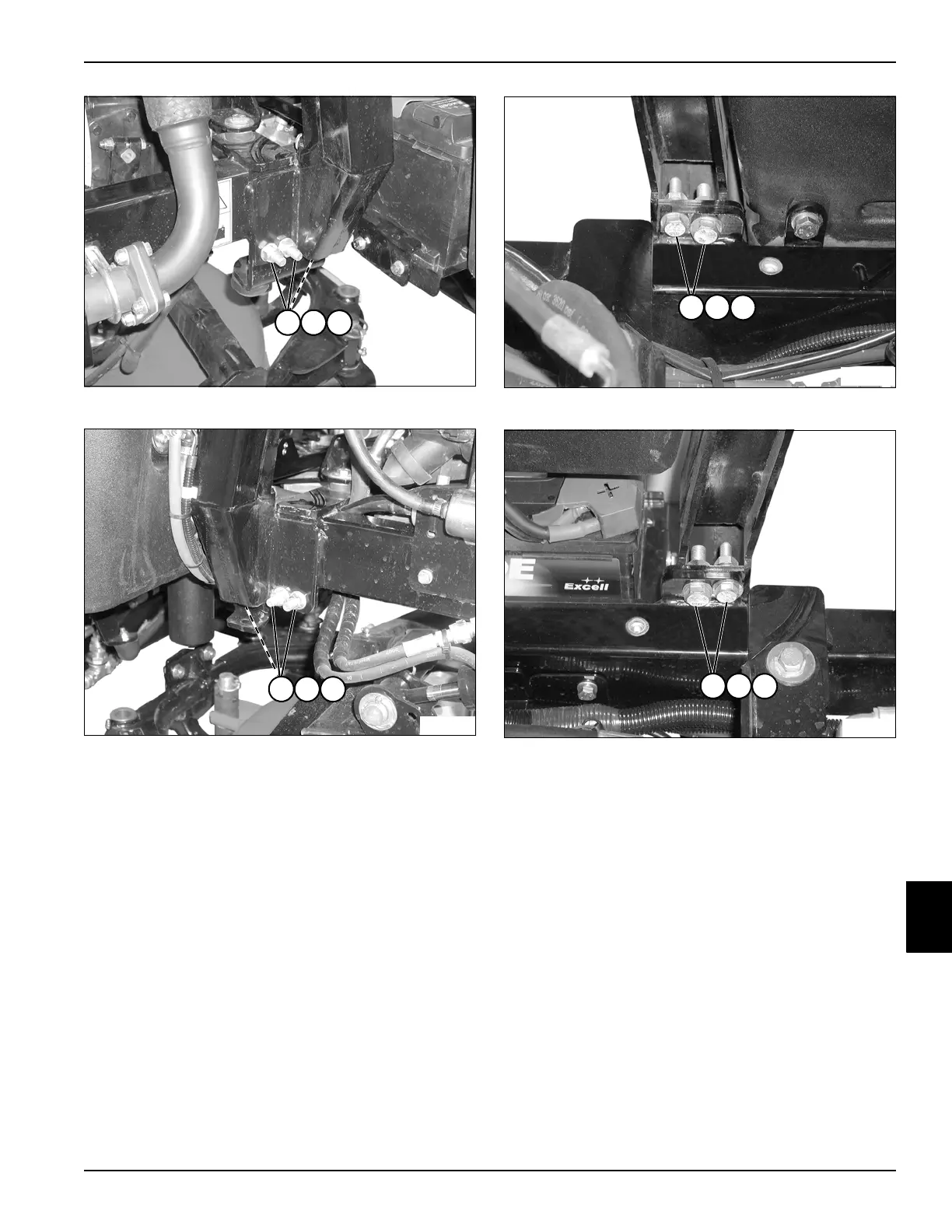

Figure 9-5
Figure 9-6
5. Remove three M12 lock nuts (2), flat washers (3),
and screws (4) from the bottom of the bracket on
each side of the OPS assembly.
Figure 9-7
Figure 9-8
6. Remove two M10 lock nuts (5), screws (6), and four
flat washers (7) from the top of the bracket on each
side of the OPS assembly.
7. Remove the OPS assembly.
Installation Notes
• Install the OPS by reversing the order of removal.
• Tighten M10 screws (6) and nuts (5) to 34 lb-ft
(46 N·m).
• Tighten M12 screws (4) and nuts (2) to 58 ft-lb
(79 N·m).
TN1046
32
4
TN1047
3
2
4
TN1048
65
7
TN1049
65
7
