3-10 4181384 First Edition
ENGINE
3

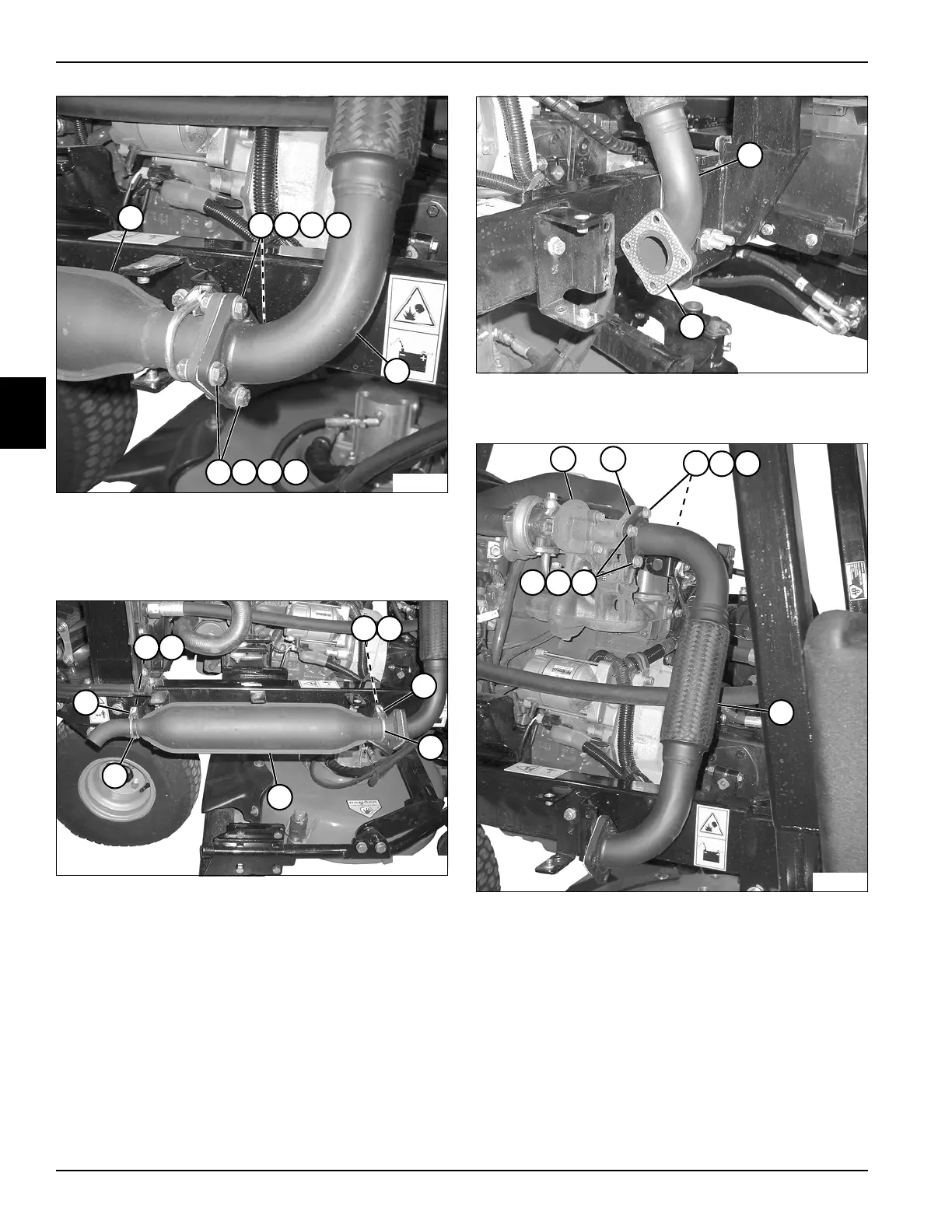

Figure 3-10
4. Remove four lock nuts (6), lock washers (7), screws
(8), and eight flat washers (9) from muffler (5) and
down pipe (10).
Figure 3-11
5. Support muffler (15).
6. Remove two lock nuts (11) and flat washers (12) from
U-bolt (13) and clamp (14) on each end of muffler
(15).
7. Remove muffler (15).
Figure 3-12
8. Remove gasket (17) from down pipe (16).
Figure 3-13
9. Remove four screws (20), lock washers (21), and flat
washers (22), and remove downpipe (23) and gasket
(19) from turbocharger (18) or exhaust manifold.
Installation Notes
• Install the muffler by reversing the order of removal.
• Install new gaskets during installation.
TN1013
5
10
6
7 9
8
6
7 9
8
TN1014
13
14
12
15
11
14
13
12
11
17
TN1016
16
20
TN1015
23
21
1918
22
20
21
22
