Jandy AquaLink RS Installation Manual

Page 17
3.4.6 GuidelinesforaGasHeaterandaJandy
AE Series Heat Pump/Chiller Installation
NOTE The following steps provide the procedure for
installing a Jandy AE Series Heat Pump.
1. Install a fixed resistor, with a value of 2.2K
Ohms, in the solar sensor terminals #3 and
#4 of the green, 10-pin terminal bar of the
AquaLink RS Power Center (see Figure
16).
2. To run the wires from the Heat Pump
control panel, remove the 5 screws that
attach the service/wiring cover panel to the
heat pump (see Figure 16).
NOTE One end of the wiring reserved for remote
control hook-up of the heat pump is connected
to terminals T5 and T6 on the control panel
printed circuit board (PCB), located on the back
of the control panel.
3. Run the wires from the Heat Pump control
panel through the wiring conduit located on
the outer right hand side of the Heat Pump.
4. Connect the Heat Pump to a standard
relay, then connect the relay to the solar
pump output on the PCB. Set the time to
11:59 PM; at 12:00 AM, the AquaLink
RS will auto-relabel Solar as Heat Pump.
Otherwise, the AquaLink RS will auto-
relabel Solar as Heat Pump within 24 hours.
5. The Solar Button will activate the heat
pump/chiller and the Pool and/or Spa
Heater Buttons will activate the gas heater.
In this manner the pool or spa can be heated
or chilled by the heat pump, the gas heater
or both.
NOTE To program the Heat Pump control panel, refer
to the Jandy AE Series Heat Pump Manual.
4 3 2 1 6 5 4 3 2 1 10 9 8 7 6 5 4 3 2 1
Battery
(9Volt)
®
JANDY AquaLink RS
FILTER PUMP OFF
AIR 79°
06/26/04 MON
6:00 PM
EQUIPMENT ON/OFF
ONETOUCH ON/OFF
MENU / HELP
Gas Heater
Heat Pump/Chiller #1
Note for All Button:
Green- Enabled
Red- On
Gas Heater Connections
Terminals 1 and 2
Fireman's
Switch
From Fusible
Link
To Pressure
Switch
Note for
OneTouch:
LED will not
come on for
Heat Pump
2.2K Ohms Resistor
in Solar Sensor
Terminals for Heat
Pump/Chiller
Heat Pump/Chiller #2

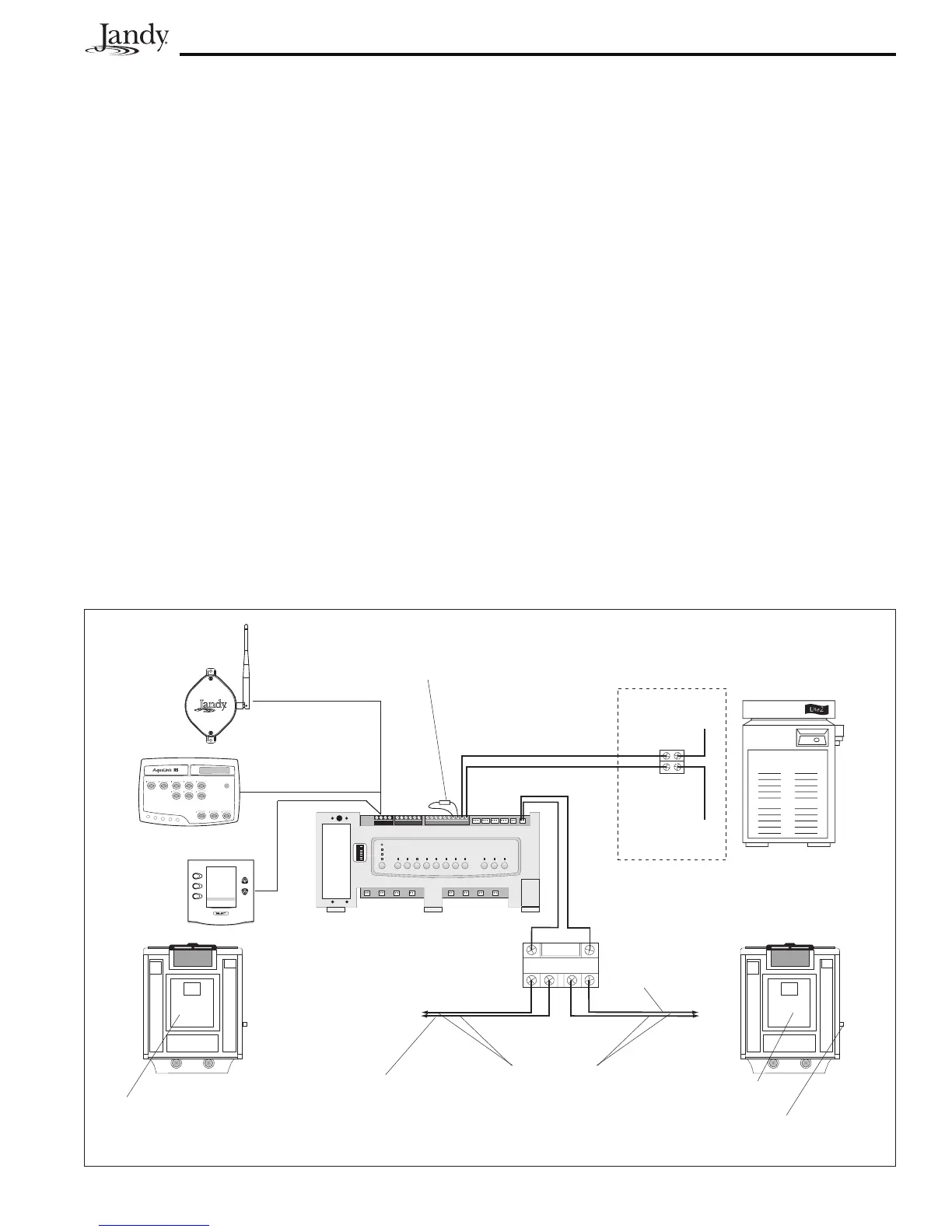

Figure 16. Heater and Heat Pump/Chiller Wiring
Service/Wiring
Cover Panel
Service/Wiring
Cover Panel
Port for Low
Voltage Wires
Standard High
Voltage Relay
Low Voltage Wiring
to Low Voltage Port
on Heat Pump
To Heat Pump #1
To Heat Pump #2
Wireless OneTouch
Transceiver J-box
