AquaLink
®
Touch™ Owner's Manual
11.2.1 Heat Pumps Controlled by Extra
Aux/Solar Boost Relay
In order to use the heat pump, the filter pump must be
turned on and the heat pump must be in HEAT MODE,
and the switch on the heat pump on the equipment pad
must also be set to HEAT MODE.
NOTE HEAT PUMP takes the place of EXTRA AUX or
SOLAR HEAT. It is not possible to have any two
of these on the EQUIPMENT ON/OFF menu at
the same time.
To operate the HEAT PUMP in this type of
configuration, set the DIP switch S2-1 to ON
and connect the HEAT PUMP temperature
sensor to the SOLAR SENSOR input.
11.2.2 Heat Pumps Controlled by the
RS485 Interface
In order to use the heat pump, the filter pump must
be turned on and the heat pump must be in the HEAT
MODE.
NOTE In this configuration, it is possible to have
the HEAT PUMP and SOLAR HEAT on the
DEVICES ON/OFF at the same time.
NOTE If both HEAT PUMP and SOLAR HEAT are to
be controlled by the system then set the DIP
switch S2-1 to OFF and connect the SOLAR
SENSOR to the SOLAR SENSOR input.
NOTE If SOLAR HEAT is not to be controlled by the
system then set the DIP switch S2-1 to ON and
connect the HEAT PUMP temperature sensor to
the SOLAR SENSOR input.

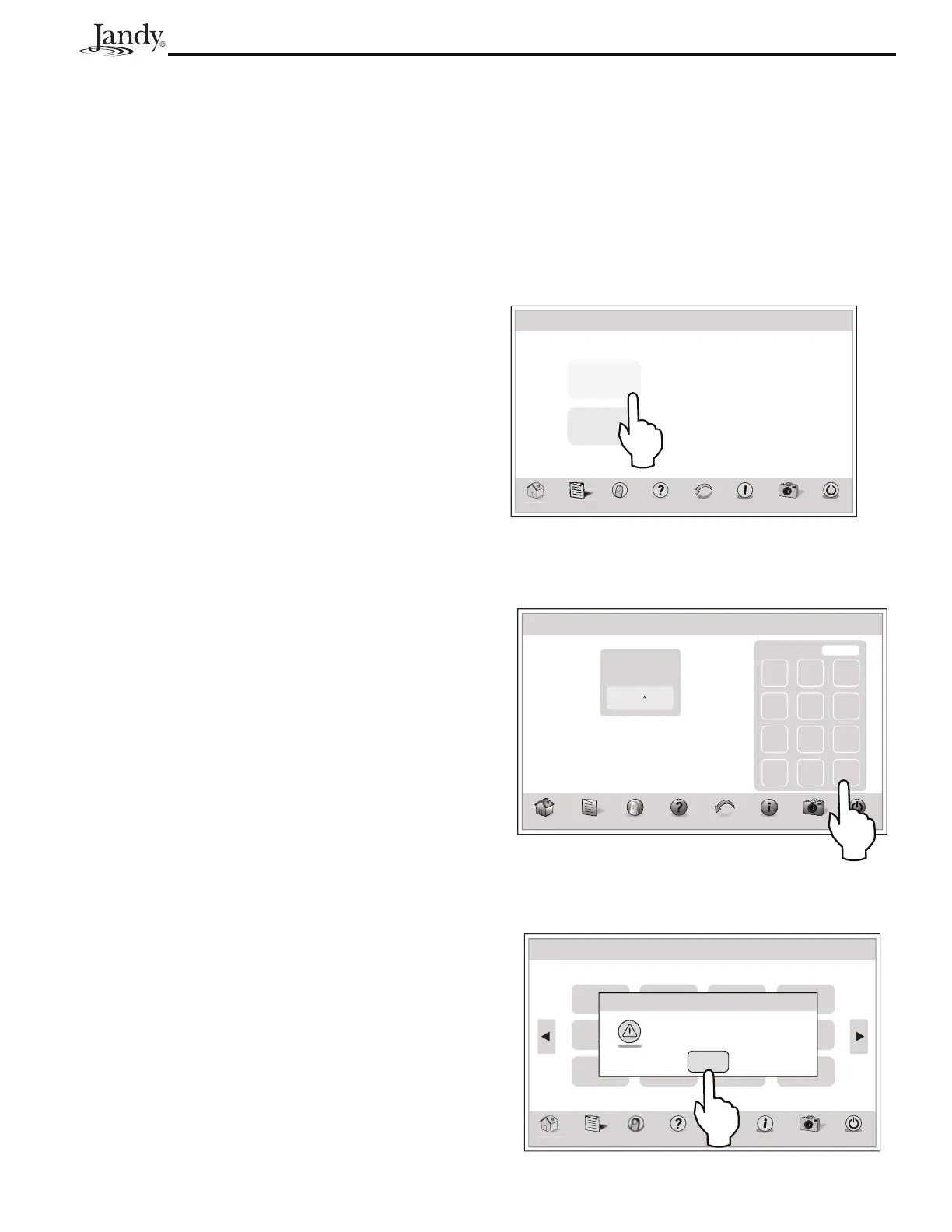

11.2.3 Heat Mode
MENU > SYSTEM SETUP > HEAT PUMP
From the SYSTEM SETUP screen, touch the HEAT
PUMP button to display the HEAT PUMP SETUP
screen.
From the HEAT PUMP SETUP screen, touch the HEAT
MODE button to set the heat temperature.
H
om
e
Menu OneTouch Help Back Status
Photos
Power
Heat Mode
Chill Mode
Heat/Cool Mode must be set
at the Heat Pump
Heat Pump Setup
Thu January 1, 2009 3:03 PM
Use the numeric keypad to enter the new temperature,
and then touch the ENTER button to save it.
Home Menu OneTouch Help Back Status Photos
Power
Heat Pump
Low Temperature
Threshold
48
7 8 9
4 5 6
1 2 3
0
Clear Enter
Set: 48
Thu January 1, 2009 3:03 PM
If the heat pump is not part of the system, the following
warning message will be displayed.
H
om
e
Menu OneTouch Help Back Status
Photos
Power
System Setup
Dusk
Set Up
Heat
Pump
PLockOut
Enabled
Air Temp
Enabled
HP Priority
N/A
DST
Enabled
Temp
Calibrate
Slr Priority
Disabled
All Off
Time
Product
Info
Degrees
Fº
Assign
JVAs
Thu January 1, 2009 3:03 PM
Ok
Warning
No Heat Pump is present.
