AquaLink
®
Touch™ Owner's Manual

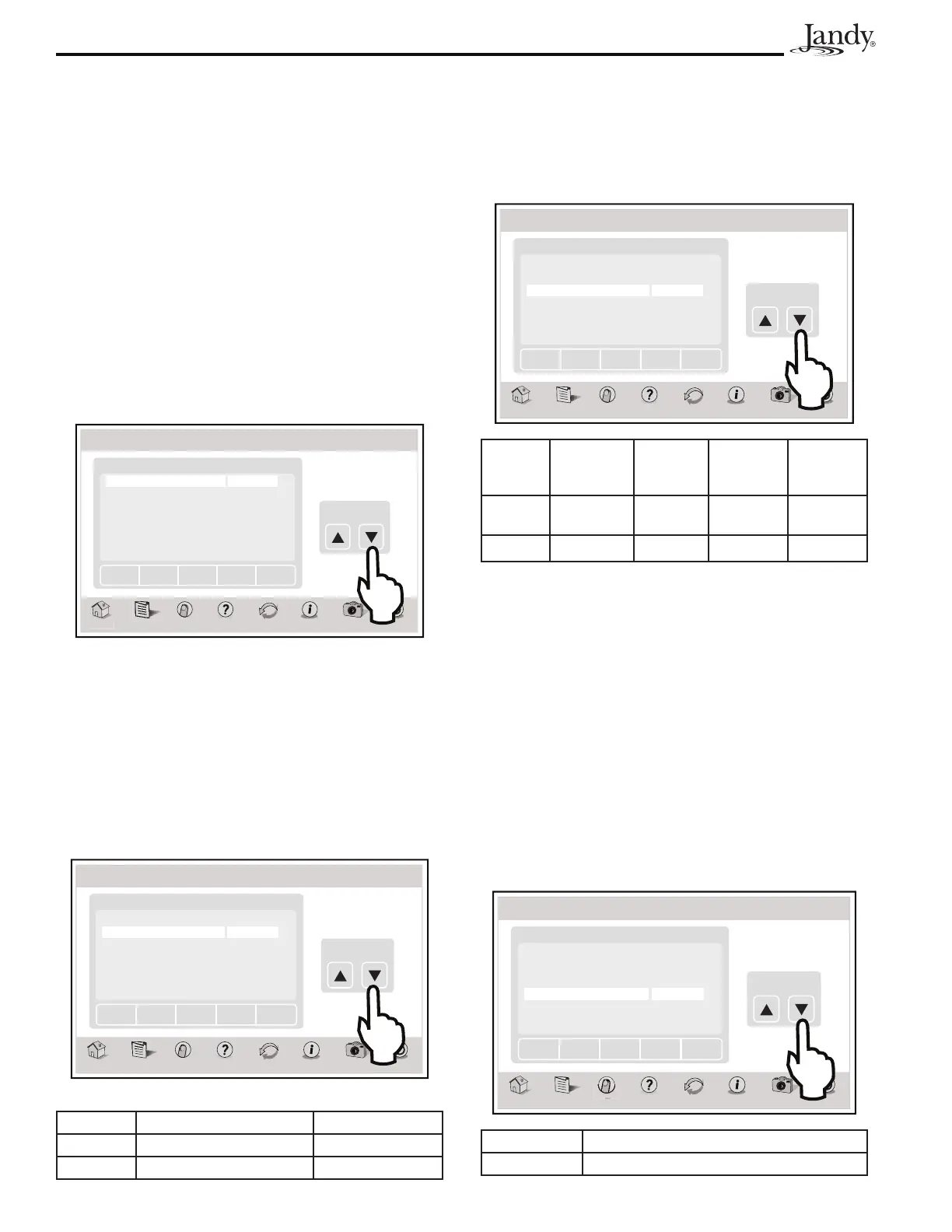

14.2.1 ORP Feeder Type
Depending on your installation, the AquaLink Touch
may display the following feeders:
▪ NONE - Default setting.
▪ SALT - For salt water chlorinators.
▪ ERO LP - Non typical application.
▪ MBV - Non typical application.
▪ ERO HP - Non typical application.
▪ LIQUID - For liquid peristaltic pumps.
▪ GRAN - For Polaris
®
G1000 dichor feeders.
From the CHEMLINK ORP setup screen, highlight the
FEEDER type. Use the UP and DOWN arrows to select
the feeder type. Touch SAVE when finished.
ChemLink
Ho
m
e
Menu OneTouch Help Back Status
Photos
Power
Thu January 1, 2009 3:03 PM
ChemLink 1 ORP Status
Feeder LIQUID
Feed TM 15 SEC
Delay OT 45 Min
Set Point 7.0
High Alert 8.0
Adjust
Page
Down
Page
Up
Save
Orp
pH
14.2.2 ORP Feeder Times
The feeders times, sets the amount of time the controller
activates the feeder per dose.
From the CHEMLINK ORP setup screen, highlight
the FEED TM values. Use the UP and DOWN arrows
to adjust the feed times values. Touch SAVE when
finished.
ChemLink
Ho
m
e
Menu OneTouch Help Back Status
Photos
Power
ChemLink 1 ORP Status
Feeder LIQUID
Feed TM 15 SEC
Delay OT 45 Min
Set Point 7.0
High Alert 8.0
Adjust
Page
Down
Page
Up
Save
Orp
pH
Thu January 1, 2009 3:03 PM
Type ERO LP/MBV/ERO HP Liquid
Default Do not use 30 Sec
Range .05 Sec to CONT
14.2.3 ORP Delay On Time
From the CHEMLINK ORP setup screen, highlight the
DELAY OT time. Use the UP and DOWN arrows to
adjust the delay on time. Touch SAVE when finished.
ChemLink
H
om
e
Menu OneTouch Help Back Status
Photos
Power
Thu January 1, 2009 3:03 PM
ChemLink 1 ORP Status
Feeder LIQUID
Feed TM 15 SEC
Delay OT 45 Min
Set Point 7.0
High Alert 8.0
Adjust
Page
Down
Page
Up
Save
Orp
pH
Type Salt ERO LP/
MBV/
ERO HP
Liquid Gran
Default Overfeed
Off
Do not
use
10 Min 30 Min
Range 1-99 Min 1-99 Min
OVERFEED: Salt only. Will alarm and not feed if ORP
has activated for too long, preventing damage to the
cell.
FEED DELAY: Sets the amount of time the controller
waits to dose the pool again.
14.2.4 ORP Setpoint
This setting specifies the level of sanitizer to be
maintained.
From the CHEMLINK ORP setup screen, highlight the
SET POINT values. Use the UP and DOWN arrows to
adjust the set point values. Touch SAVE when finished.
ChemLink
H
ome Menu OneTouch Help Back Status
Photos
Power
ChemLink 1 ORP Status
Feeder LIQUID
Feed TM 15 SEC
Delay OT 45 Min
Set Point 7.0
High Alert 8.0
Adjust
Page
Down
Page
Up
Save
Orp
pH
Thu January 1, 2009 3:03 PM
Default 650
Range 200 to 900
