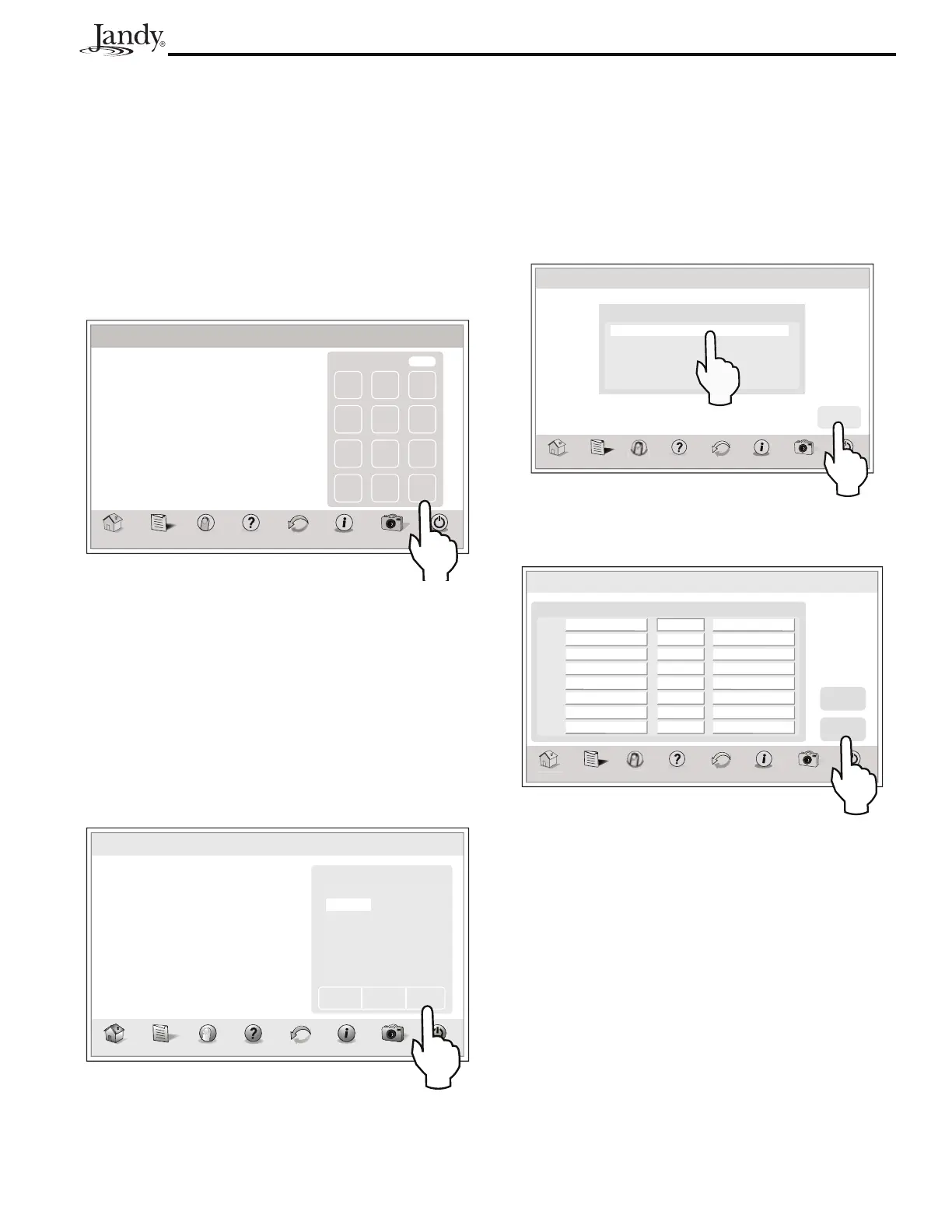

12.5 To Set Up the Priming Duration Time
MENU > SYSTEM SETUP > VSP SETUP
From the SYSTEM SETUP screen, touch the VSP
SETUP button to display the VSP SETUP screen.
From the VSP SETUP screen, touch the PRIMING
DURATION button of the selected pump to display
the VSP SET PRIMING DURATION screen. Use the
numeric keypad to set the desired priming duration
time.
H
o
m
e
Menu OneTouch Help Back Status
Photos
Power
Thu January 1, 2009 3:03 PM
7 8 9
4 5 6
1 2 3
0
Clear Enter
Set Minutes: 5
VSP Set Primming Duration
12.6 To Assign a Pump Speed to an AUX
MENU > SYSTEM SETUP > VSP SETUP
From the SYSTEM SETUP screen, touch the VSP
SETUP button to display the VSP SETUP screen. From
the VSP SETUP screen, on the AUX column touch an
item to be assigned an AUX.
On the ASSIGN VSP to AUX/RELAY screen, touch the
desired AUX and touch the SAVE button.
Thu January 1, 2009 3:03 PM
Home Menu OneTouch Help Back Status Photos
Power
Assign VSP to Aux/Relay
Page
Down
Page
Up
Save
Assign Speed 1 of pump 1
Aux 1
Aux 2
Aux 3
Aux 4
Aux 5
Aux 6
12.7 To Set Up Pump Speed
There are eight (8) default speed presets for each
variable speed pump.
MENU > SYSTEM SETUP > VSP SETUP
From the VSP SETUP screen, touch SPEED SETUP
button to display the VSP SPEED SETUP screen.
Thu January 1, 2009 3:03 PM
VSP Speed Setup
Ho
m
e
Menu OneTouch Help Back Status
Photos
Power
Next
Pump Model Application
1 Jandy ePump Filtration
2 Pentair VS Aux Pump
3 Pentair VF Not Installed
4 VSP AC Not Installed
Select the pump/model and touch the NEXT button to
display the eight (8) speed VSP SETUP screen.
VSP Setup
Save
Back
Speed Speed Label Speed Setting Aux
1 Pool 2750 Filter Pump
2 Spa 3000 N/A
3 Speed 3 2000 N/A
4 Speed 4 2500 Aux 4
5 Booster Pump 3000 Aux 5
6 Pool Heat 3400 N/A
7 Spa Heat 3400 N/A
8 In Floor 3000 Aux 6
Thu January 1, 2009 3:03 PM
Ho
m
e
Menu OneTouch Help Back Status
Photos
Power
12.8 To Re-label the Speed Preset
Each of the eight (8) speed presets has a label and each
of those labels can be changed from the default value.
MENU > SYSTEM SETUP > VSP SETUP
From the VSP SETUP screen, touch SPEED LABEL of
the selected speed to display the VSP SPEED LABEL
screen.
