Page 10
ENGLISH
Jandy
®
Legacy™ Model LRZE Pool/Spa Heater by Zodiac
®
|
Installation and Operation Manual
If the heater is to be installed in a garage, or
similar structure, all burners and burner ignition
devices must have a minimum 18" (457mm) clearance
above the oor.
This heater must be installed at least 5 feet
(1.52m) from the inside wall of a pool unless the
heater is separated from the pool by a solid fence, wall
or other permanent solid barrier.
Ce chauffe-piscine doit être installé au moins 5
pieds (1.52m) de la paroi interne de la piscine à moins
d'être isolé de la piscine par une clôture, un mur ou
autre barrière permanente.
The heater must be installed on a level surface
of noncombustible construction or on re-resistant
slabs or arches. Noncombustible ooring is dened
as ooring material and surface nish not capable of
being ignited and burning and with no combustible
materials against the underside. Acceptable materials
are those consisting entirely of a combination of steel,
iron, brick, tile, concrete, slate, glass or plaster. Do not
install the heater directly on a combustible wood or
carpet oor without placing a noncombustible platform
between the oor and the heater.
The heater can be installed on a combustible
oor if a noncombustible base assembly, available
from Zodiac Pool Systems, Inc, is used. See the
heater rating plate or the Parts List (Section 11) of this
manual for the appropriate base part number. Heaters
must never be installed directly on carpeting.

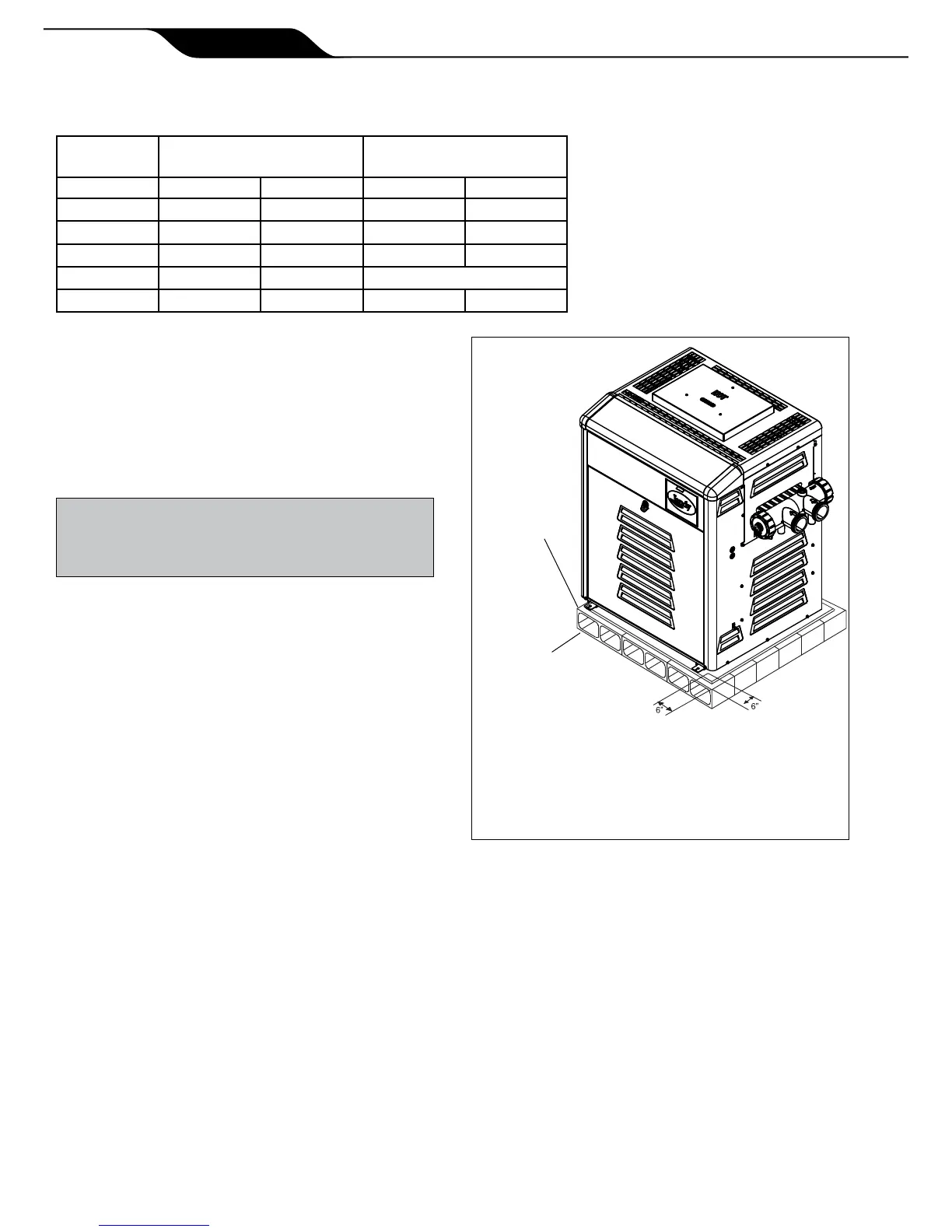

As an alternative to the Jandy noncombustible
base plate, in the United States, the National Fuel Gas
Code (NFPA 54 / ANSI Z223.1), and in Canada, the
Natural Gas and Propane Installation Code (CAN/
CSA-B149.1), allow a heater to be placed on a
combustible surface when there is a platform under
the heater made of hollow masonry no less than four
(4) inches (102 millimeters [mm]) thick, covered with
sheet metal at least 24 gauge thick and extending
beyond the full width and depth of the heater by at
least six (6) inches (153 mm) in all directions. The
masonry must be laid with ends unsealed, and joints
matched to provide free circulation of air from side to
side through the masonry, see Figure 2. If the heater
is installed in a carpeted alcove, the entire oor of the
alcove must be covered by a noncombustible panel.
The Legacy Model LRZ electronic heater can be
installed in the low-prole conguration as received
from the factory, or with an optional factory approved
vent cap for high wind applications..
Locate the heater in an open, unroofed area. Do
not install the heater under a deck. Do not locate the
heater below or adjacent to any doors, glass openings,
louvers, grills, etc., which connect in any way with an
inhabited area of a building, even though the access
might be through another structure (e.g., a garage or
utility room).
NOTE: Clearances listed in Table 2 are
manufacturer's tested values. These are
given as minimum values. Where local
and national codes apply, and values
are different than those listed in Table
2, use the greater value to ensure safe
operation.
* In Canada - 24 in (61cm)
1. Blocksmustprovideasolidbaseandbebracedsothey
cannotslipoutofplace.
2. Airopeningsinblocksmustbearrangedtoprovideunre-
strictedopeningthroughentirewidthorlengthofbase.
3.Sheetmetalmustbeatleast24ga.andextend6"beyond
theheaterjacketonallsides.
SIDEOF
HEATER
INDOOR(OUTDOOR
SHELTER)INSTALLATION
OUTDOORINSTALLTION
INCHES CENTIMETERS INCHES CENTIMETERS
BLANK 8 20.3 8 20.3
REAR 6 15.2 6 15.2
PIPING 14 35.6 14 35.6
TOP 44 111.8 OPENUNROOFEDAREA
FRONT 18* 45.7* 18* 45.7*
SheetMetalMin.
Thickness24Ga
HollowConcreteBlock
Platform(InCanada-Two
continuouscoursesof
90mm(4in.)thickhollow
masonryunits.)
