Jandy LRZ Electronic - Dimensions

Page 8
ENGLISH
Jandy
®
Legacy™ Model LRZE Pool/Spa Heater by Zodiac
®
|
Installation and Operation Manual
Model
HeaterWidth
Dim"A"
VentingDimensions
FiringRate
VentDiameter
U.S.Outdoor
Dimension"H"
U.S.Indooror
CANOutdoorShelter
Dimension"H"
in. cm in. cm in. cm in. cm BTU/HR kcal/HR
125 15⅛ 38 6 15 18 46 24⅛ 61 125,000 32
175 18⅛ 40 6 15 18 46 24⅛ 61 175,000 44
250 22¾ 58 7 18 18¼ 47 25¼ 64 250,000 63
325 26⅞ 68 8 20 18⅞ 48 26½ 67 325,000 82
400 32⅜ 82 9 23 21½ 55 27½ 70 399,000 101
When requested, the heaters can be congured
and shipped for higher altitudes. For eld
conversions to change altitude congurations,
manifold kits for mid altitudes and high altitudes
are available from your Jandy pool products
dealer or by contacting the Zodiac Technical
Support Department at (800) 822-7933. See
Section 11, “Parts List”, of this manual for the
correct kit number for the manifold assembly
needed for your altitude. Table 1 denes the
altitude designations as described by the
“Standard for Gas Fired Pool Heaters”, ANSI
Z21.56 in the United States and "Gas Fired
Appliances For Use At High Altitudes", CAN
1-2.17 in Canada.
 

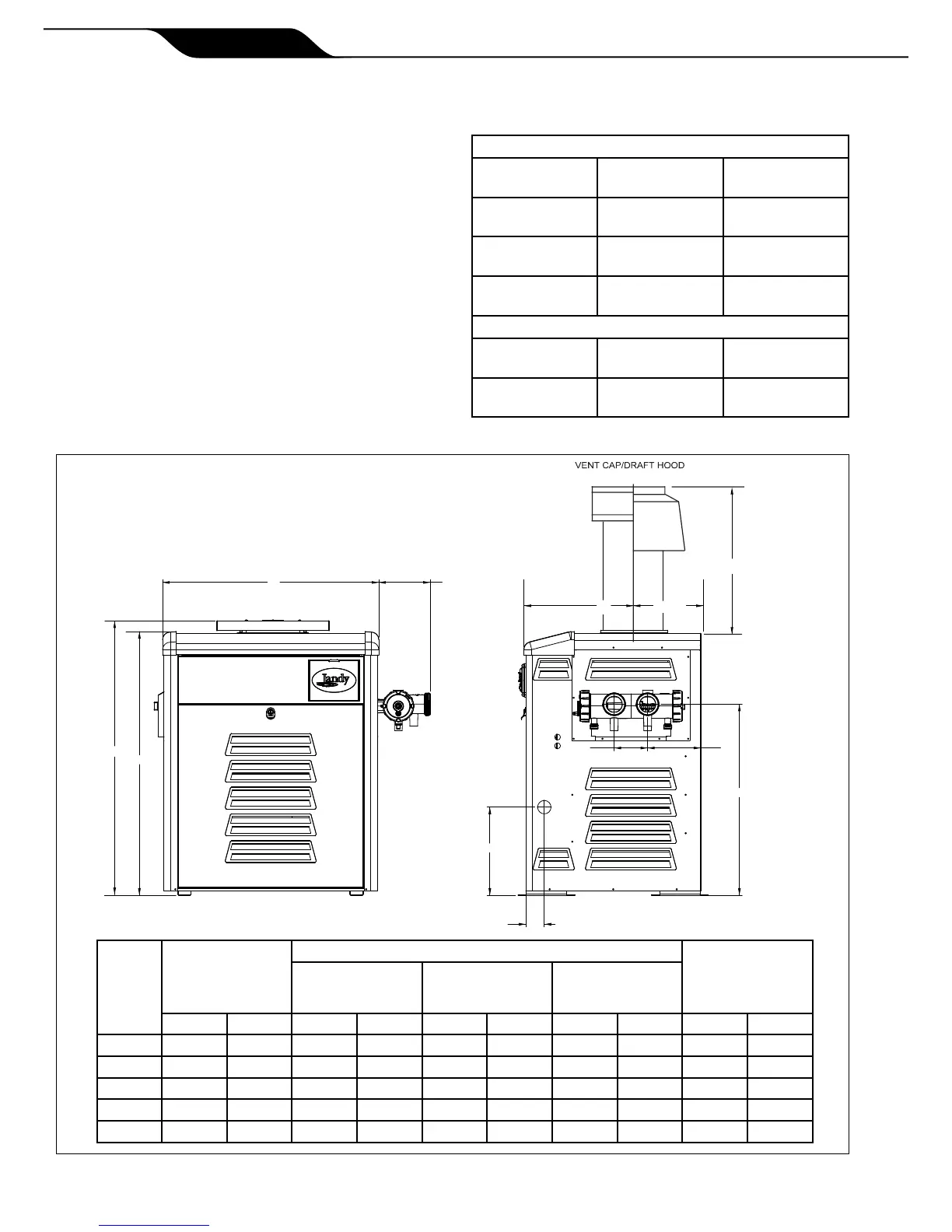

See Figure 1 for a diagram showing the heater's
exterior dimensions and dimensions to critical
connections on the heater.



NATURALGAS
ALTITUDE
DESIGNATION
UNITED
STATES
CANADA
LOWALTITUDE 0-3000FT 0-2000FT
(0-610m)
MIDALTITUDE
(H)
3001-6000FT 2001-4500FT
(611-1370m)
HIGHALTITUDE
(J)
6001-10,000FT NOT
APPLICABLE
LP
LOWALTITUDE 0-5000FT 0-4500FT
(0-1370m)
HIGHALTITUDE
(H)
5001-10,000FT NOT
APPLICABLE
A
7 5/8"
39 3/8"
2 3/4"
10 3/8"
16"
5"
8"
28 1/2"
13 1/8"
H
41"
