Installation and Operation Manual
|
Jandy
®
Legacy™ Model LRZE Pool/Spa Heater by Zodiac
®

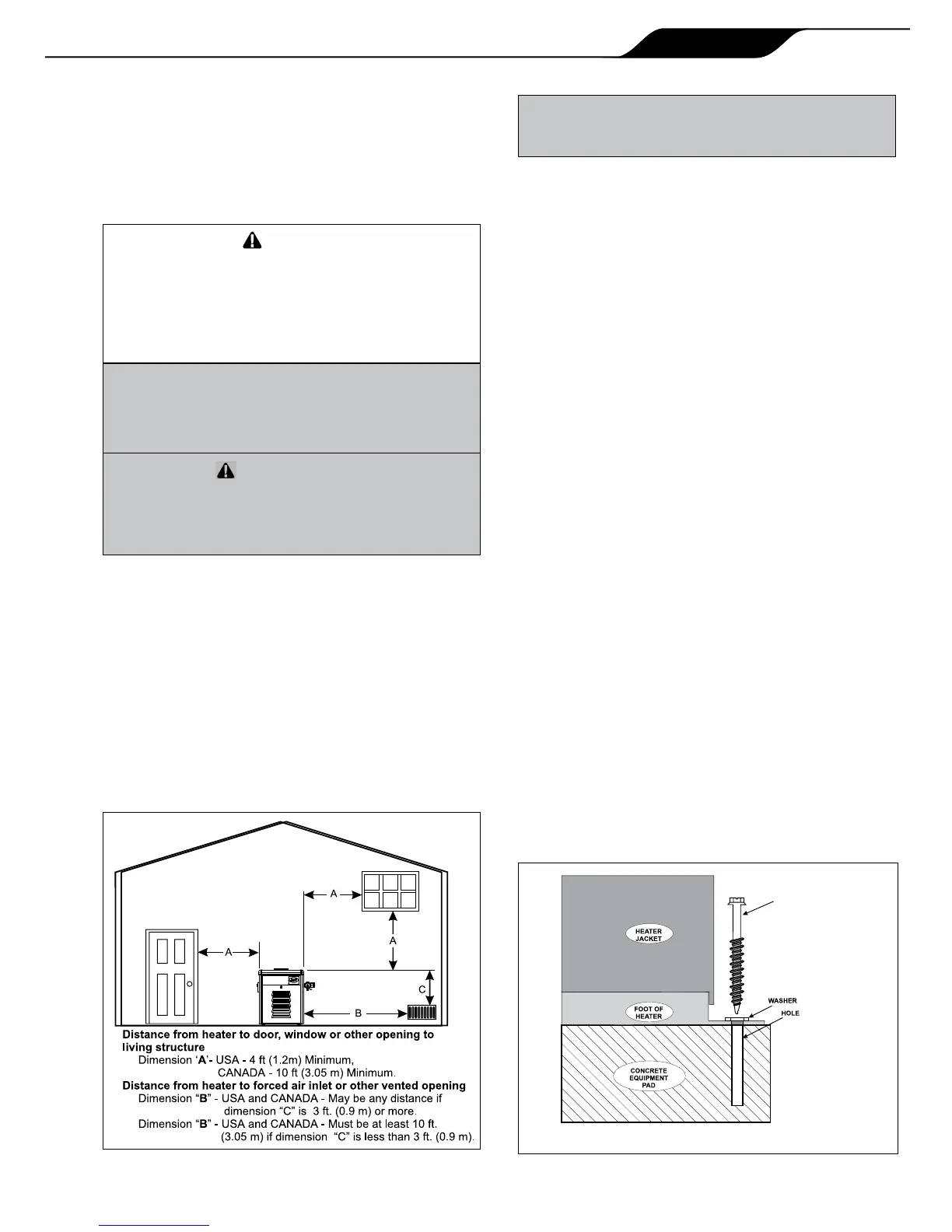

In the United States the vent system shall
terminate at least four (4) ft (1.2 m) below, four (4)
ft (1.2 m) horizontally from, or one (1) ft (300 mm)
above any door, operable window, or gravity inlet into
any building. In Canada, the heater must be installed
so that the exhaust point of the heater is at least 10.0
feet (3.0 m) from any building opening. See Figure 3.


Donotinstalltheheaterwiththetopofthevent
assemblywithin4feet(1.22m)horizontally,4feet
(1.22m)beloworlessthan1ft(300mm)aboveof
anyopeningintoabuilding.

Donotinstalltheheaterwiththetopofthevent
assemblywithin10feet(3.05m)ofanyopening
intoabuilding.
 
Lorsquevousinstallezl’appareildechauffage,as-
surez-vousquel’ouvertured’aérationsetrouveàun
minimumde10pieds(3.05m)detouteouverture
d’unbâtiment.
The top surface of the heater must be at least
three (3) feet above any forced air inlet, or intake ducts
located within 10 feet horizontally.
If the heater is installed under an overhang, there
must be a minimum clearance of ve (5) feet (1.5 m)
above the top of the heater and the structure should not
overhang the heater more than 12 inches (0.30 m). The
area under the overhang must be open on three sides.
This prevents combustion gases from being diverted
into living areas through doors, windows, or gravity
inlets.

Ne pas installer ce chauffe-piscine sous une
saillie mesurant moins de 3 pi de hauteur. La partie
sous la saillie doit être ouverte sur 3 côtés.
If the heater is installed close to a structure,
protect it from rain water runoff with rain gutters on
the roof or other measures. Do not locate the heater
near irrigation sprinkler systems that could spray water
on it. Water from sprinklers may cause damage to
controls and electronic components.
Avoid locations where wind deection off nearby
structures might cause downdraft conditions. Where
downdraft conditions exist, locate the heater at least
three (3) feet (0.91 m) from vertical surfaces (e.g.,
nearby buildings and walls).
In Florida, it is required that the heater be
securely fastened to the equipment pad. Use size
1/4" x 2-1/4" long galvanized or plated concrete
screws and washers at each of the four tabs located
at the base of the heater. Mounting the appliance in
this manner meets the applicable requirements of the
Florida Building Code.
Mounting screws are not provided with this
heater. After placing the heater on the equipment pad,
drill a hole in the concrete at each of the four tabs
on the feet of the heater. (The correct size drill bit
is usually provided with the concrete screws when
purchased). Place a screw in each of the holes and
fasten the heater to the equipment pad. See Figure 4.
Do not over-torque the screws.
 

An outdoor shelter (Canada only) is an
unoccupied enclosure which does not communicate
directly with occupied areas. All indoor installations
and outdoor shelter installations require a factory
approved draft hood. The draft hood must be installed
without modication and in accordance with the
instructions provided by the manufacturer.
1/4” X 2-1/4”
GALVANIZED OR PLATED
CONCRETE SCREWS

