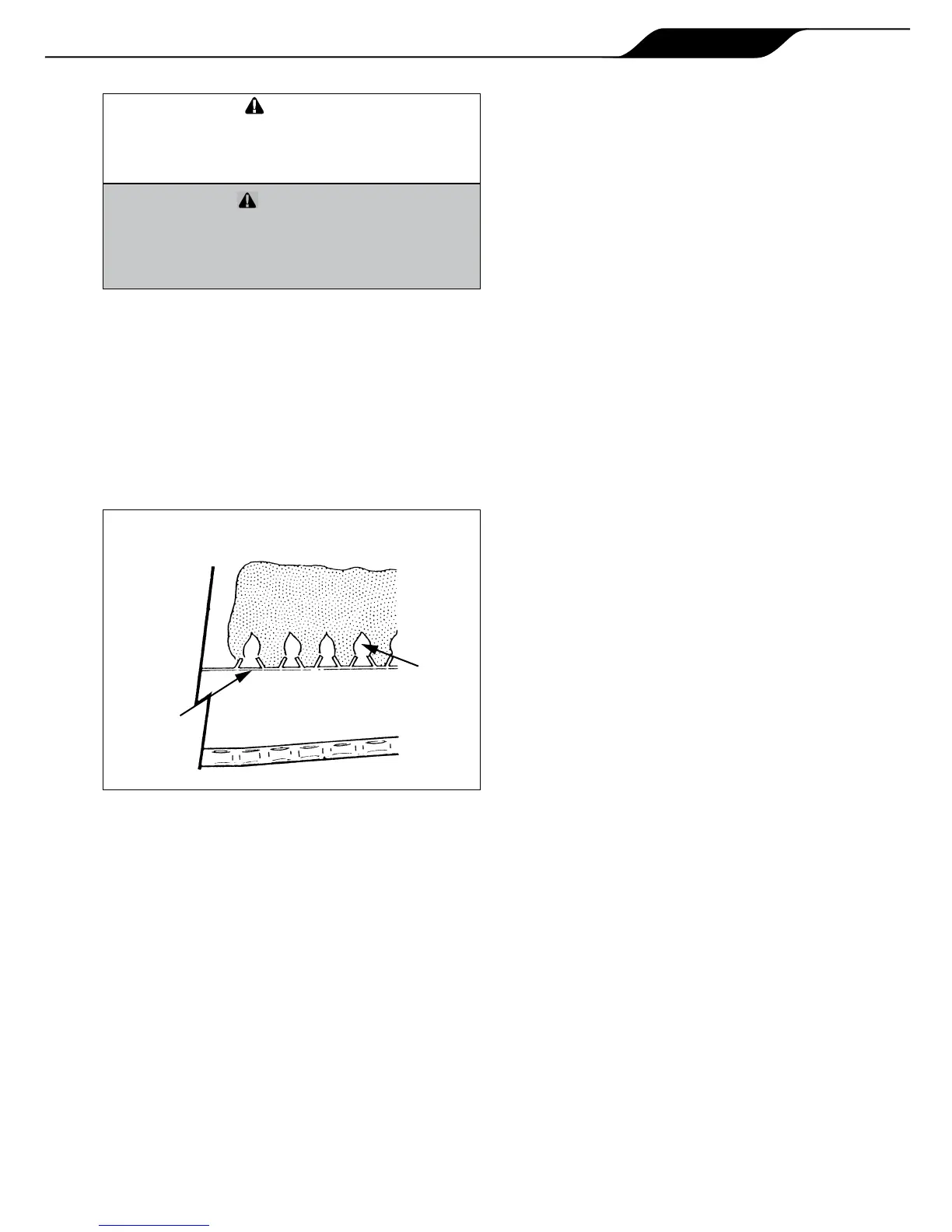

8. Make a visual check of the main burner ame.
The ame can be seen in a mirror arrangement
held beneath the burners. The ame should be:
a. Blue in color.
b. 1 to 4 inches (25mm to 102mm) above burner
surface. See Figure 26.
9. Perform a temperature rise test in accordance
with Section 7.8.

 
Table 8 lists some of the more common
problems, causes and solutions encountered when
running the heater. Most problems occur when
the heater is being started for the rst time after
installation or at spring start-up. Careful installation
and maintenance will help ensure years of trouble free
use from your Legacy heater.
 
The Legacy Model LRZ electronic controller
monitors several functions of the heater. In the event
of a malfunction, the Legacy controller will display a
FAULT message. Table 9 lists the Legacy Model LRZ
electronic Heater Service Codes along with potential
causes and remedies.

BURNER
FLAME
