Jandy LRZ Electronic - Section 6. Electrical; 6.1 General Information; 6.2 Main Power

Page 22
ENGLISH
Jandy
®
Legacy™ Model LRZE Pool/Spa Heater by Zodiac
®
|
Installation and Operation Manual


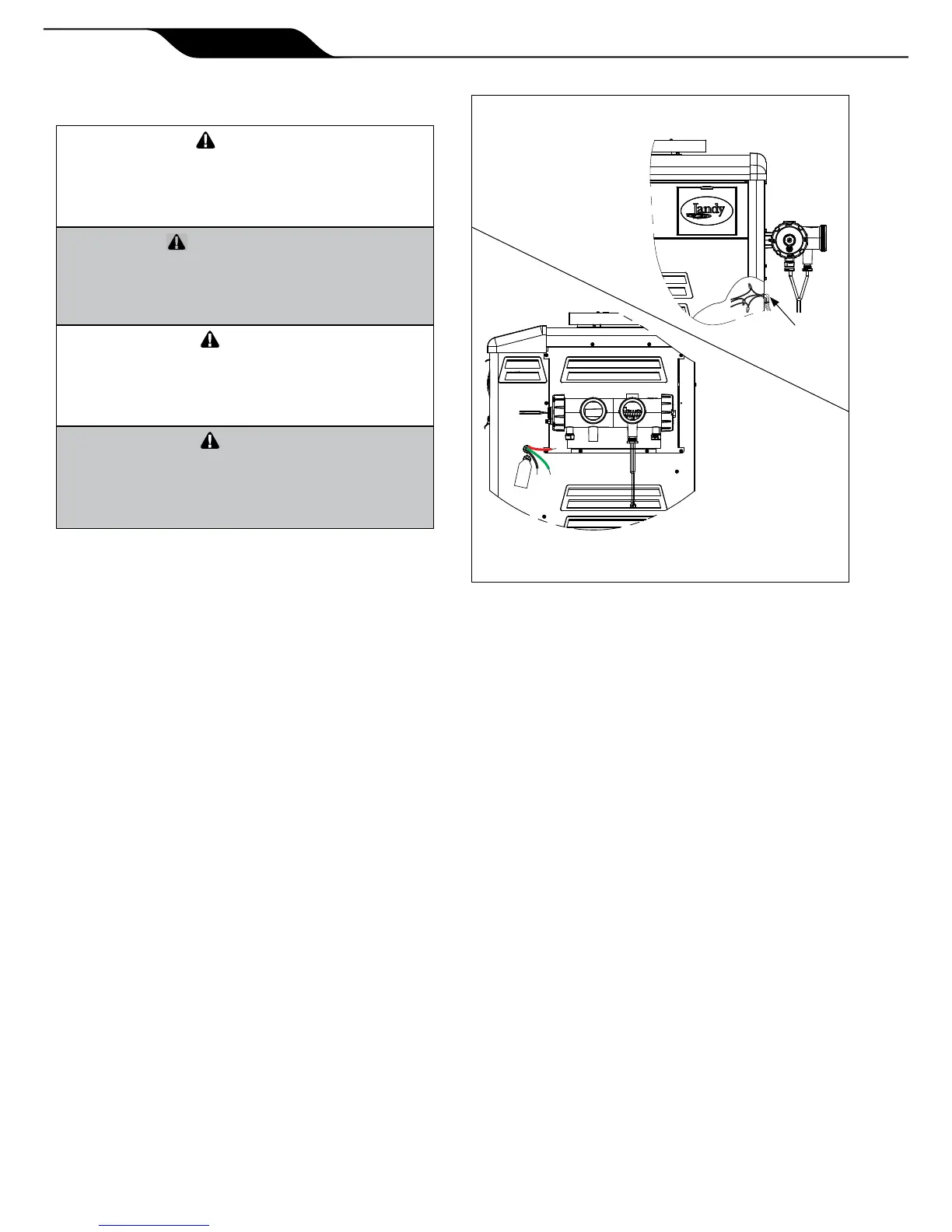

CONNECTWIRES
INSIDEHEATER
CONDUIT
ELBOW
WIRESAS
SHIPPED

 
Labelallwirespriortodisconnectionwhenservicing
controls.Wiringerrorscancauseimproperand
dangerousoperation.Verifyproperoperationafter
servicing.
 
Labelallwirespriortodisconnectionwhenservicing
controls.Wiringerrorscancauseimproperand
dangerousoperation.Verifyproperoperationafter
servicing.


POSSIBILITÉDECHOCSÉLECTRIQUES.Ce
systèmedechauffagecontientdulagedehaut
voltage.Uncontactavecceslspeutrésulteren
desblessuressérieusesoulamort.

Thisheater
containswiringthatcarrieshighvoltage.Contact
withthesewiresmayresultinsevereinjuryor
death.
 
Wiring connections must be made exactly as
shown in the wiring diagram found on the inside of the
heater door, see Figure 16. The heater must include a
denite means of grounding. There is a bonding lug on
the right side of the heater, where a bond wire must be
attached.
 
Electrical wiring must be in accordance with the
latest edition of the National Electric Code
®
(NEC),
ANSI/National Fire Protection Association (NFPA)
70, unless local code requirements indicate otherwise.
In Canada, the Canadian Electrical Code
®
(CEC, CSA
C22.1 No 1) must be followed.
The heater comes factory-wired intended for
use with 240 Volt, 60 Hz AC eld electrical supply.
To use 120 Volt, 60 Hz AC requires rewiring of the
heater. This must be done by a certied electrician
only, as with all wiring. To wire the heater for 120V,
60 Hz AC, follow the alternate 120V wiring method
depicted in Figure 16. Additionally, the ignition
control module must be rewired. The wire from the
terminal marked IGN/240 must be removed and placed
on the terminal marked IGN/120.
To wire the Legacy Model LRZ electronic heater
to a 120V or 240V /60 Hertz (Hz) electrical source:
1. Remove the door of the heater.
2. Connect the wires from the power source to the
leads on the right side of the heater in the space
behind the raceway. See Figure 15.
3. Connect a bonding wire (8ga copper) to the
bonding lug on the right side of the heater.
