Connection options
In the factory the UMG507 is preset for mea-
surement in systems with N (four-wire mea-
surement).
0 = Four-wire measurement
1 = Measurement without N
Factory setting: 0
Configuration
1
Press 2 times.
The Select text
flashes.
The current
transformer set-
ting is displayed.
1
Press once.
The first digit
flashes.
Programm connection options
The value for the connection options is directly
transferred to the address 6289.
SELECT CT
CONF
A
A
2
Press once.
The Select text disappears.
The device is in Programming mode.
3
Press 9 times.
Switch to the „Free parameter input“ menu
item.
Enter the address 6289 first and then the re-
quired value.
Change digit.
3
Select digit.
1
Address
Value
CONF
CONF
EDIT

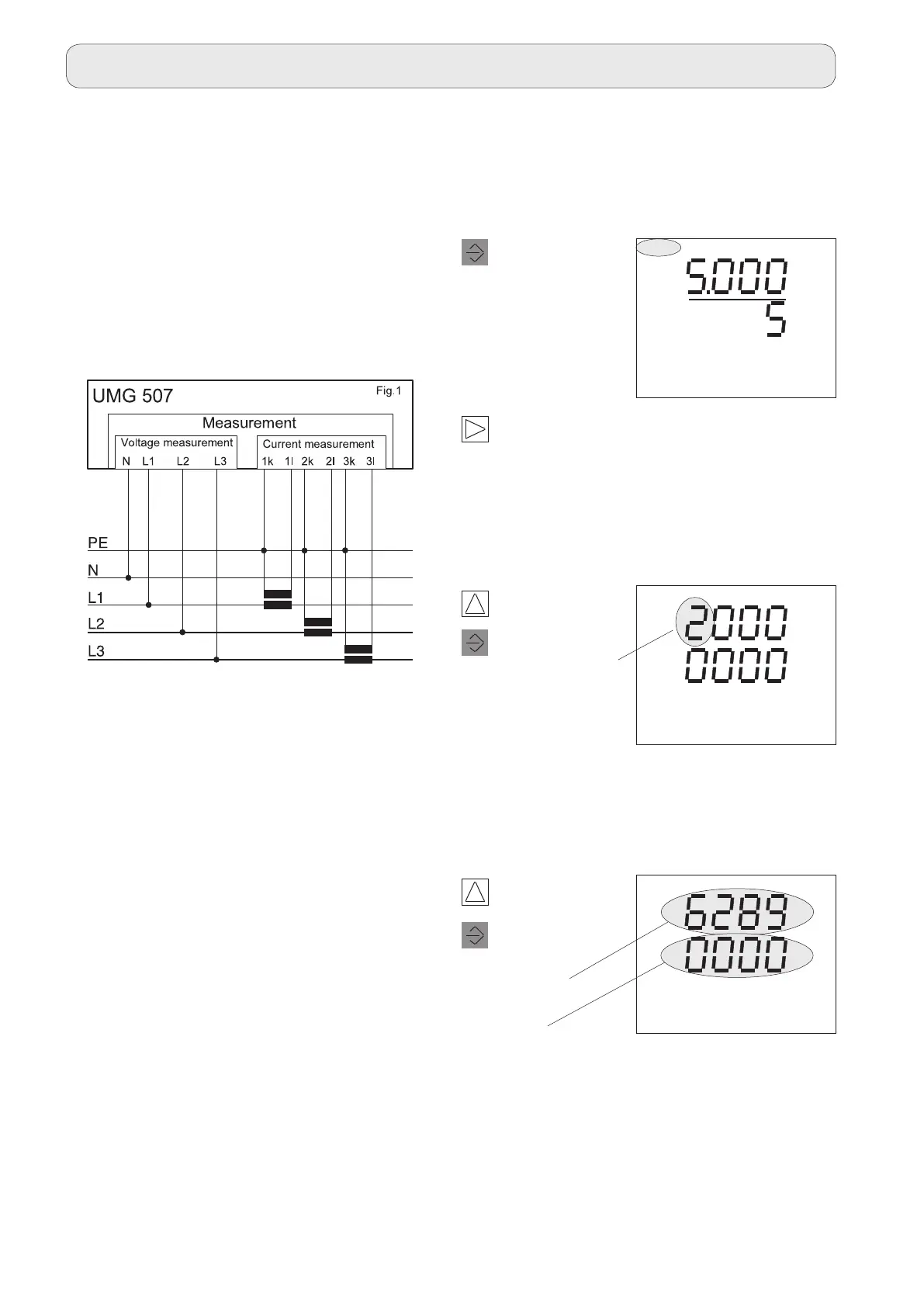

Fig.1 Three-phase measurement with PEN
conductor. (four-wire measurement)
