janitza UMG507 - Brief Instructions

48
Secondary current
Secondary voltage
Set current transformer
Brief Instructions
CT
CONF
A
A
VT
CONF
V
V
Set voltage transformer
Primary current
Primary voltage
2
1
3
1
1
2
2 x
1 x
2 sec.

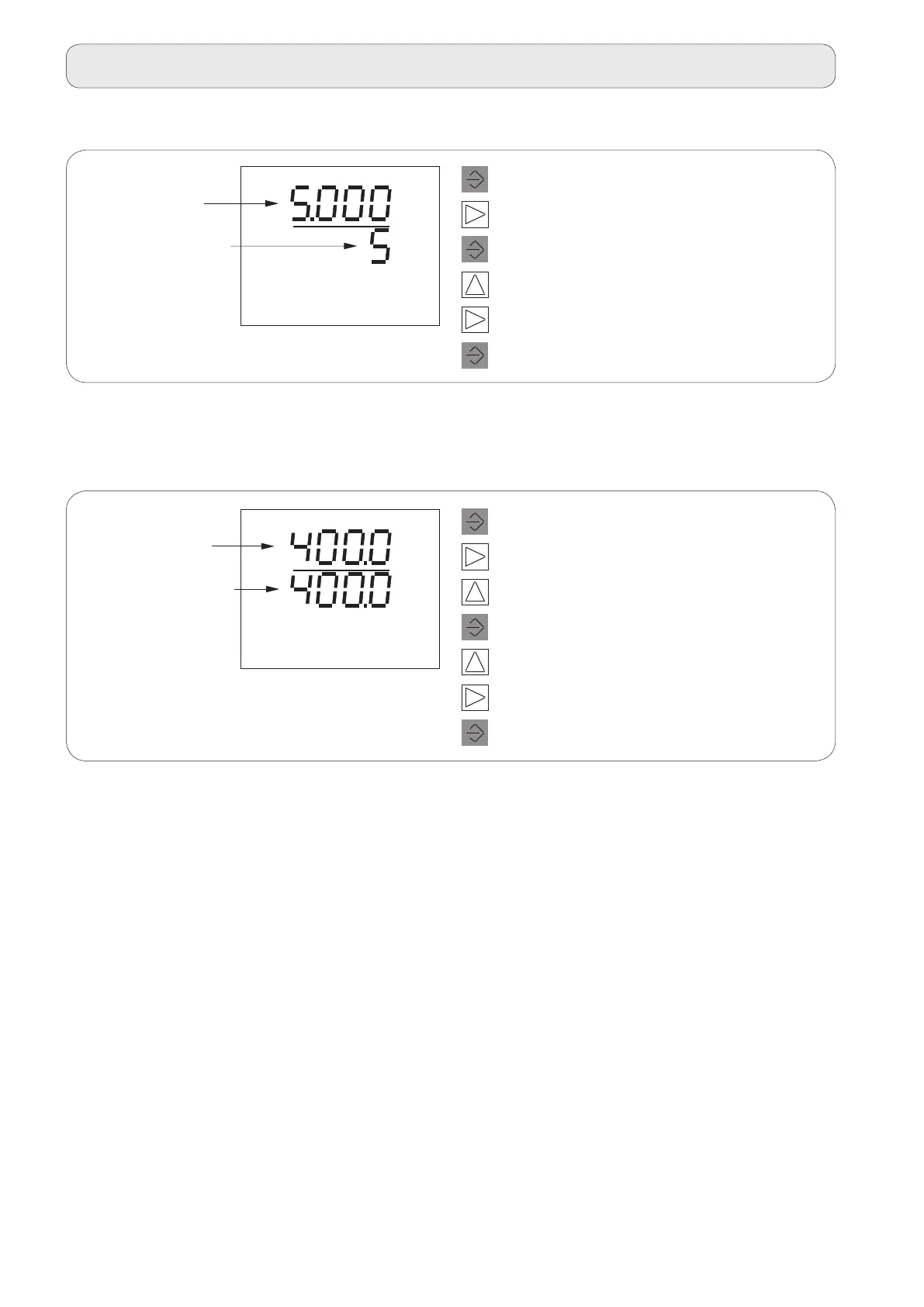

Select programming menu.
Select current transformer.
Select digit.
Change digit.
Shift decimal point.
Save and display measured value.
2 x
1 x
2 sec.
Select programming menu.
Select voltage transformer.
Select digit.
Change digit.
Shift decimal point.
Save and display measured value.
1
2
1
3
2
1
3
1 x
Confirm selection.
