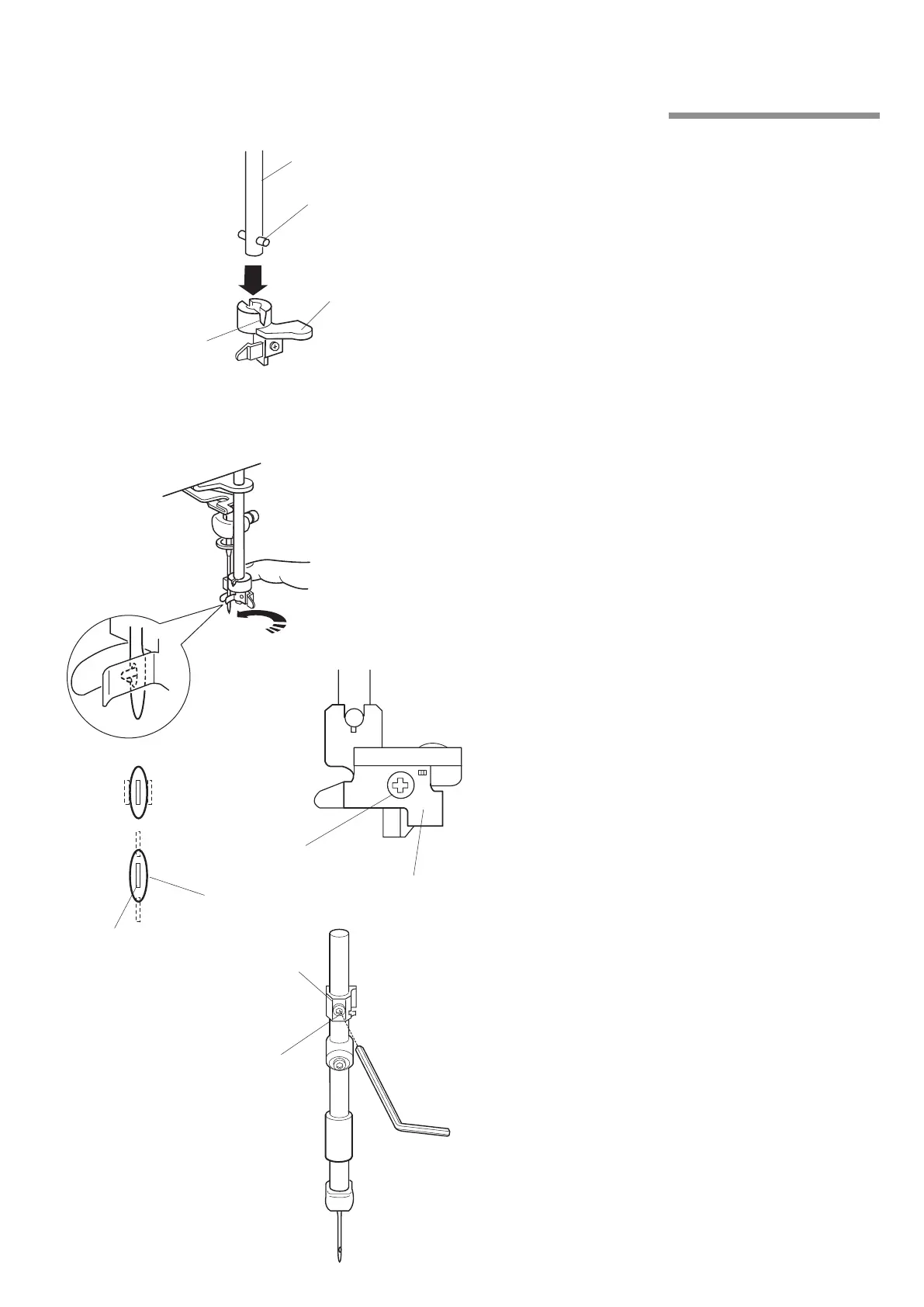

14. Needle Threader
To remove:
Remove the face plate.
Pull the threader
q
out from the threader shaft
w
.
To attach:
Align the groove
e
of the threader with the pin
r
on
the threader shaft. Push the threader up until it snaps
in place.
To adjust:
If the threader hook
q
thrusts or hits against either
left or right edge of the needle eye
w
:
Loosen the setscrew
e
. Move the threader plate
r
to adjust the lateral position of the threader hook
q
.
If the threader hook
q
thrusts or hits against either
top or bottom edge of the needle eye
w
, or misses
the needle eye
w
:
Loosen the setscrew
t
. Move the threader position
setting plate
y
up or down to adjust the vertical
position of the threader hook
q
.
