7. Driving Motor

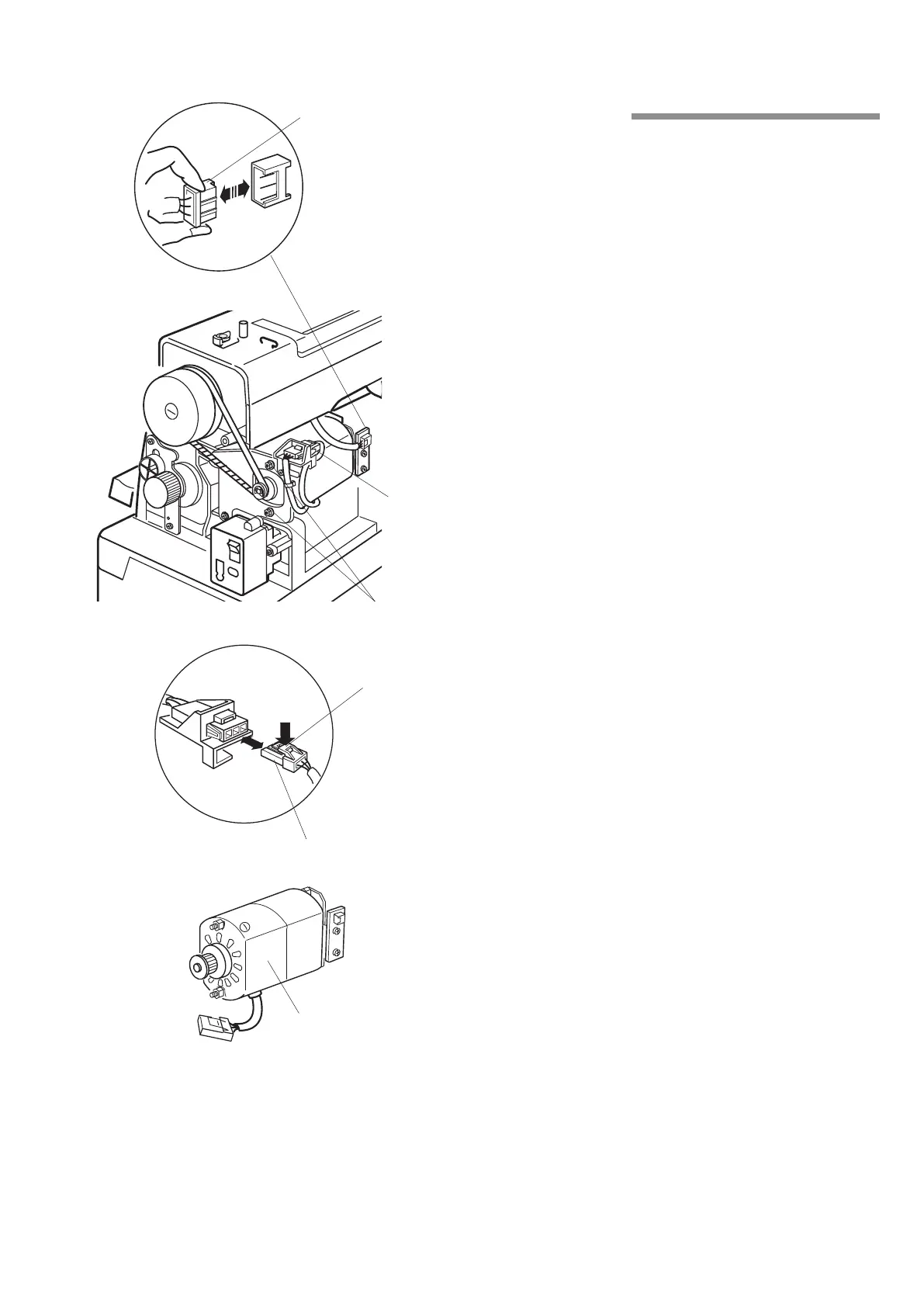

To remove:
Remove the belt cover and motor cover.
Pull out the motor sensor connector
q
.
Pull out the motor connector
w
, while pushing the
connector lock
e
.
Remove the nuts
r
and driving motor
t
.
NOTE:
Do not disconnect the connectors by pulling on cord.
To disconnect, grasp the connector, not the cord.
(to be continued on next page.)
