Janome HD9 - Power Transformer; Machine Socket

20

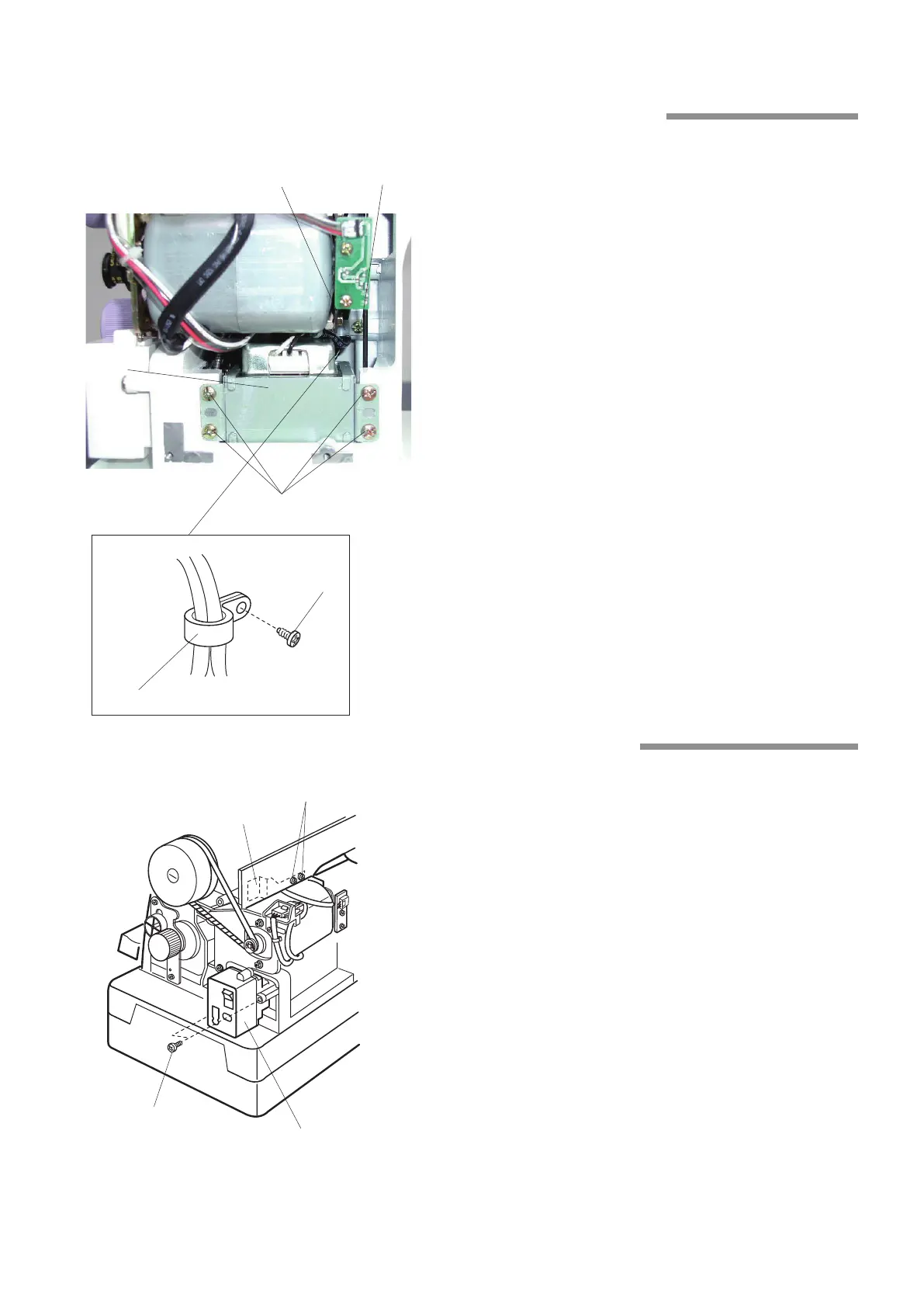

10. Power Transformer
To remove:
Remove the top cover and motor cover.
Remove the printed circuit board A case and pull out
the transformer connectors (primary and secondary)
from the printed circuit board A.
Remove the driving motor.
Remove the setscrew
q
and cord binder
w
.
Remove the setscrews
e
and transformer
r
.
To attach:
Follow the procedure above in reverse.
11. Machine Socket
To remove:
Remove the top cover, belt cover and motor cover.
Remove the printed circuit board A case and pull out
the machine socket connectors (primary and
secondary) from the printed circuit board A.
Remove the setscrews
q
and cord guide (1)
w
.
Remove the setscrews
e
and machine socket
r
.
To attach:
Follow the above procedure in reverse.
z
z
x
x
c
c
v
v
b
q
q
w
w
e
r
q
w
e
r
