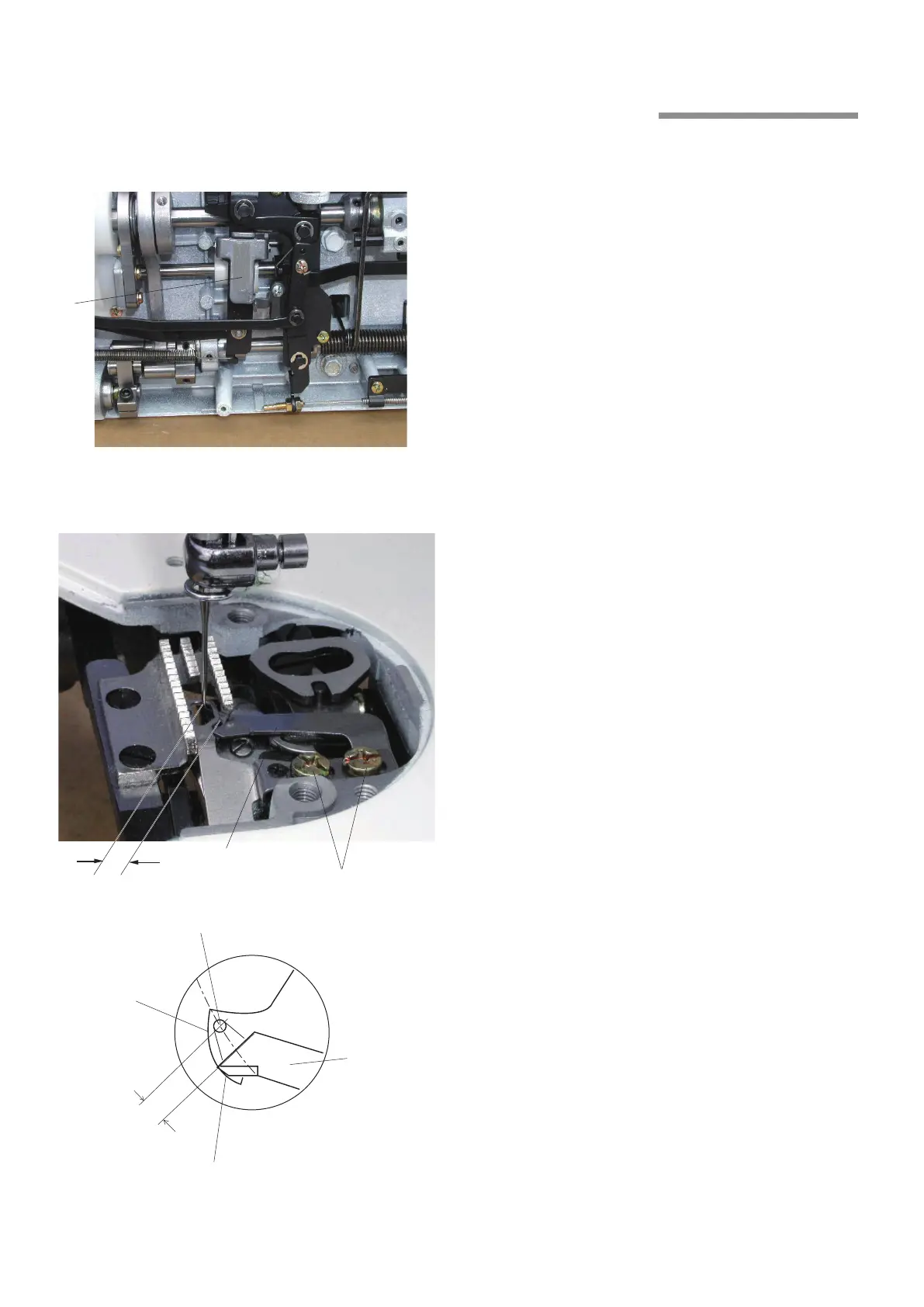

3. Static Cutter Blade
Remove the needle plate and base.
Lower the needle bar to the lowest position.
Turn the handwheel toward you while pushing up the
link body
q
to engage the thread cutter blade
w
and
bring it under the static blade
e
.
Loosen the setscrews
r
and adjust the position of the
static cutter blade
e
so that the distance between the
center of the needle drop position
t
and the static
cutter blade
e
is 4 mm and the left edges of the
static blade and thread cutter blade are aligned.
Tighten the setscrews
r
. Attach the needle plate and
base.
z
x
c
v
q
4 mm
w
t
e
Align the left edges of the thread cutter
blade and the static cutter blade.
e
r
4 mm
