Janome HD9 - Thread Drawing Lever

26
5. Thread Drawing Lever

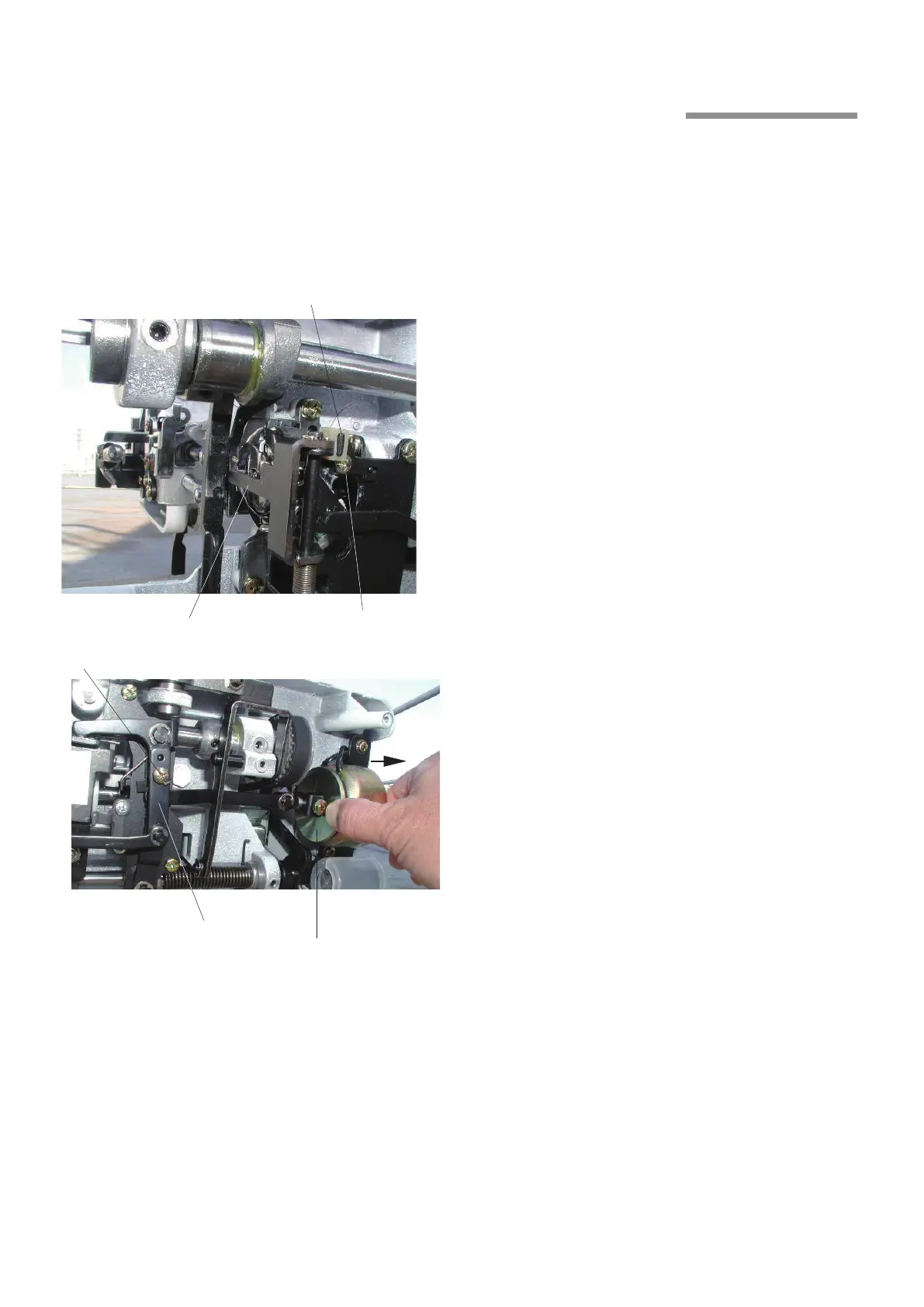

Remove the base.
Loosen the setscrew
q
and free the stopper
w
.
Turn the the handwheel toward you to raise the
needle bar from the lowest position until the needle
point is 10.5 mm above the upper surface of the
needle plate.
Push the solenoid disk
e
fully to swing the thread
drawing lever
r
.
Loosen the setscrew
t
and move the thread drawing
arm
y
to the left or right so that the tip of the thread
drawing lever
r
lightly contacts with the bobbin.
Tighten the setscrew
t
.
Restore the stopper
w
and press it against the thread
drawing lever
r
, while pushing the solenoid disk
e
.
Tighten the setscrew
q
firmly.
Attach the base.
