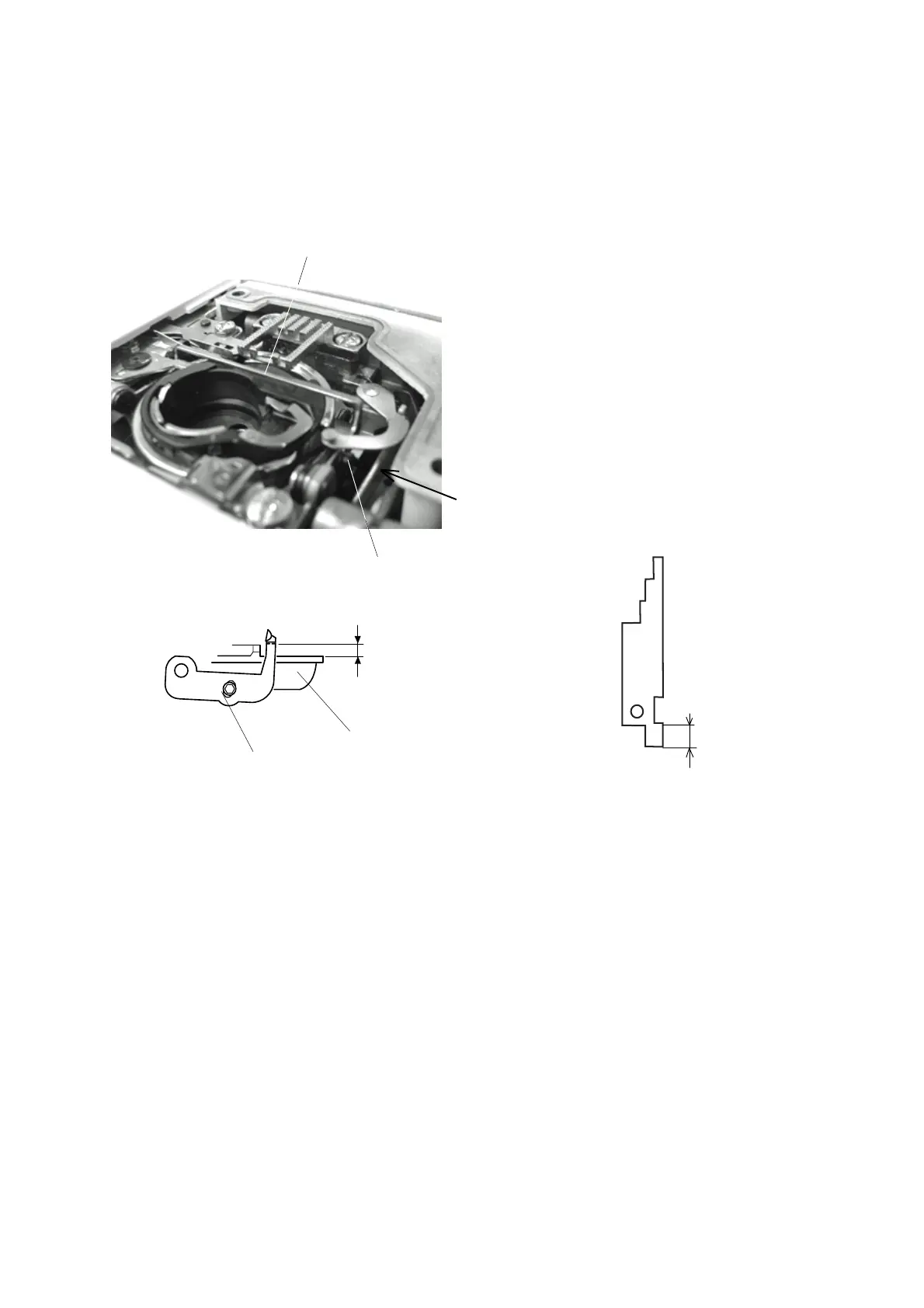

THE MAXIMUM HEIGHT OF THE THREAD DRAWING LEVER SHOULD BE BETWEEN 5.5 TO
5.7 MM.
TO ADJUST THREAD DRAWING LEVER
1 REMOVE THE NEEDLE PLATE.
2 LOOSEN THE HEXAGONAL SOCKET SCREW.
WHEN THE THREAD DRAWING LEVER IS AT THE
HIGHEST POSITION, ADJUST THE DRAWING
LEVER SO THE DISTANCE BETWEEN BOBBIN
HOLDER AND THE DRAWING LEVER IS 5.6 MM.
3 TIGHTEN THE HEXAGONAL SOCKET SCREW.
4 ATTACH THE NEEDLE PLATE.
THREAD DRAWING LEVER
HEXAGONAL SOCKET SCREW
5.5 TO 5.7 MM
HEXAGONAL
SOCKET SCREW
BOBBIN HOLDER
VIEW A
VIEW A
26
5.6 MM
(GAUGE 846-G01)
