Janome MC6600 - TO ADJUST UPPER CLUTCH SOLENOID

TO ADJUST UPPER CLUTCH SOLENOID
5 MM
SETSCREW

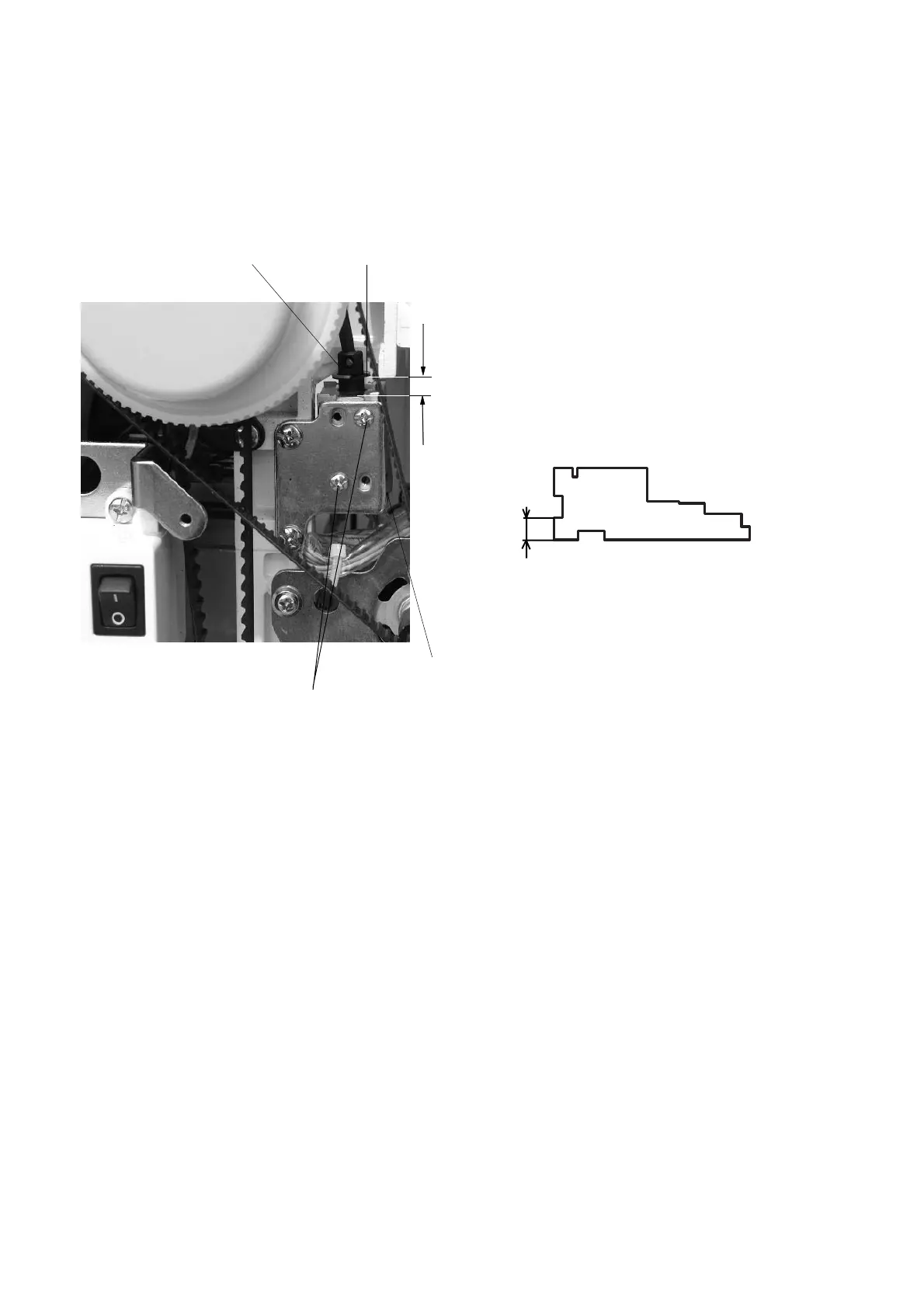

THE CLEARANCE BETWEEN THE SNAP RING E ON THE PLUNGER AND THE YORK
SHOULD BE 5 MM.
1 REMOVE THE BELT COVER.
2 LOOSEN THE SETSCRWS. ADJUST THE
YORK SO THAT THE CLEARANCE BETWEEN
THE SNAP RING E AND YORK IS 5 MM.
3 TIGHTEN THE SETSCREW.
4 ATTACH THE BELT COVER.
PLUNGER
YORK
SNAP
RING E
40
5 MM
(Gauge 860G001)
