Janome MC6600 - ADJUSTMENT OF PRESSER BAR LIFTER SWITCH POSITION

Step3
Switch
SP FL CL DD
UPOFFUPOFF
TD
OFF

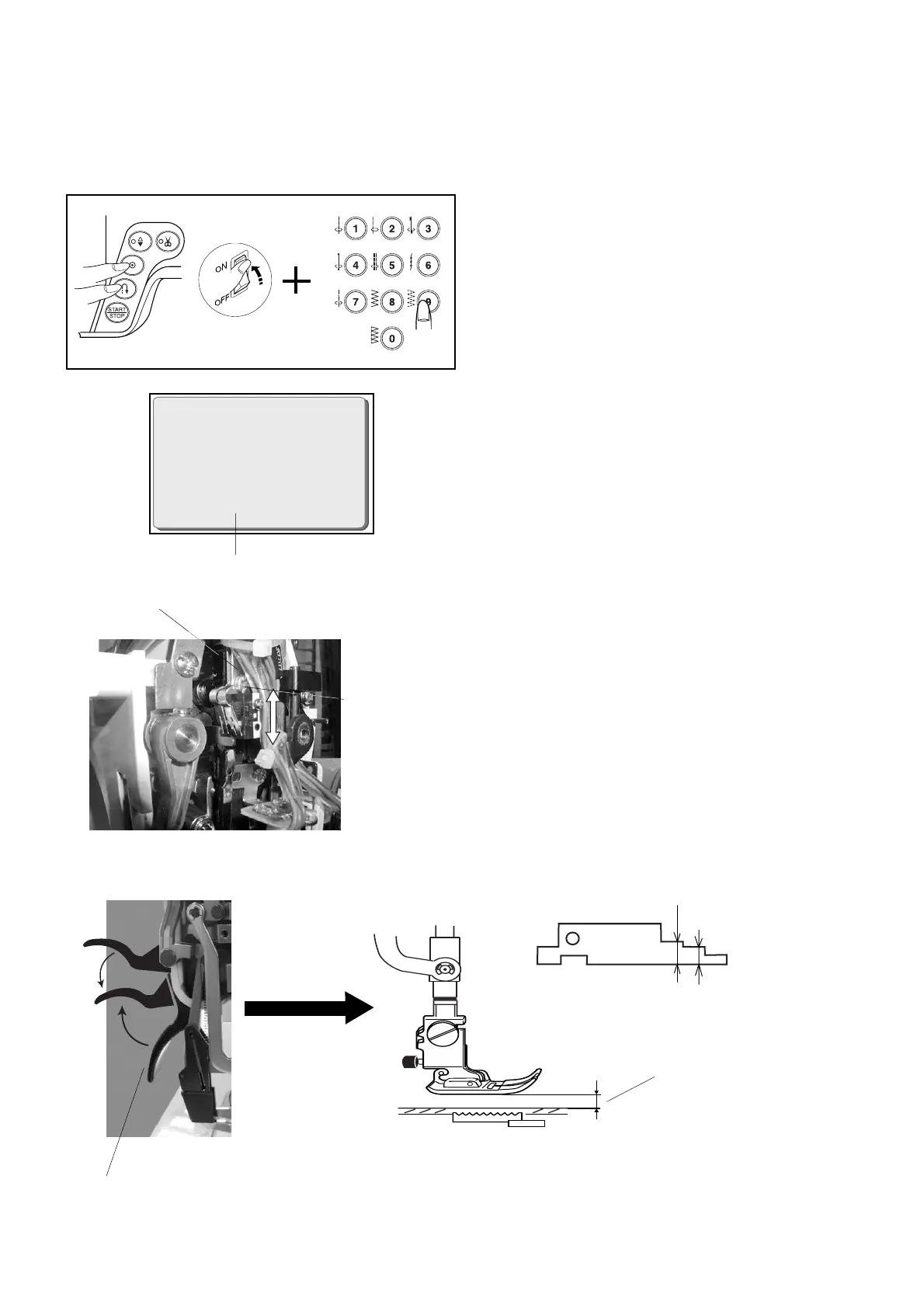

ADJUSTMENT OF PRESSER BAR LIFTER SWITCH POSITION
1 WHILE THE PRESSING THE NEEDLE UP/DOWN
AND LOCK STITCH BUTTONS, TURN THE POWER
SWITCH ON. PRESS THE NUMBER ì9î BUTTON IN
3 SECONDS.
2 REMOVE THE FACE PLATE AND TOP COVER
PLATE.
3 WHEN THE PRESSER BAR IS LIFTED OR LOW-
ERED, THE DISPLAY (A) SHOWS ìUPî OR
ìDOWNî RESPECTIVELY. IF NOT, LOOSEN THE
SETSCREW (A) AND ADJUST THE POSITION OF
THE SWITCH SET PLATE SO THAT THE
DISPLAY(A) CHANGES ìUPî TO ìDOWNî OR VICE
VERSA, WHEN THE CLEARANCE BETWEEN THE
FOOT AND NEEDLE PLATE IS 4 TO 5.5 MM BY
LOWERING OR RAISING THE PRESSER FOOT
LIFTER.
4 TURN OFF THE POWER SWITCH.
5 ATTACH THE TOP COVER PLATE AND FACE
PLATE.
DISPLAY (A)
DISPLAY (A) SHOULD
CHANGE WHEN THE
CLEARANCE IS 4 TO 5.5 MM.
PRESSER
BAR LIFTER
PRESSER BAR LIFTER SWITCH
SETSCREW (A)
38
4 - 5.5 MM
5.5 MM
4.0 MM
(GAUGE 846-G01)
