MC 9500

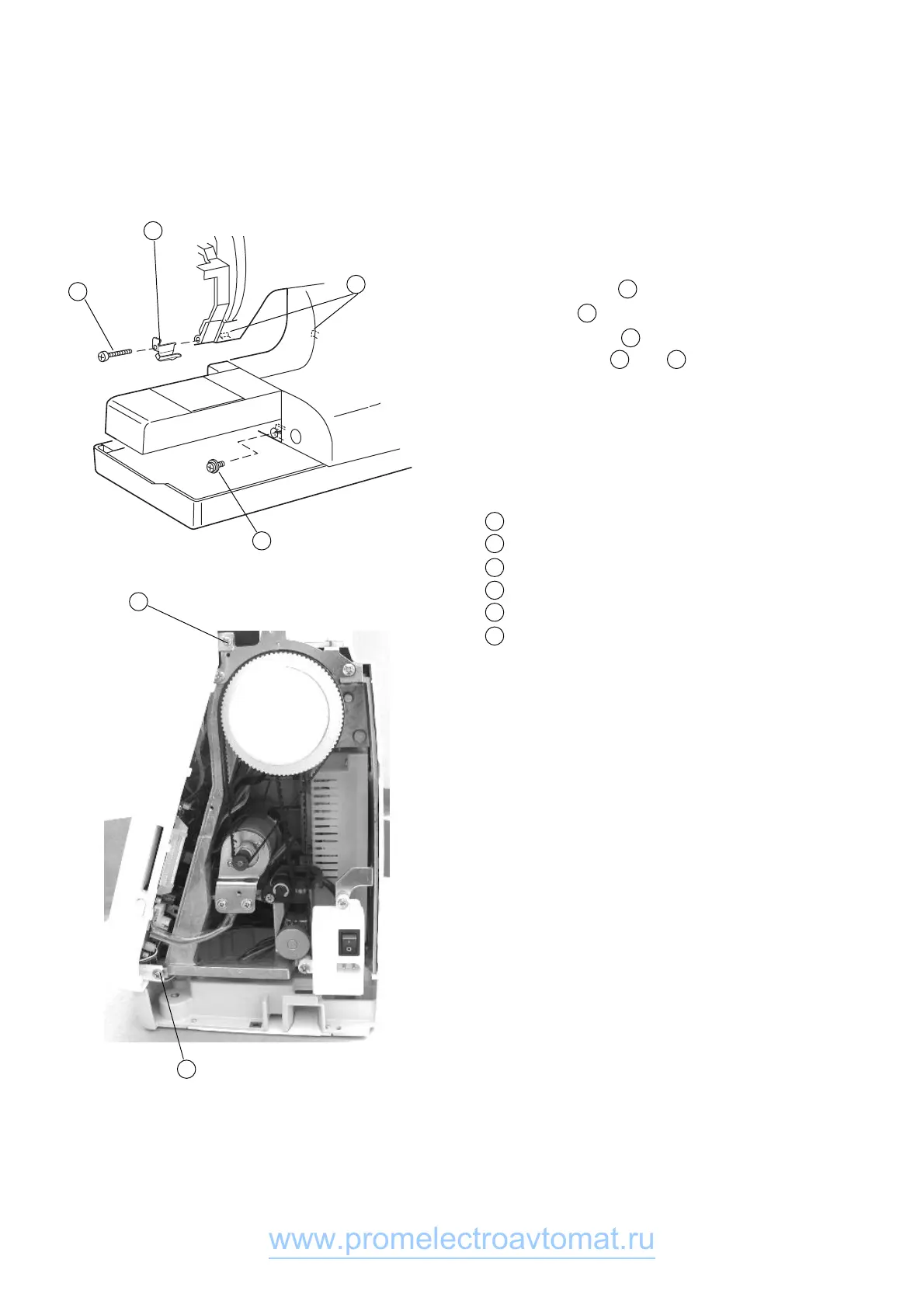

Changing External Parts (6) Front Cover
To remove:
1 Remove the top cover, base cover and bed cover.
(See page 1 - 4).
2 Remove Screw (A) and remove the Arm thread
guide (lower) .
3 Remove Screw (B) .
4 Loosen Screw (C) , (D) .
5 Disconnect the each connector and remove the front
cover.
Note: Unlock the Hooks before removing the front cover.
Screw (A)
Arm thread guide (Lower)
Screw (B)
Screw (C)
Screw (D)
Hooks (2 spots)
To attach:
6 Follow the above procedure in reverse.
Note: See page 22 (Diagram) for “Connectors
Connection”.
Front cover
1
2
2
1
4
3
6
5
3
4 5
1
2
3
4
5
6
