EVOLVE 200 USER MANUAL
28
2.8 MIG welding function instructions

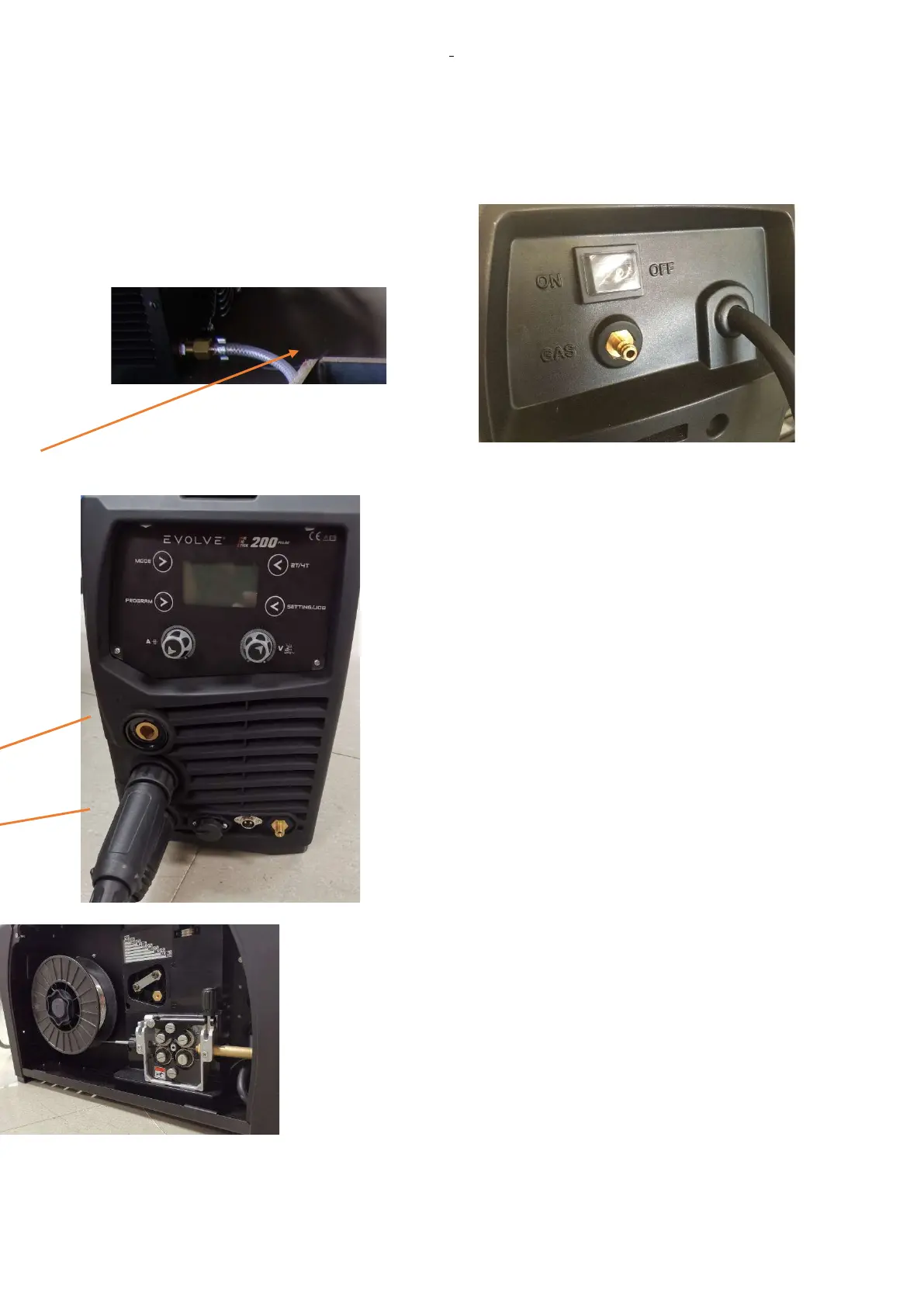

2.8.1 MIG WELDING connection caption
Connect the gas bottle to gas input nipple on the back side.
Connect the MIG gun to the socket.
Connect the earth cable of workpiece to the negative polarity.
Push the wire between the driving rolls up to see it outside the euro torch
connector. Close the upper rolls with the shaft.
Check if the driving rolls match the appropriate wire diameter.
