JCM DBV-400 SD - Figure 1-9 DBV-400 Unit with Compatible Type Bezel Outside Dimensions

P/N 960-000180R_Rev. 1 {EDP #233427} © 2016, JAPAN CASH MACHINE CO., LTD.
1-10
Section 1 DBV® Series DBV-400 Banknote Validator General Information
Entire Unit Outside Dimensions (Continued)

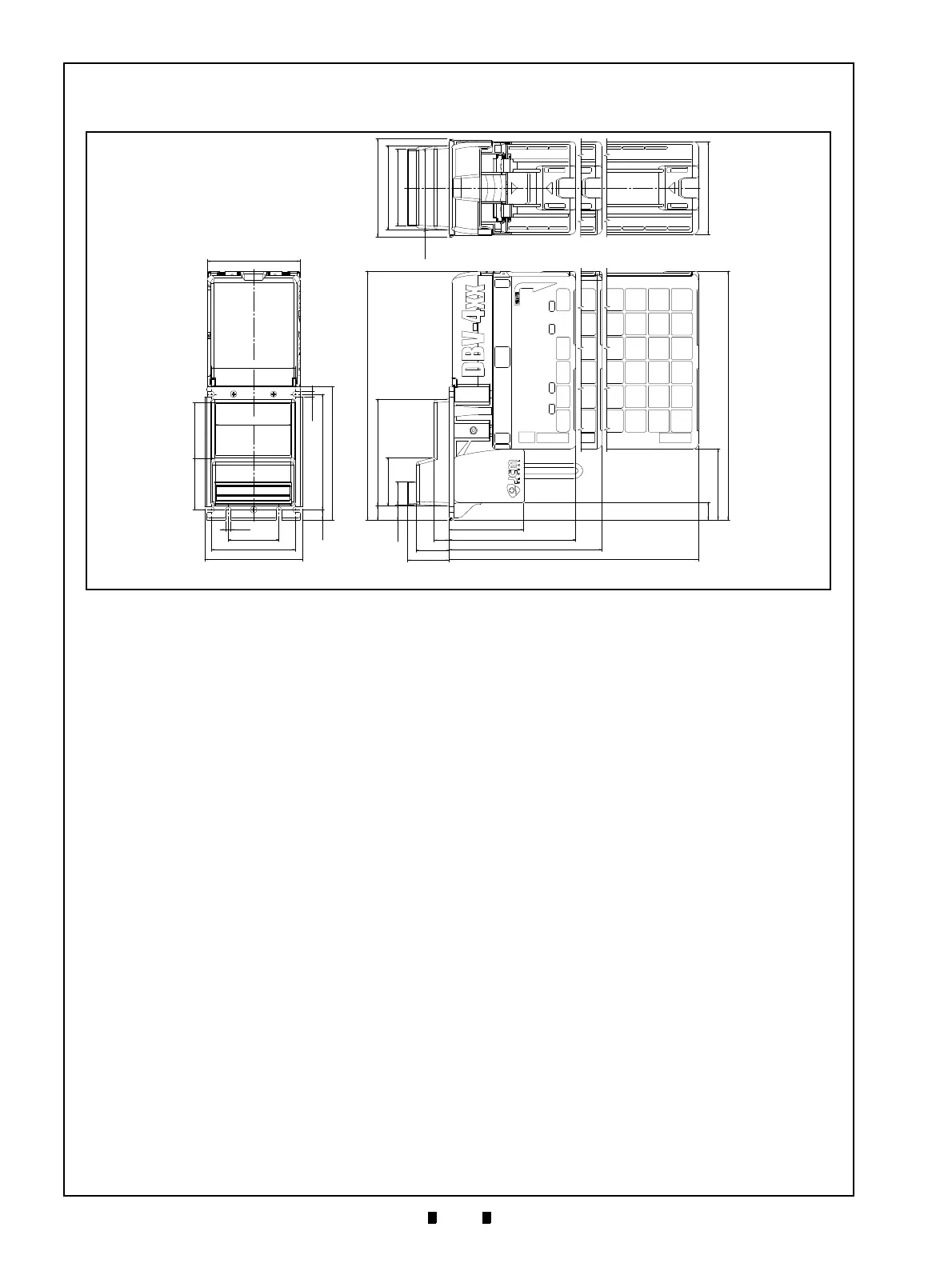

Figure 1-9 illustrates the DBV-400 Unit with Compatible Type Bezel outside dimensions.
Figure 1-9 DBV-400 Unit With Compatible Type Bezel Outside Dimensions
Figure 1-9 DBV-400 Unit With Compatible Type Bezel Outside Dimensions
NOTE: All dimensions in millimeters
