Appendix A DBV® Series DBV-400 Banknote Validator Troubleshooting
Maintenance Equipment
This section provides product information for the DBV-400 Maintenance Equipment.
Table A-6 Additional Maintenance Equipment Parts List
Ltr.
EDP No.
*
*. A Product EDP Number that begins with a “G” is a Product developed by JCM-E Germany.
JAC No. Description Qty. Remark
a 238678 ← Use EDP# Reference Paper (KS-095A) 1
b 239641 ← Use EDP# Main Frame Assy. Disassembly Tool 8
c 239642 ← Use EDP# Cash Box Disassembling Tool 8
d G00205 501-100218R UAC Module 1
e G00230 400-100249R UAC USB Cable 1
f GA0012 ← Use EDP# DBV-400 UAC Harness (ID003) 1
g G00213 302-100007RA Power Cord (USA or Euro) 1
For AC Adapter
h G00286 ← Use G# AC Power Adapter 1
For UAC

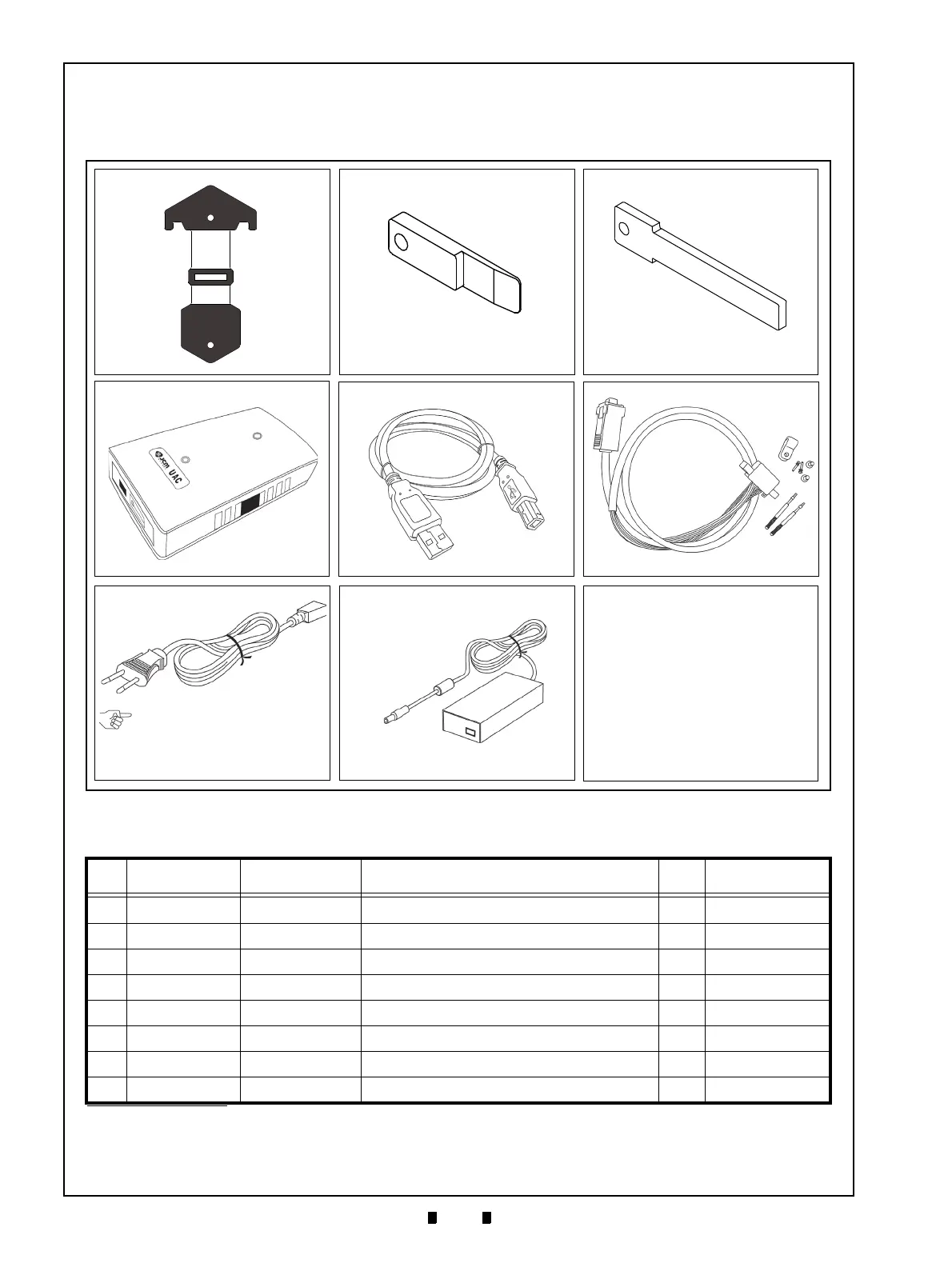

Figure A-1 Additional Maintenance Equipment Requirements
DBV-400 Maintenance Equipment
Figure A-1 Additional Maintenance Equipment Requirements
d
e
c
a
b
f
g
e
h
Only the European Connector
Version is shown here. Order
the “JAC No.” for the USA
Style AC Wall Plug.
To Next Page
