JCM DBV-400 SD - DBV-400 Validation Guide Cover Assy. Exploded View; DBV-400 Validation Guide Cover Assy. Parts List; Figure 7-4 DBV-400 Validation Guide Cover Assy. Exploded View; Table 7-4 DBV-400 Validation Guide Cover Assy. Parts List

P/N 960-000180R_Rev. 1 {EDP #233427}_Feb. 12, 2020 © 2020, JAPAN CASH MACHINE CO., LTD.
7-7
Exploded Views and Parts Lists DBV™ Series DBV-400 Banknote Validator Section 7
DBV-400 Validation Guide Cover Assy. Exploded View
DBV-400 Validation Guide Cover Assy. Parts List
Table 7-4 DBV-400 Validation Guide Cover Assy. Parts List
Ref No. EDP No. Description QTY Remark
300 244551
Validation Guide Cover D4
1
301 237715 KB5201-JC22LF Side Sensor 1
302 237714 KB5201-JC12LF Side Sensor 1
303 237718 Inside Validation Sensor Board (4107-3520-003x-01x)
1
304 148572
2x6 Phillips, Self-Tapping, Truss Head Screw
*
*. P-TITE is recommended.
4
305 237716 Side Sensor Harness (3520-05-006x) 2
306 091523 2x5 Self-Tapping, 4.5 H5 LAMIX Screw 2

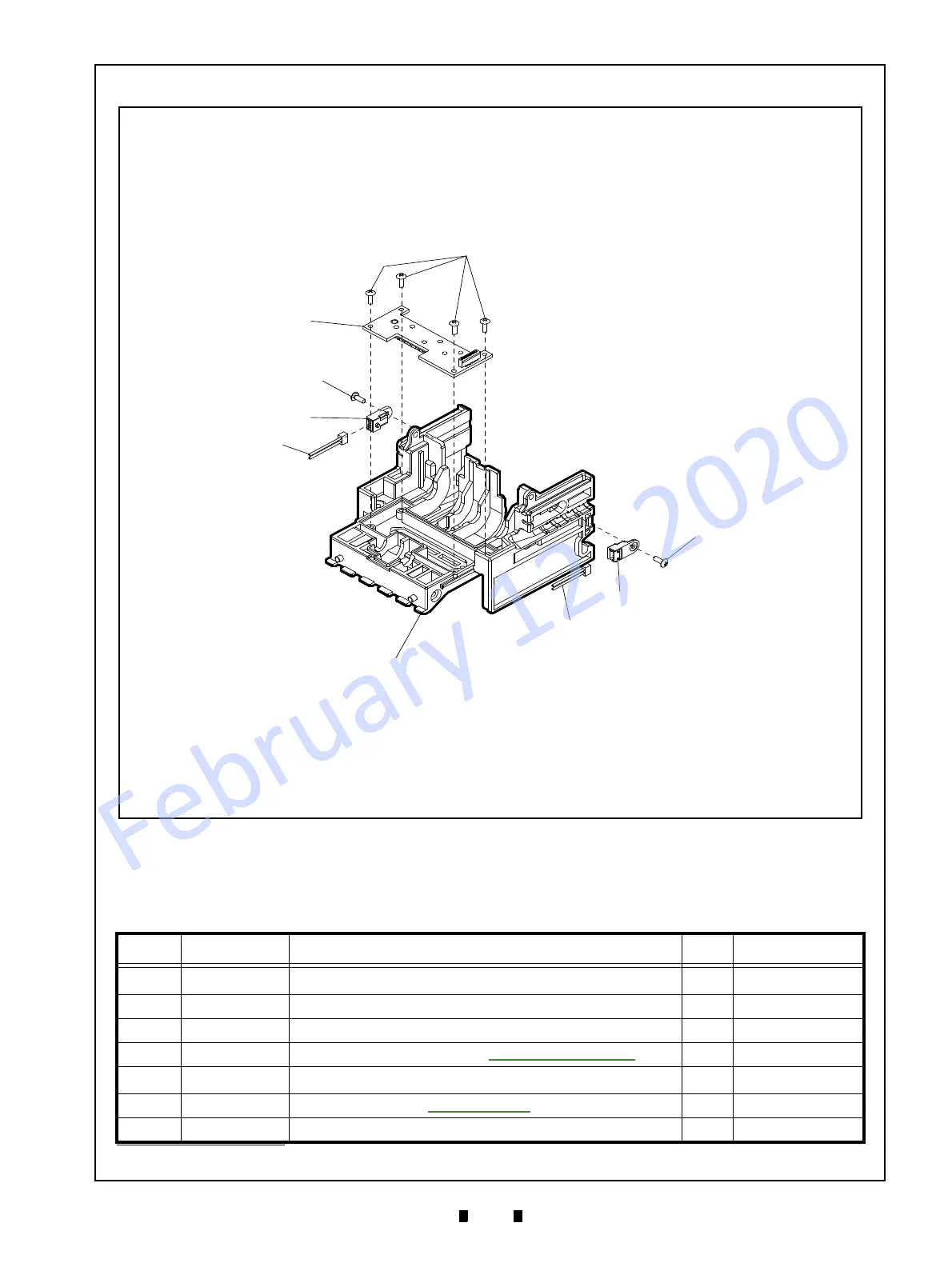

Figure 7-4 DBV-400 Validation Guide Cover Assy. Exploded View
Figure 7-4 DBV-400 Validation Guide Cover Assy. Exploded View
300
301
302
303
304
306
306
305
305
