JCM DBV-400 SD - Main Unit Exploded View 2; Figure 7-3 DBV-400 Main Unit Exploded View 2

P/N 960-000180R_Rev. 1 {EDP #233427}_Feb. 12, 2020 © 2020, JAPAN CASH MACHINE CO., LTD.
7-5
Exploded Views and Parts Lists DBV™ Series DBV-400 Banknote Validator Section 7
DBV-400 Main Unit Exploded View 2

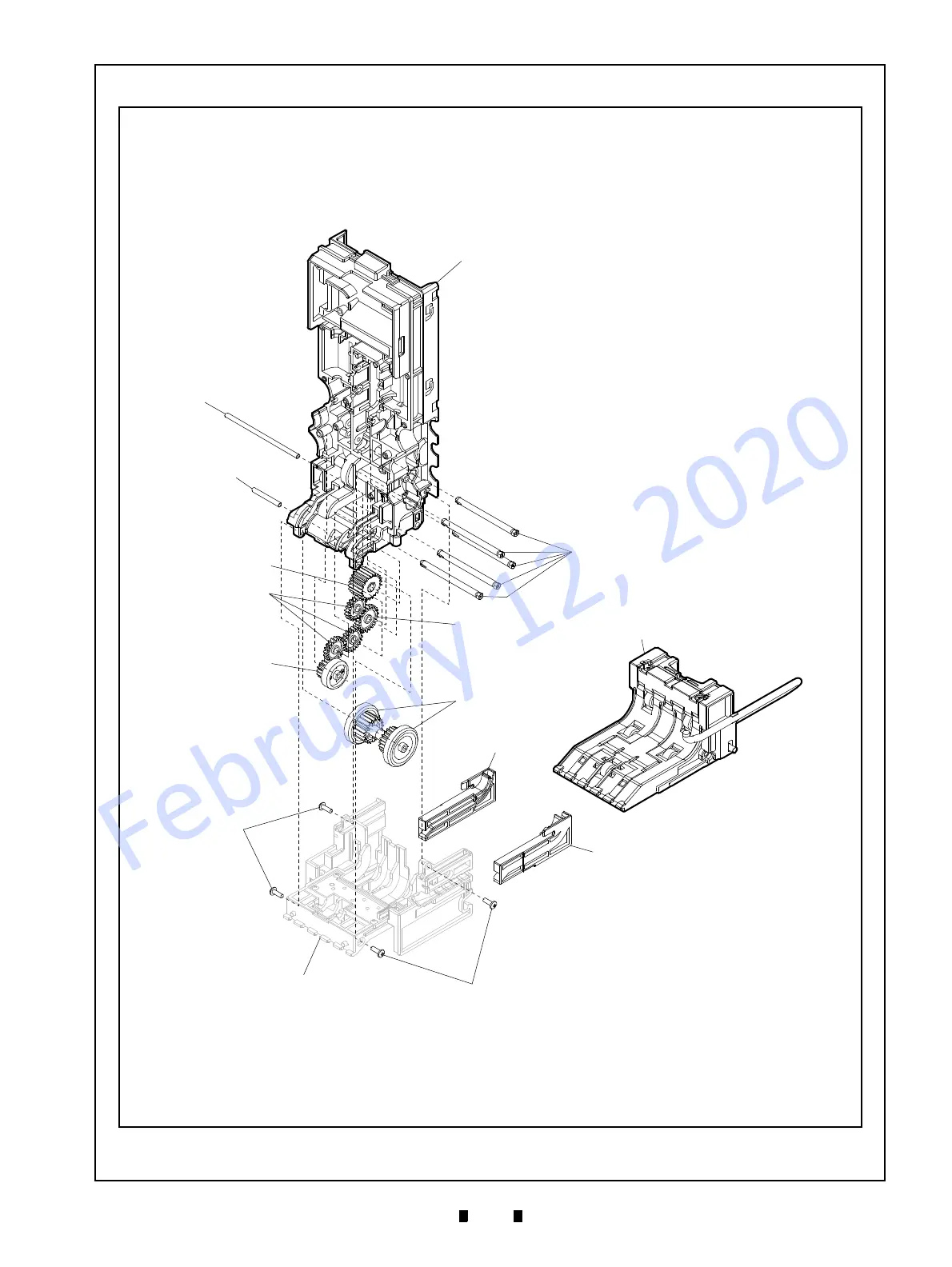

Figure 7-3 DBV-400 Main Unit Exploded View 2
Figure 7-3 DBV-400 Main Unit Exploded View 2
200
201
202
203
204
205
206
207
208
209
210
211
211
212
Valiation Guide Cover Assy.
February 12, 2020
