Installation DBV® Series DBV-400 Banknote Validator Section 2
Operational Flowchart

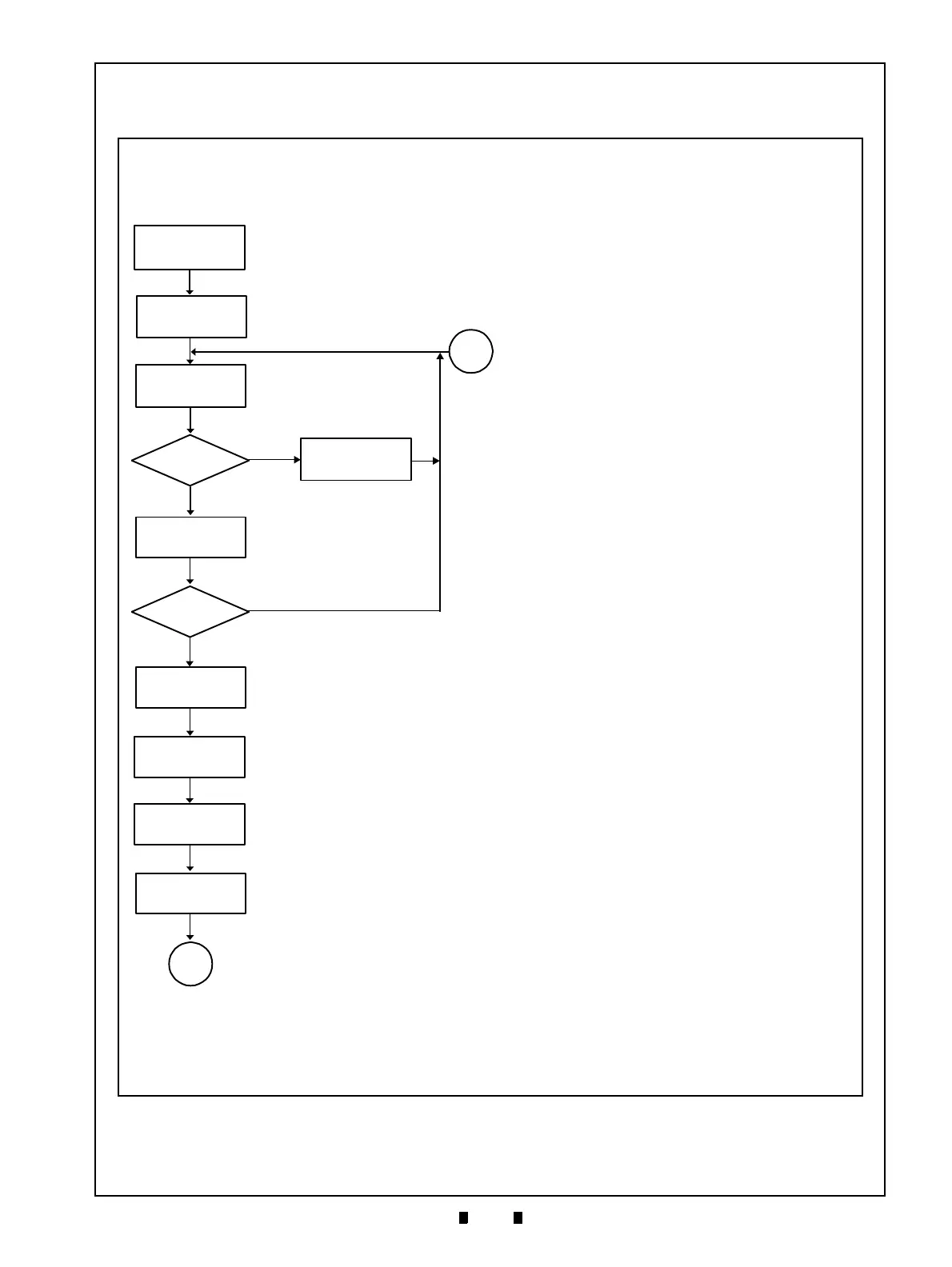

Figure 2-18 depicts a typical DBV-400 Initialization Banknote acceptance flow process.
Figure 2-18 DBV-400 Operational Flowchart (Initializing)
Figure 2-18 DBV-400 Operational Flowchart (Initializing)
b) Initializing
c) Stand-by
d) Enable Acceptance?
f) Bezel LED Display shows Enable Accept
Pattern
g) Inserted Banknote?
h) Take in the Banknote
i) Start Transporting the Banknote
j) Sampling the Banknote Data
k) Stop Transporting the Banknote
A) To “Validation” Flow (Figure 2-19)
C) Return from “Stacking” Flow
(Figure 2-20)
a) Apply Power to the Unit.
e) Bezel LED Display shows No Accept
Pattern
YES
NO
