JCM DBV-400 SD - Sensor and Roller Locations; Figure 2-10 DBV-400 Sensor and Roller Cleaning Locations; Table 2-12 DBV-400 Sensor Type Cleaning Methods

P/N 960-000180R_Rev. 1 {EDP #233427} © 2016, JAPAN CASH MACHINE CO., LTD.
2-12
Section 2 DBV® Series DBV-400 Banknote Validator Installation
Sensor and Roller Locations
Figure 2-10 illustrates the DBV-400 Unit’s various sensor and roller cleaning locations. Table 2-12 lists the
DBV-400 sensor type cleaning methods.
Table 2-12 DBV-400 Sensor Type Cleaning Methods
Sym. Sensor/Roller Type Cleaning Method
a Exit Sensor
Wipe clean using a soft lint-free Micro-fiber Cloth
or vacuum clean using a vacuum cleaner.
b Side Sensor
c Inside Validation Sensor
d Entrance Sensor
e Outside Validation Sensor
f Pusher Home Sensor

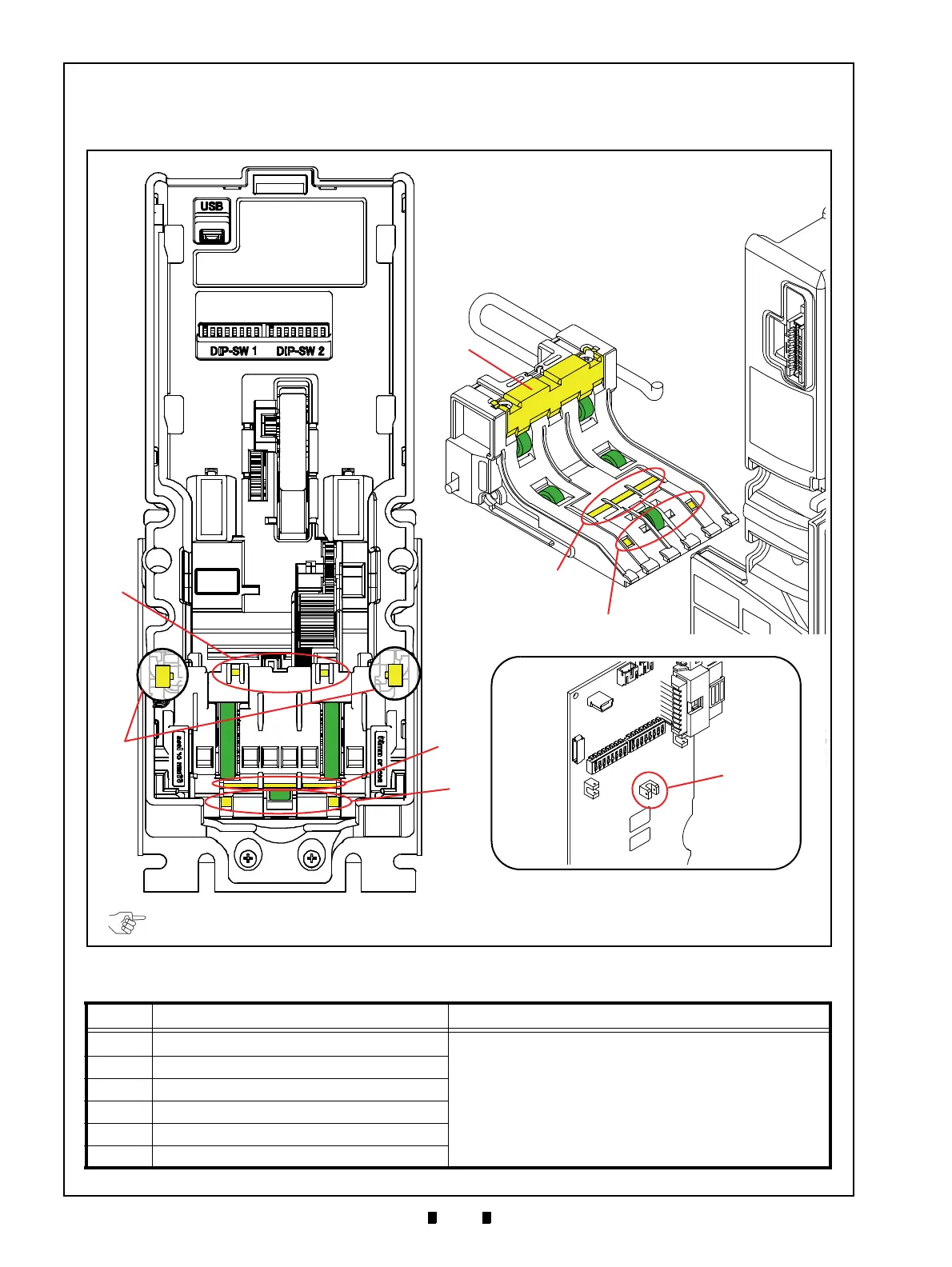

Figure 2-10 DBV-400 Sensor and Roller Cleaning Locations
Figure 2-10 DBV-400 Sensor and Roller Cleaning Locations
a
b
c
d
d
a
NOTE: Clean Rollers using a lint-free slightly damp with water Micro-fiber Cloth.
e
f
CPU Circuit Board
