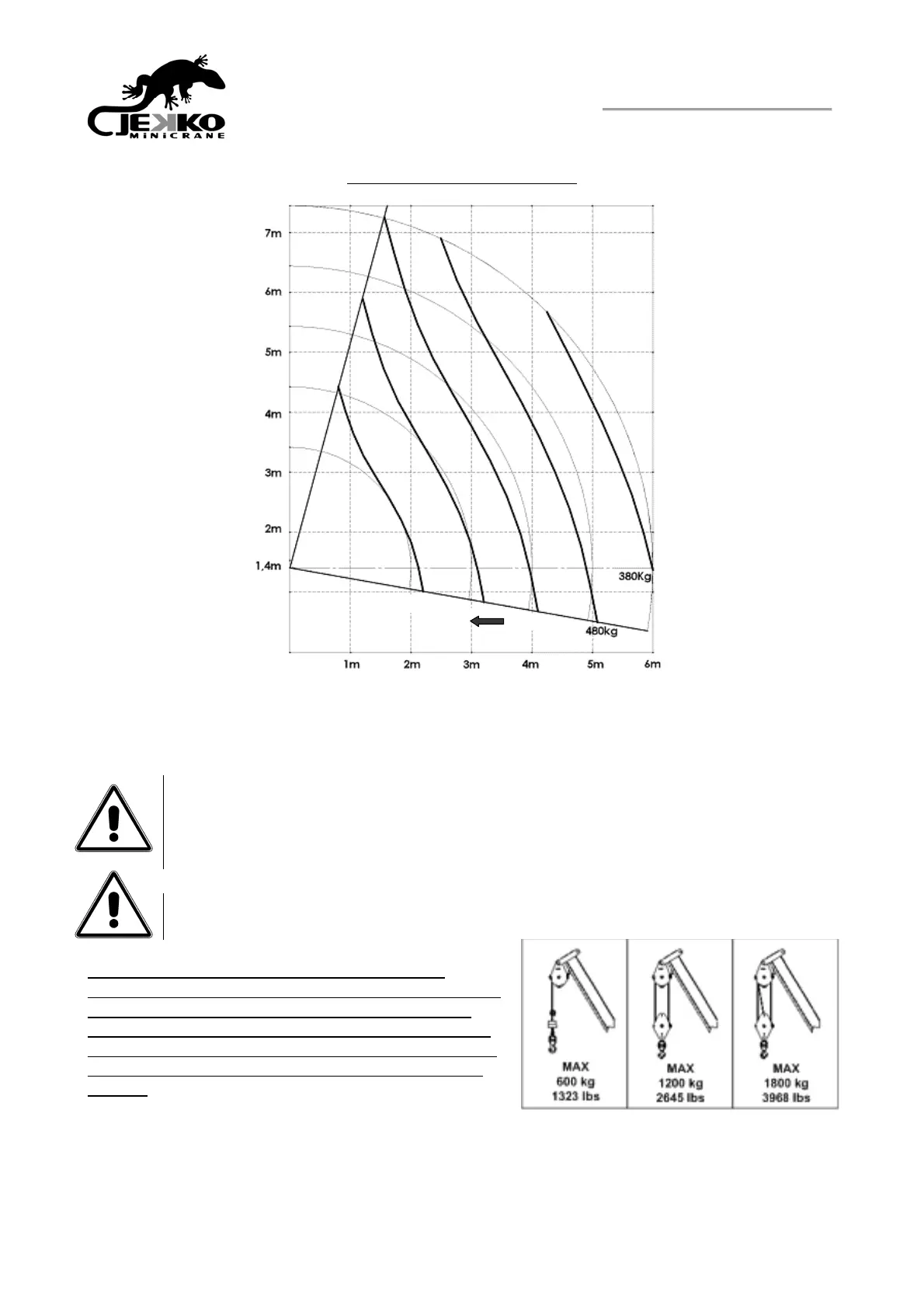

WINCH LOADING DIAGRAM
The winch capacity is of 600 kg (see the winch CE plate).
The load limiting device avoid the machine tilting while using the winch. In any case, the operator
has to make sure not to lift loads exceeding the boom capacity.
Within the 600-kg loading capacity, the boom can lift loads exceeding the
winch capacity thus activating the load limiting device. In order to lift
heavier loads it is necessary to modify the pulley configuration by using a
single, double or triple line pull.
The rope replacement or shortening has to be carried out by specialized
technicians, only.
In order to increase the rope lifting capacity it is
necessary to assemble the hook device as indicated in
the picture and to set the machine by means of the
switchboard. Every machine is equipped with a chart,
as the one indicated in the picture, which indicates the
winch lifting capacity depending on the configuration
chosen.
Kg 600
