3-MACHINE SIGNALS AND
CONTROLS
______________________________________________________________________________________________
3 MACHINE SIGNALS AND CONTROLS

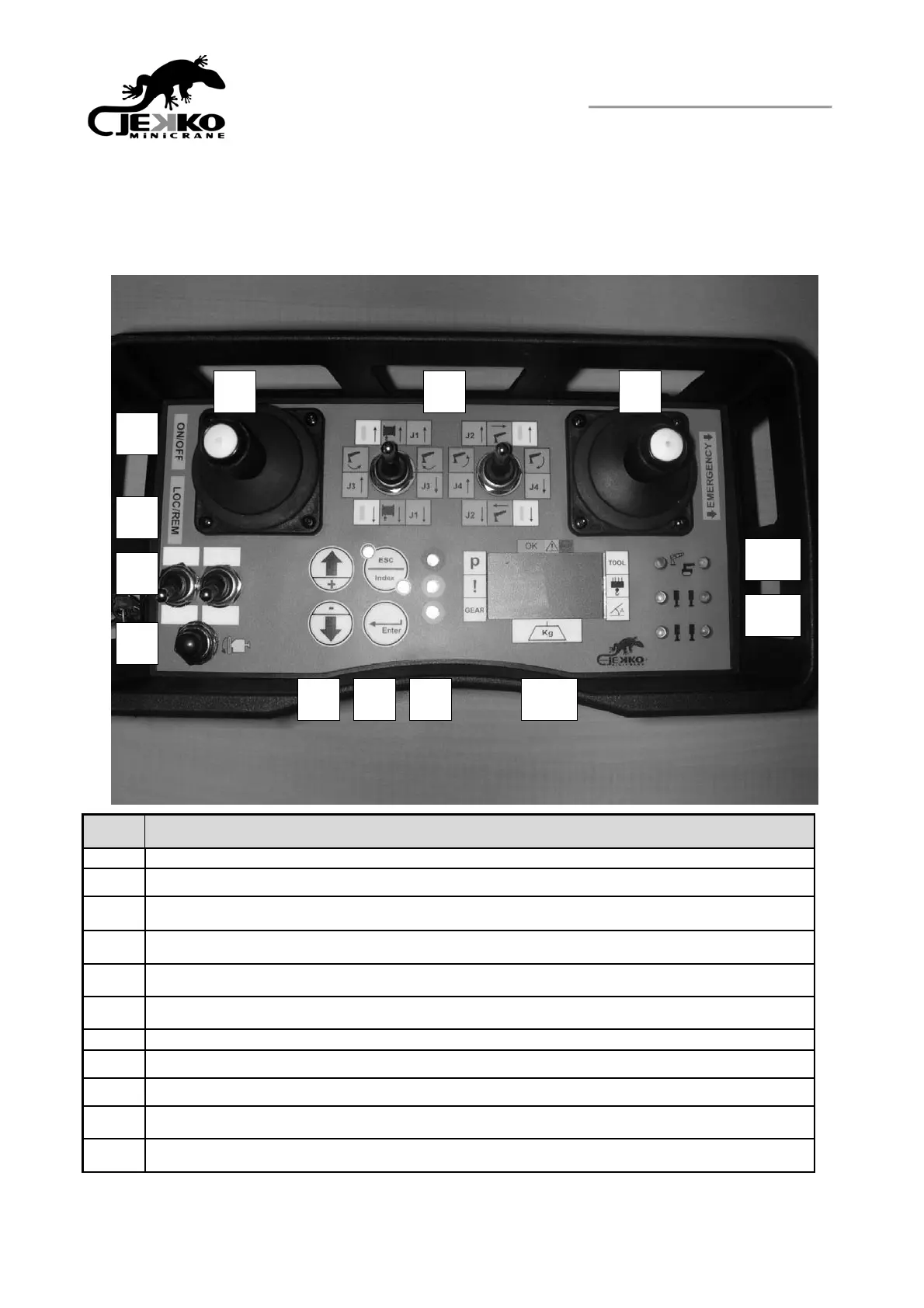

3.1 Main switchboard
Ref. Descrizione
1
Panel on/off key switch
2
Locale/remote key switch
3 A >Switch 24V-3F/400V B > One joystick track movement front and back switch
4
Engine ignition push button and machine start –up
5
Control joystick – activation by pressing on the push button
6
Move key switches for crane (switch UP) /Jib (switch DOWN)
7
Display scroll keys
8
Display ESC/ENTER keys
9
Flashing LEDs
10
Display
11
Signal LEDs for stabilizers
1
2
3
4
5 6
7 8 9 10
11
12
5
A B
