Page 39 of 97
3-MACHINE SIGNALS AND
CONTROLS
______________________________________________________________________________________________
12

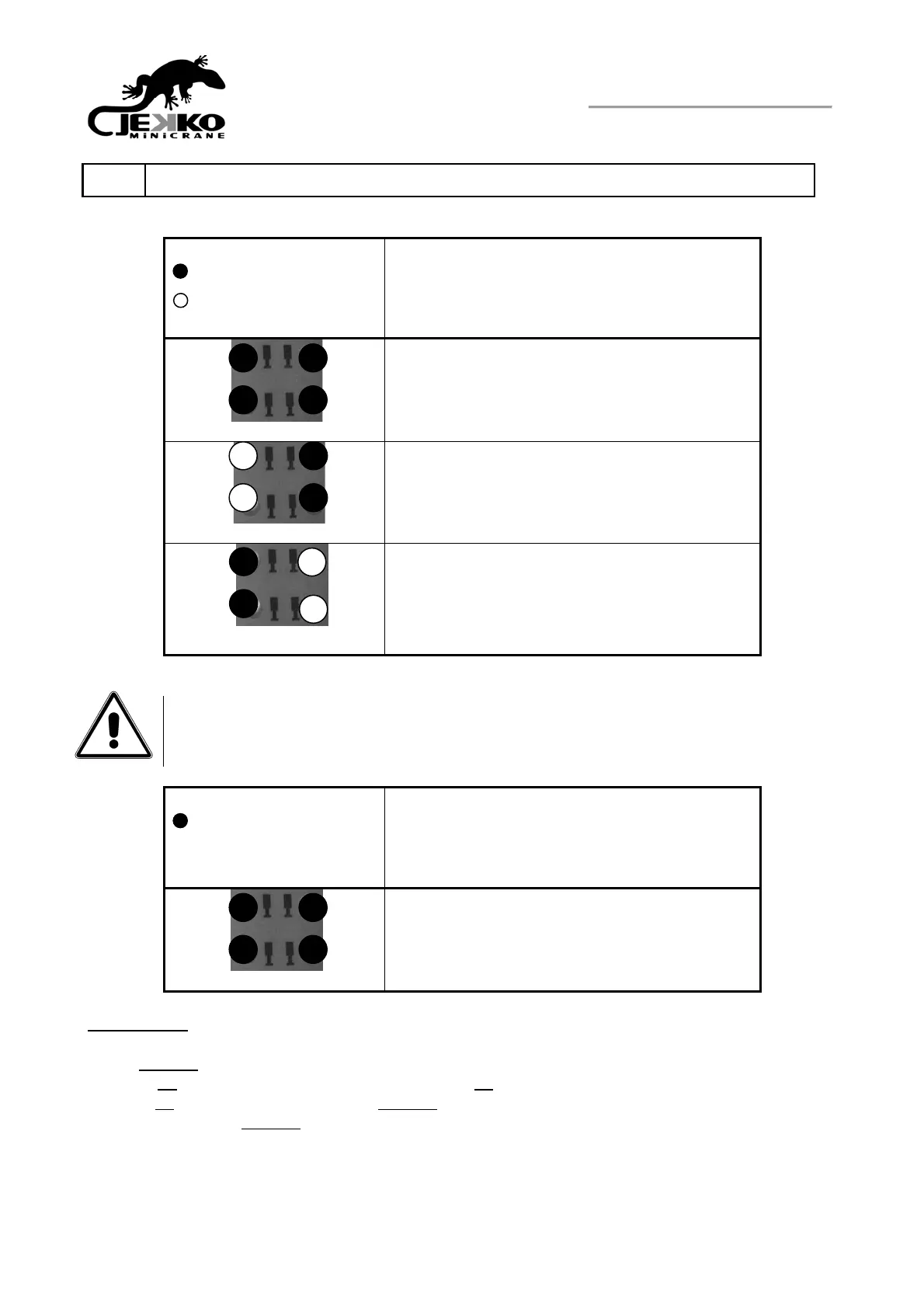

Signal LED for crane/truck activation
LIT LED
FLASHING LED
OPERATING WORK SECTOR SPD265
From rear left stabilizer to rear right stabilizer 220°
From front left stabilizer to rear right stabilizer
From front right stabilizer to rear left stabilizer
CAUTION!!!
Whatever other combination not indicated in the table above won’t allow the crane functioning.
It will only be possible to move the truck and the stabilizers.
LIT LED
OPERATING WORK SECTOR SPD360-500
360° continuous rotation
On SPD500 the led flash if the outrigger isn’t
opened correctly 45°
Flashing led
Red > flashing
when warning or alarm are activated
Yellow > on
when anticollision system is activated, off when anticollision system is deactivated
Green > on
when maintenance is OK, flashing when maintenance is due
Red-yellow-green > flashing
when by-pass is activated
