Page 46 of 97
3-MACHINE SIGNALS AND
CONTROLS
______________________________________________________________________________________________

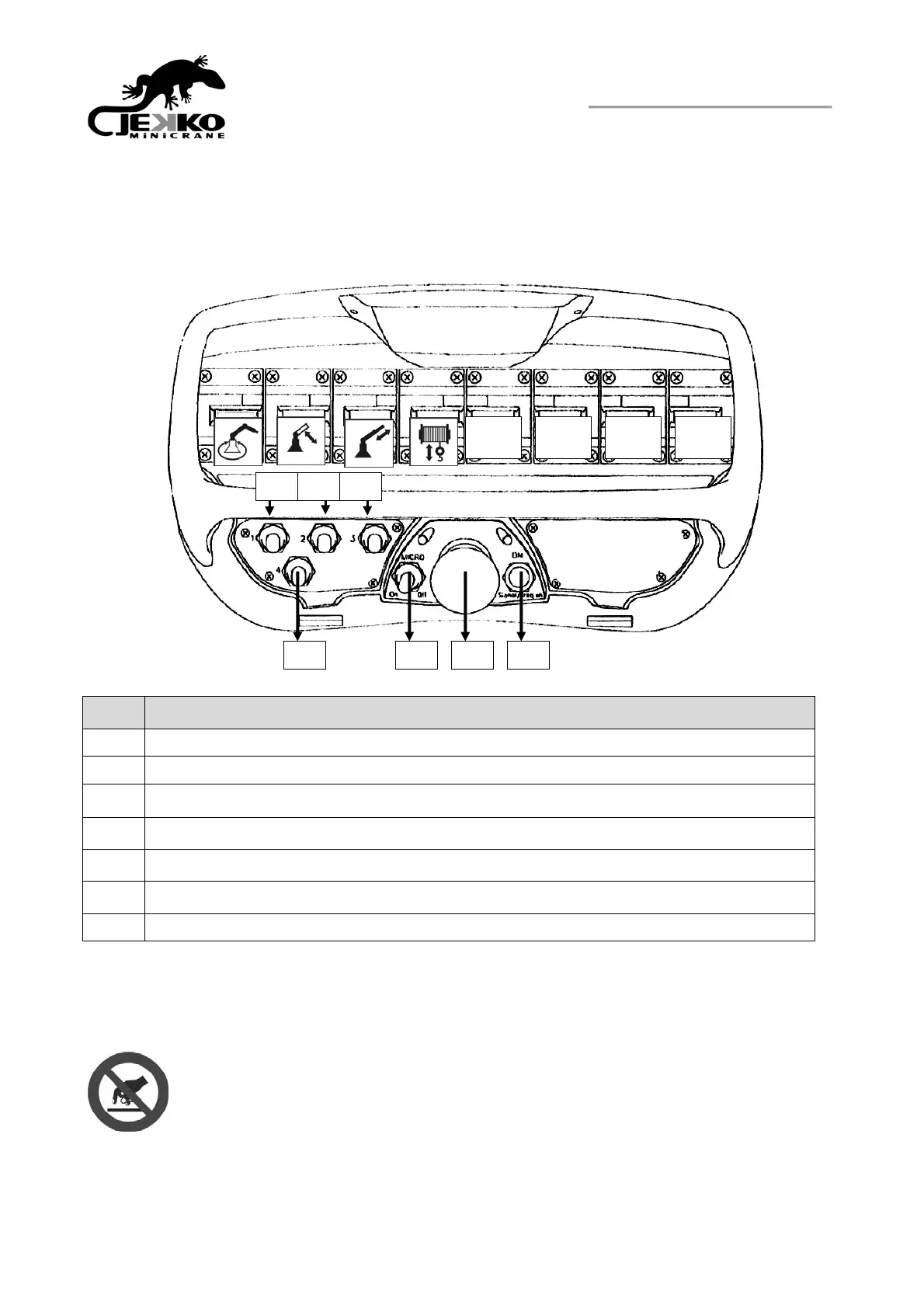

3.2 Radio remote control
Ref.
Description
1
ON activation of the radio remote control and frequency change during operation
2
Emergency push button
3
Optional
4
Adjustment of the crane working speed SLOW/FAST
5
Adjustment of the engine rpm MIN/AUTOMATIC/MAX
6
Engine start/stop
7
Crane By-pass < > 2° speed winch ( only SPD360CDH )
3.3 Main electrical cabinet
The electrical cabinet contains the components of the machine feeding system as well as a PLC
system controlling the machine running.
CAUTION!!!
Access to the electrical cabinet is allowed to authorize personnel, only.
Tampering with the electrical cabinet will nullify the warranty conditions.
14 23
J1 J2 J3 J4
