4– USE OF THE MACHINE IN
REGULAR WORKING CONDITIONS
______________________________________________________________________________________________

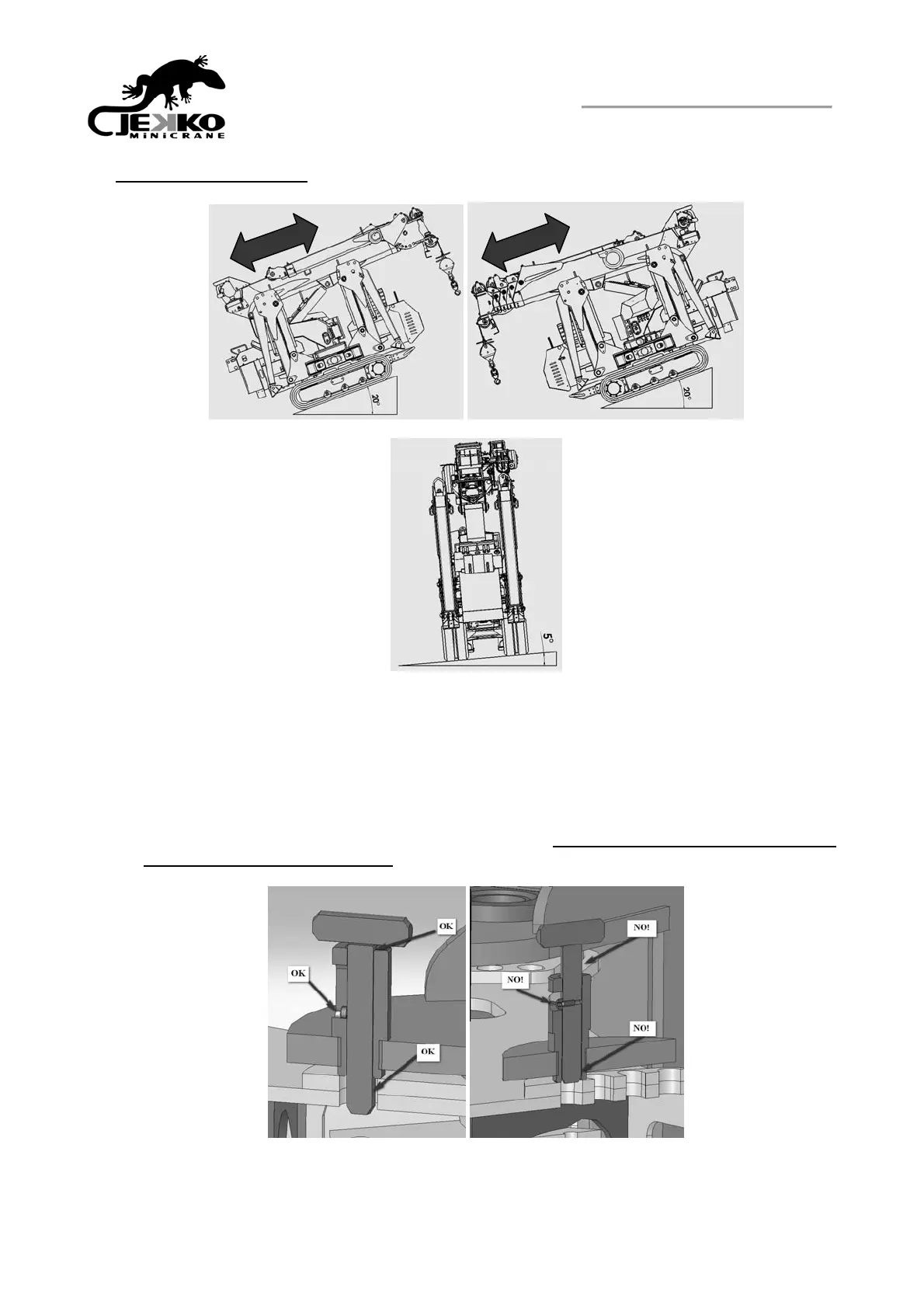

MAX SLOPE GRADIENT:
o Extend the stabilizers depending on the configuration chosen and fix them with the
appropriate locks. The fixing is obtained by inserting the pin into one of five possible holes
and rotating the same so that the safety screw is fully in place anti-slip inserts. Before each
operation lifting this attachment must be controlled by the operator. A stabilizer perfectly
locked (locking pin inserted as shown below) can not rotate. Position the chocks and lower
the stabilizers using the hydraulic levers aboard the machine, lift the machine from the
ground ( max 100 mm-0.32ft )and make sure that the stabilizers rest on the centre of the
pads and that the tracks don’t touch the ground. PADS MUST BE POSITIONED AS
HORRIZONTAL AS POSSIBLE .
