12 – TOOLS
______________________________________________________________________________________________

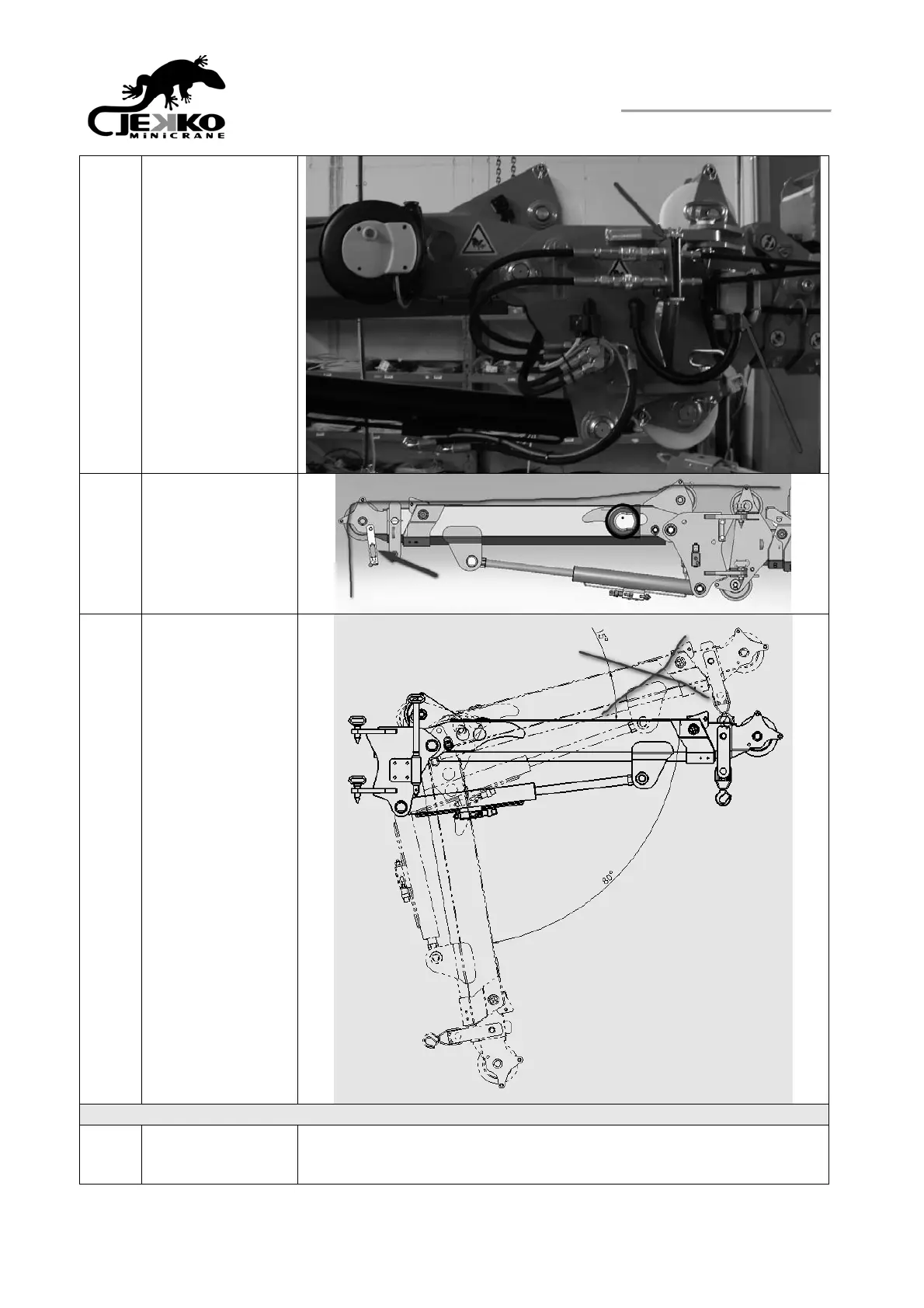

6 Turn jib and lock it
with other two left
pins.
Remove the plate
with hydraulic and
electric pipe and
set it in front jib.
Make electrical
and hydraulic
connection like in
the picture
7 Set the rope
inside the pulley
and apply weight
and hook,
disconnect rope
micro switch and
put it on jib head.
8 Attention with
rope the
possibility to lift up
over 15° is
automatically
locked
INSTALLATION: USE WITH HOO
K
1 On the
switchboard, set
the presence of
